HJL36150M74 - Square D PowerPact H 150A 3P 600V Molded Case Circuit Breaker, Motor Circuit Protector, J Frame, Magnetic Trip, UL/CE/CCC

Save $907.14
SKU: HJL36150M74-New
Condition: New
Price:
$1,161.86 $2,069.00
Stock:
53 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

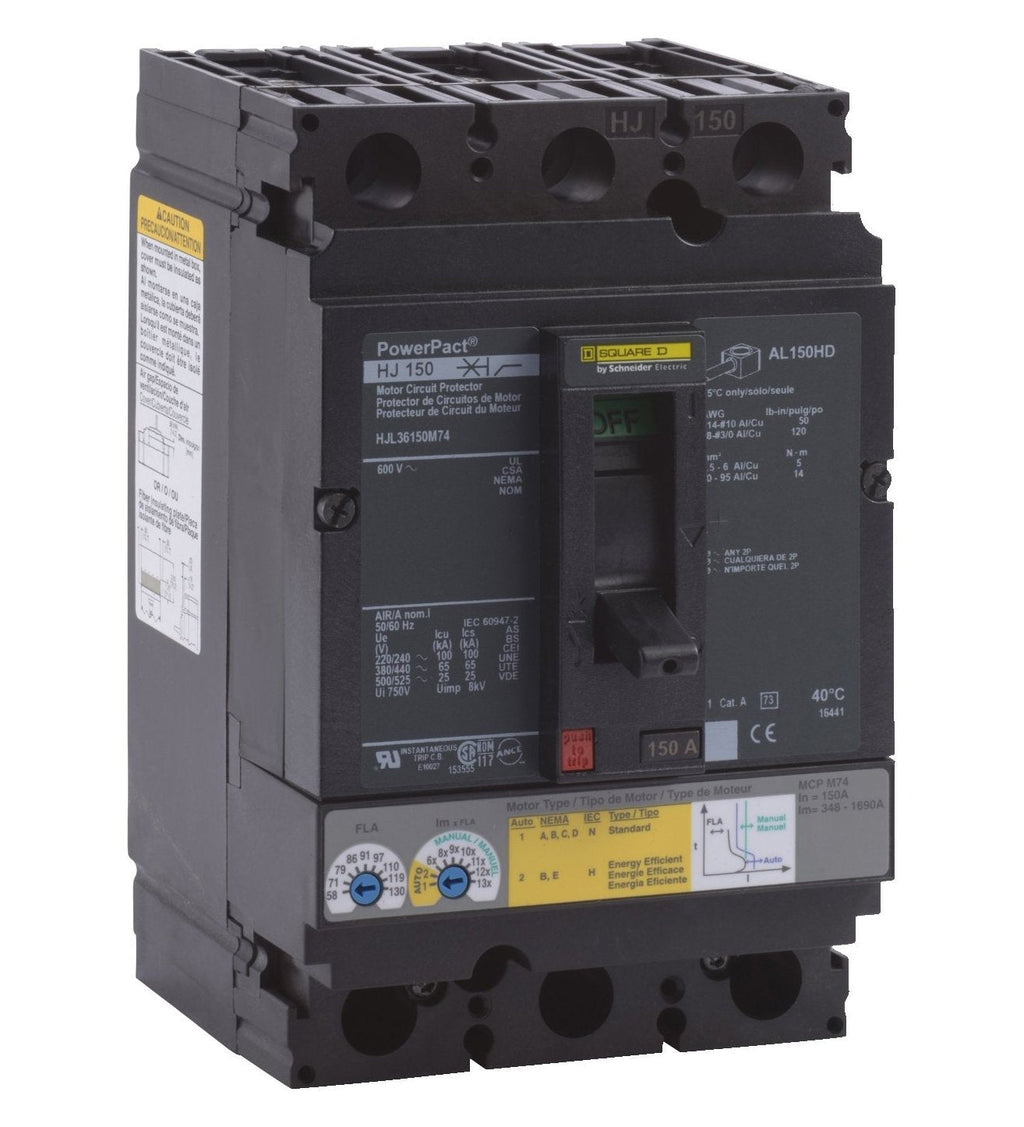

HJL36150M74 - Square D/ Schneider Electric Feed-Thru 150 Amp 3 Pole Circuit Breaker - Essential Electric Supply

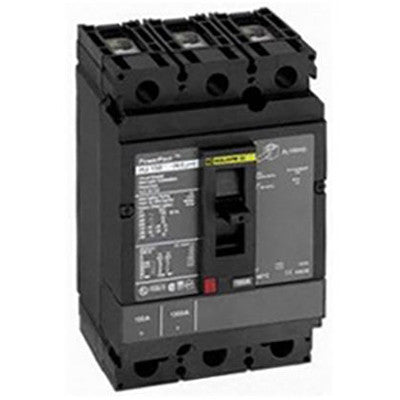

HJL36150M74 - Square D Feed-Thru 600V 150A 3 pole circuit breaker 65kA@480V - Essential Electric Supply

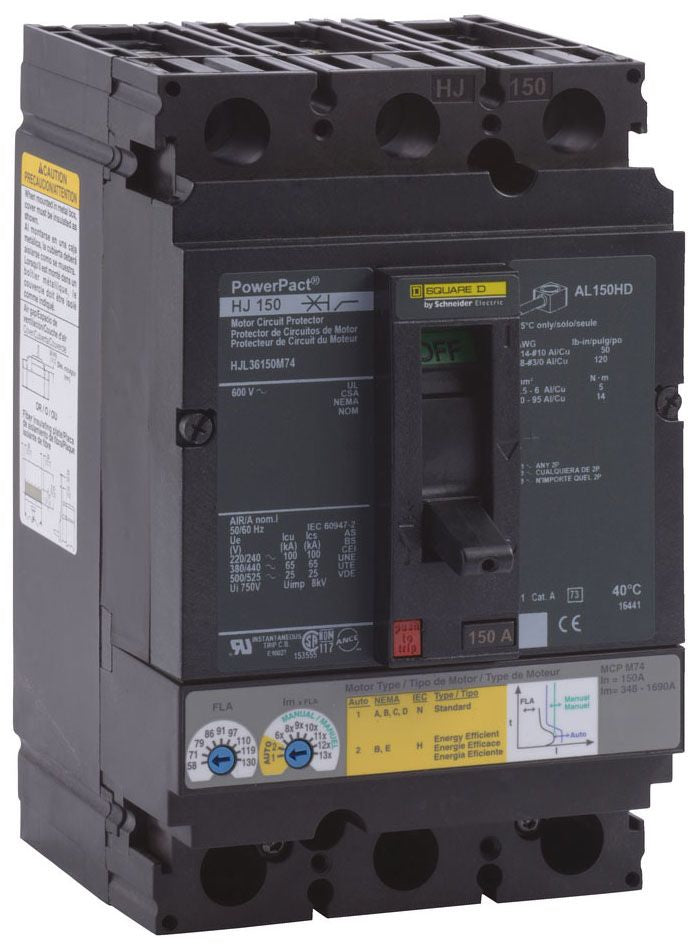

HJL36150M74 - Square D PowerPact H 150A 3P 600V Molded Case Circuit Breaker, Motor Circuit Protector, J Frame, Magnetic Trip, UL/CE/CCC - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HJL36150M74 - Square D/ Schneider Electric Feed-Thru 150 Amp 3 Pole Circuit Breaker - Essential Electric Supply
HJL36150M74 - Square D Feed-Thru 600V 150A 3 pole circuit breaker 65kA@480V - Essential Electric Supply
HJL36150M74 - Square D PowerPact H 150A 3P 600V Molded Case Circuit Breaker, Motor Circuit Protector, J Frame, Magnetic Trip, UL/CE/CCC - Essential Electric Supply

Description

HJL36150M74


HJL36150M74 is a Square D PowerPact H series, 3-pole, 150A molded case circuit breaker designed for motor circuit protection in demanding industrial applications.

This unit features a magnetic-only trip unit for instantaneous protection, is rated for 600V AC systems, and is suitable for unit mounting. It offers a high interrupt rating, robust construction, and is certified for use in a variety of environments.

Key Specifications

  • Amperage: 150A
  • Voltage: 600V AC
  • Poles: 3P
  • Mounting Type: Unit mount
  • Interrupt Rating: 65 kA at 480V AC, 25 kA at 600V AC, 100 kA at 240V AC
  • Series/Frame: PowerPact H, J Frame
  • Trip Unit: Magnetic only (MCP), no thermal trip
  • Certifications: UL, UR, CE, CCC
  • Terminal Type: Line and load lugs
  • Wire Range: AWG 14 to 3/0 (aluminum/copper)
  • Dimensions: 4.12" W x 4.36" D x 6.4" H
  • Magnetic Trip Range: 348–1690A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: HJL36150M74
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HJL
  • Voltage : 600
  • Amperage : 150
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Feed-Thru
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : J
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
  • Breaker Type : Motor Circuit Protector
  • Protection : Magnetic Only

Product Data

  • UPC : 785901486602
  • GTIN : 00785901486602
  • Country of Origin : United States
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 4.32
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal

Accesories

Part Manufacture Sub Category
S29371
S29451
S29450
S29392
S29393
S29405
