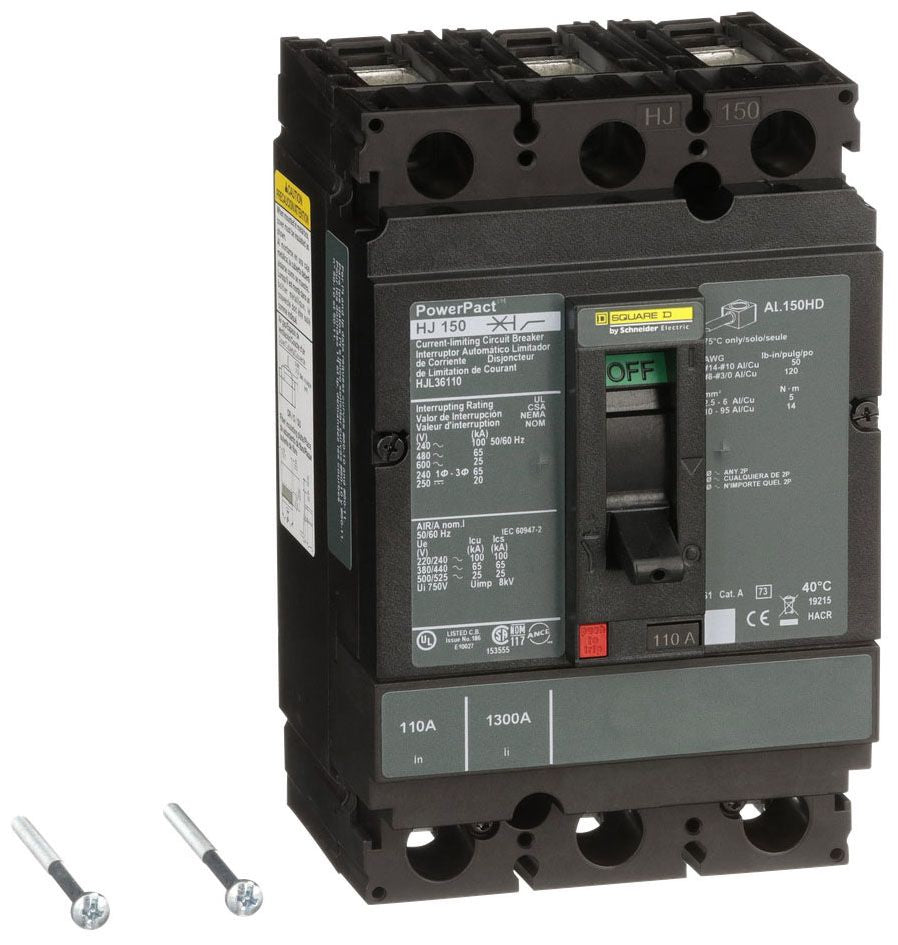

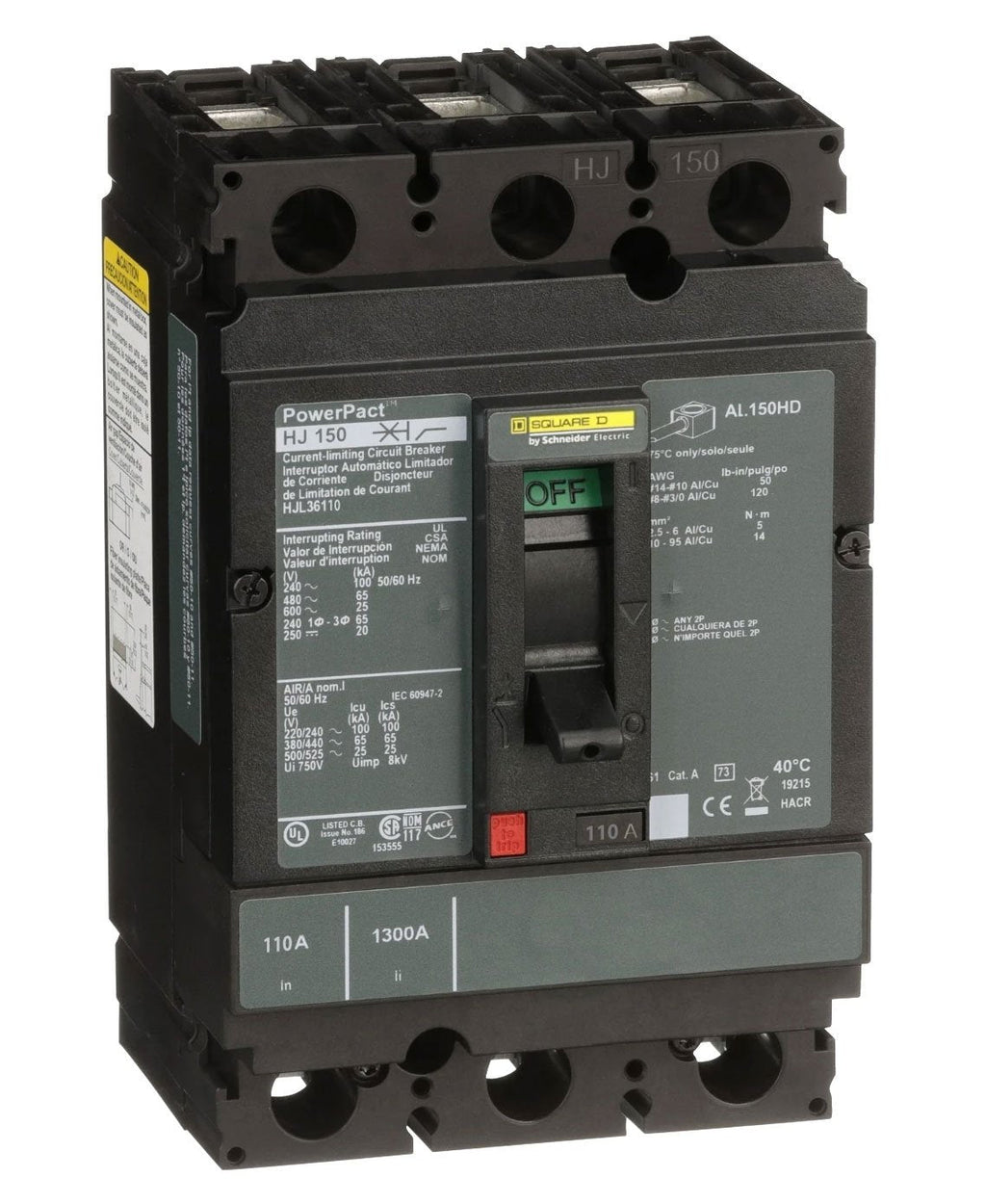

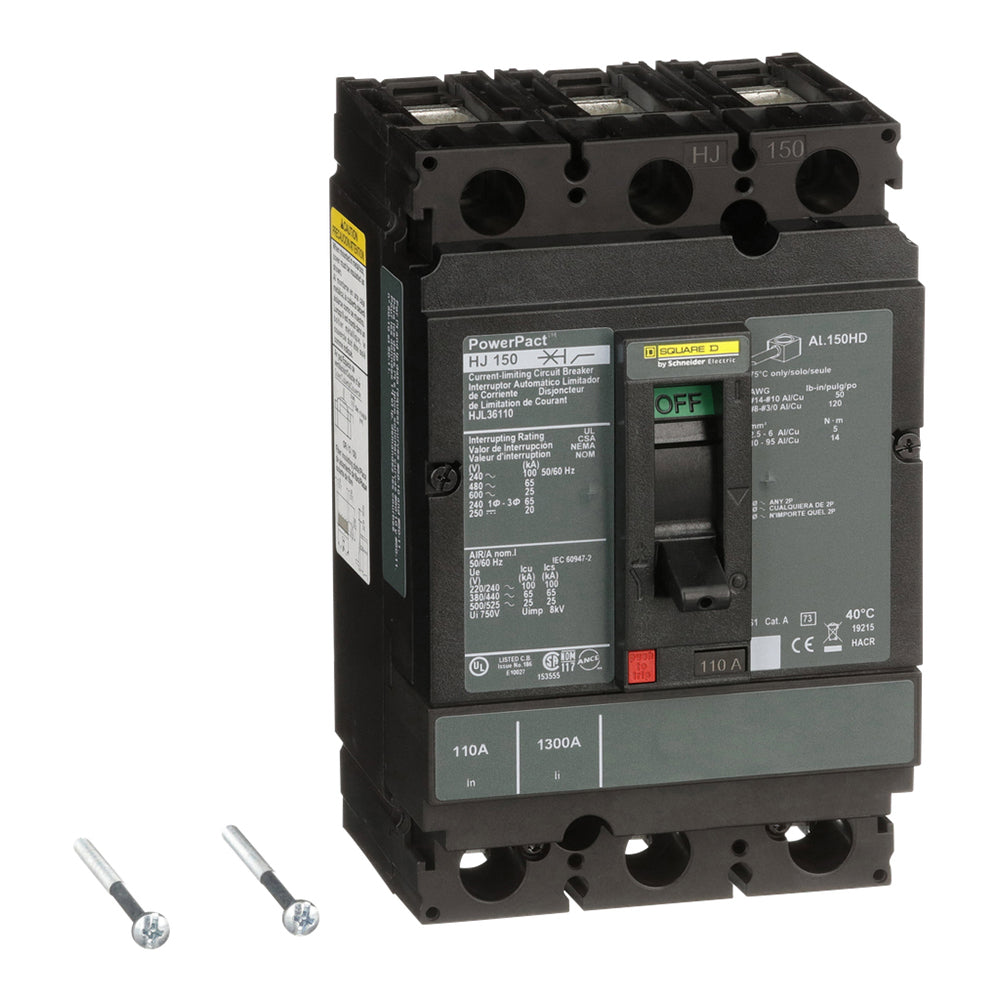

HJL36110 - Square D 110 Amp 600 Volt 3 Pole Thermal Magnetic Circuit Breaker, HJL Frame

HJL36110

HJL36110 is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 110 amps and 600 volts AC. It features a unit mount design and HJL frame type.This circuit breaker provides current limiting protection with long-time and instantaneous trip functions. It has a feed-thru connection type with line and load side lug terminals. The interrupting ratings are 100kA at 240 VAC, 65kA at 480 VAC, 25kA at 600 VAC, and 20kA at 250 VDC. It is UL, CSA, CE, and IEC certified and suitable for reverse fed applications.

Key Specifications
• Amperage: 110 A
• Voltage: 600 V AC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupting Rating: 100kA @ 240V AC, 65kA @ 480V AC, 25kA @ 600V AC, 20kA @ 250V DC
• Frame Type: HJL
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Connection Type: Feed-Thru
• Terminal Connection: Line and Load Side Lug
• Certifications: UL, CSA, CE, IEC
• Current Limiting: Yes
• Suitable for Reverse Fed Applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901623229
• GTIN : 00785901623229
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.169
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
