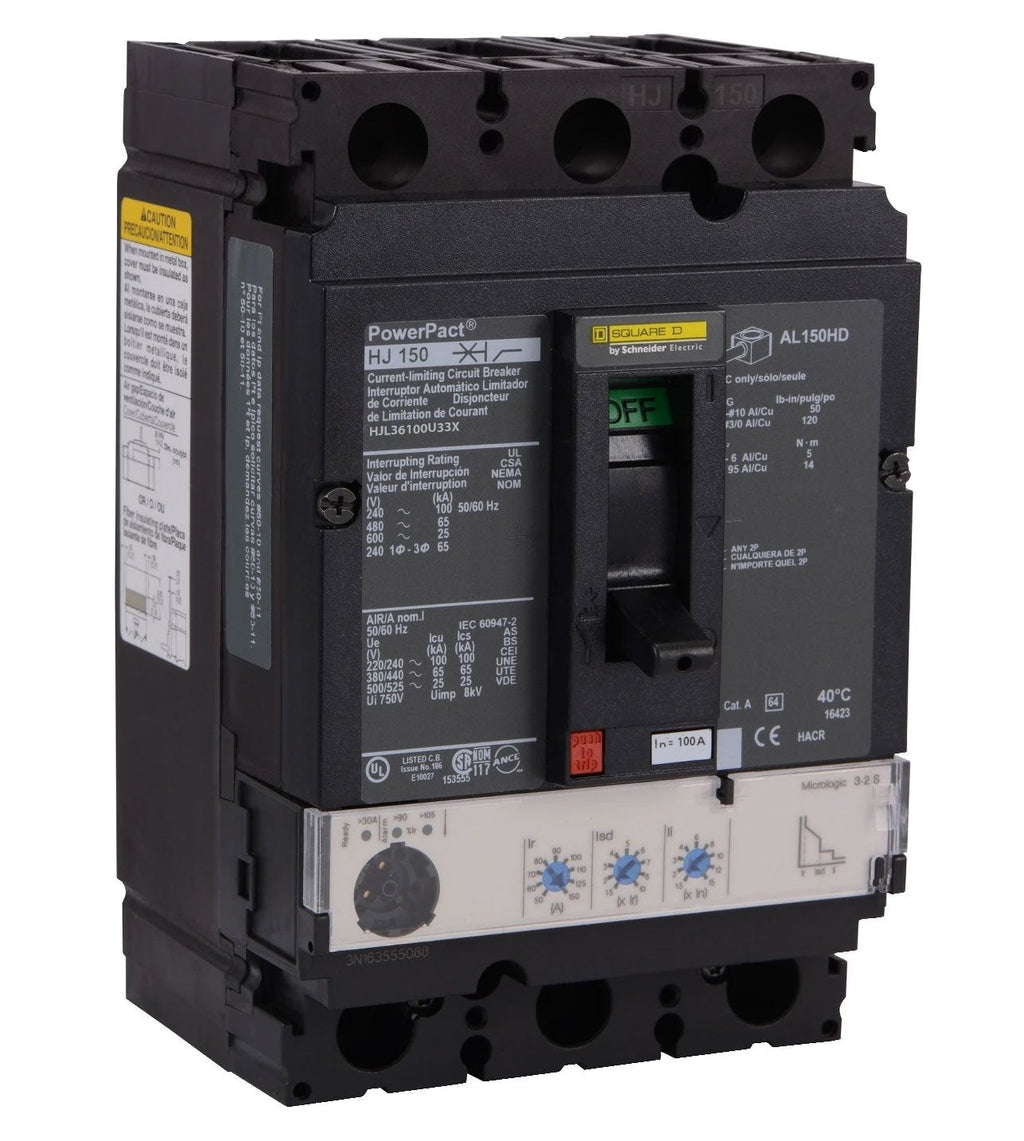

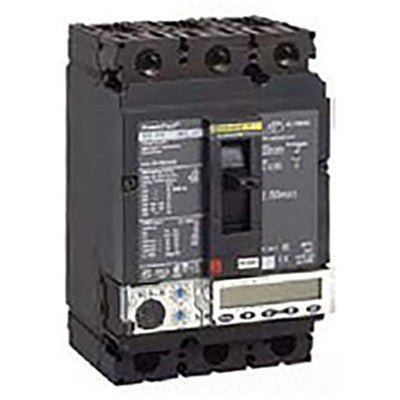

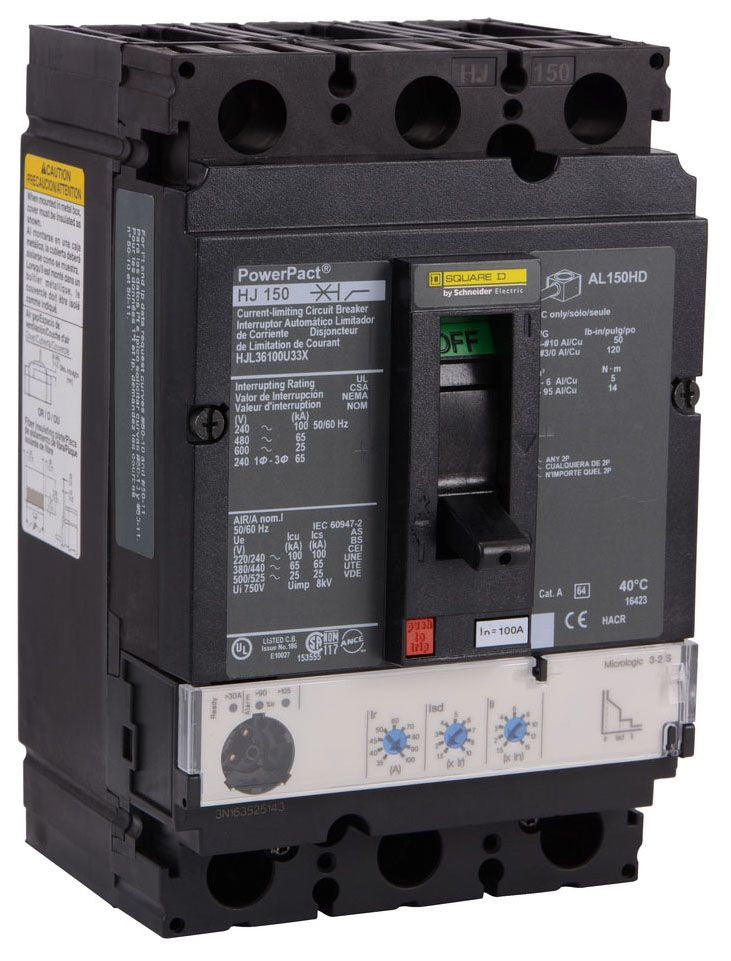

HJL36100U33X - Square D Powerpact HJL 3 Pole 100A 600V Molded Case Circuit Breaker, MicroLogic 3.2 S, LSI, Current Limiting, Bolt-On Mount

HJL36100U33X

HJL36100U33X is a 3 pole, 100A, 600V molded case circuit breaker from Square D's Powerpact HJL series, featuring MicroLogic 3.2 S electronic trip unit with LSI (Long-Time, Short-Time, Instantaneous) protection and current limiting design for reliable circuit protection in industrial and commercial applications. This breaker is designed for bolt-on mounting and offers feed-thru connections, making it suitable for a wide range of panel configurations. It features solid-state electronic trip technology, high interrupt ratings, and is UL listed for safety and compliance.

• Part Number: HJL36100U33X
• Manufacturer: Square D
• Series/Frame: Powerpact HJL
• Amperage: 100A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA @ 600V, 65kA @ 480V, 100kA @ 240V
• Connection: Feed-Thru
• Protection: LSI (Long-Time, Short-Time, Instantaneous)
• Tripping Mechanism: Electronic, MicroLogic 3.2 S
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36100U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901852476
• GTIN : 00785901852476
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
