HJL36060U31X - Square D PowerPact H 60A 600V 3-Pole Molded Case Circuit Breaker with Micrologic 3.2 Trip Unit

HJL36060U31X

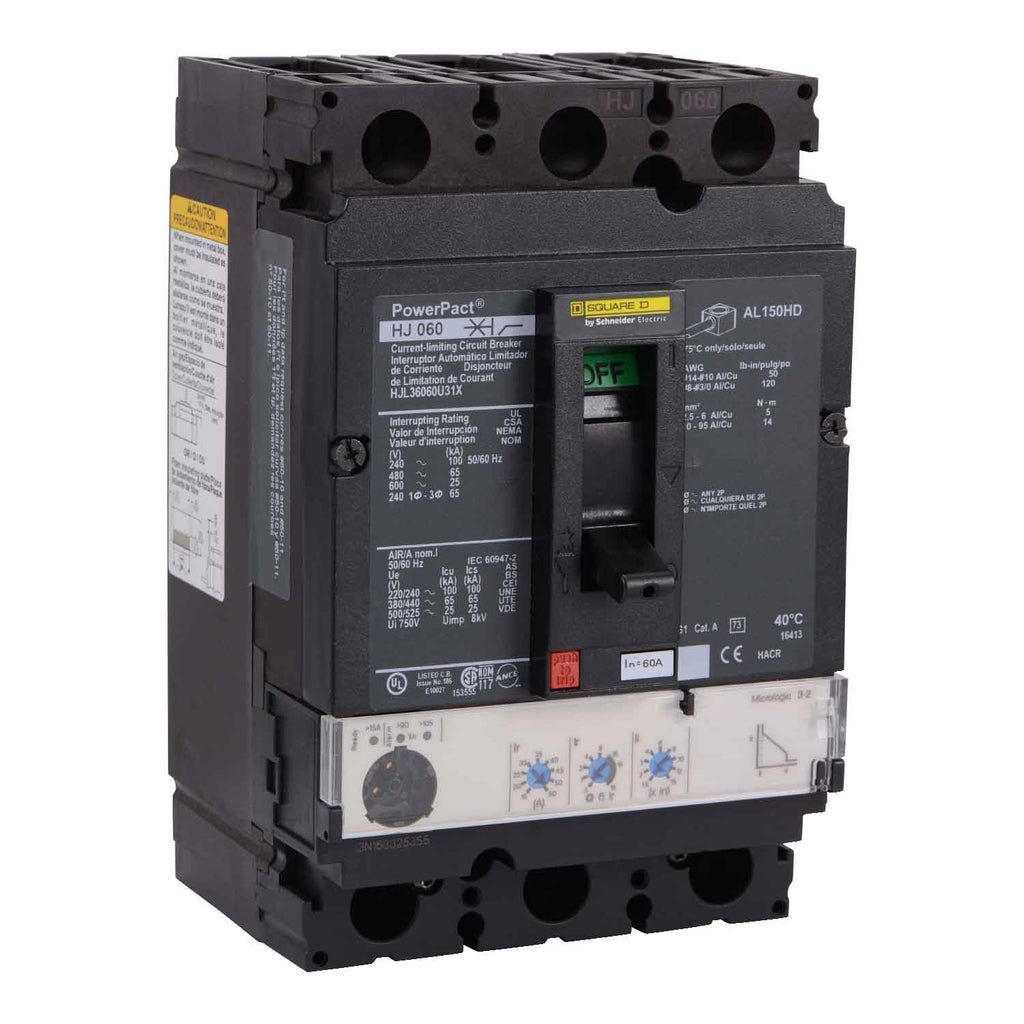

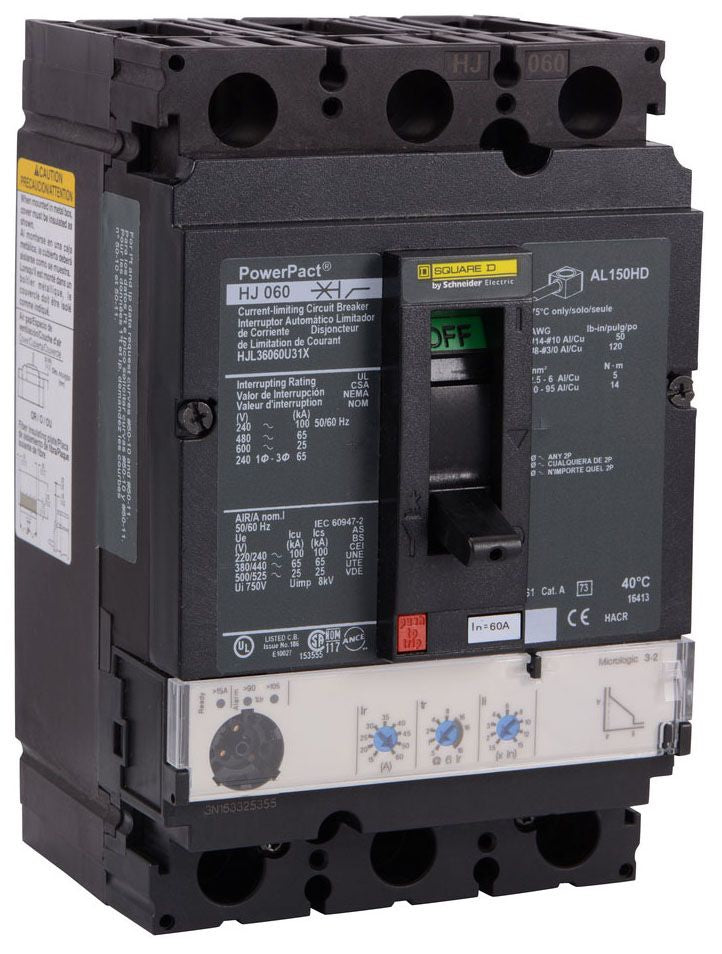

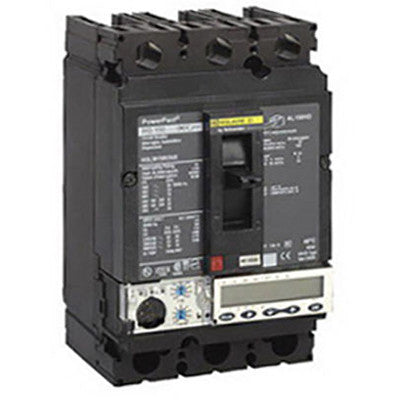

HJL36060U31X is a Square D PowerPact H-frame molded case circuit breaker rated for 60 amps, 600 volts AC, and 3 poles with a Micrologic 3.2 electronic trip unit.This circuit breaker features a 3-pole configuration with a 60 amp line rated current and a maximum operational voltage of 600 VAC. It has a J interrupt rating code with breaking capacities of 100 kA at 240 V, 65 kA at 480 V, and 25 kA at 600 V. The breaker is unit mount with lug-type electrical connections for both line and load. It includes long-time and instantaneous trip functions with current limiting technology and is UL 489 listed, CSA, IEC, CE, and CCC certified.

• Manufacturer: Square D (Schneider Electric)
• Series/Frame: PowerPact H
• Amperage: 60 A
• Voltage Rating: 600 V AC
• Number of Poles: 3
• Interrupt Rating: 100 kA @ 240 V, 65 kA @ 480 V, 25 kA @ 600 V
• Trip Unit: Electronic Micrologic 3.2, LI (Long-Time and Instantaneous)
• Mounting Type: Unit mount
• Electrical Connection: Line and load side lugs
• Wire Gauge: AWG 14 to 3/0 aluminum/copper
• Certifications: UL 489, CSA, IEC, CE, CCC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36060U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901722892
• GTIN : 00785901722892
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.8
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
