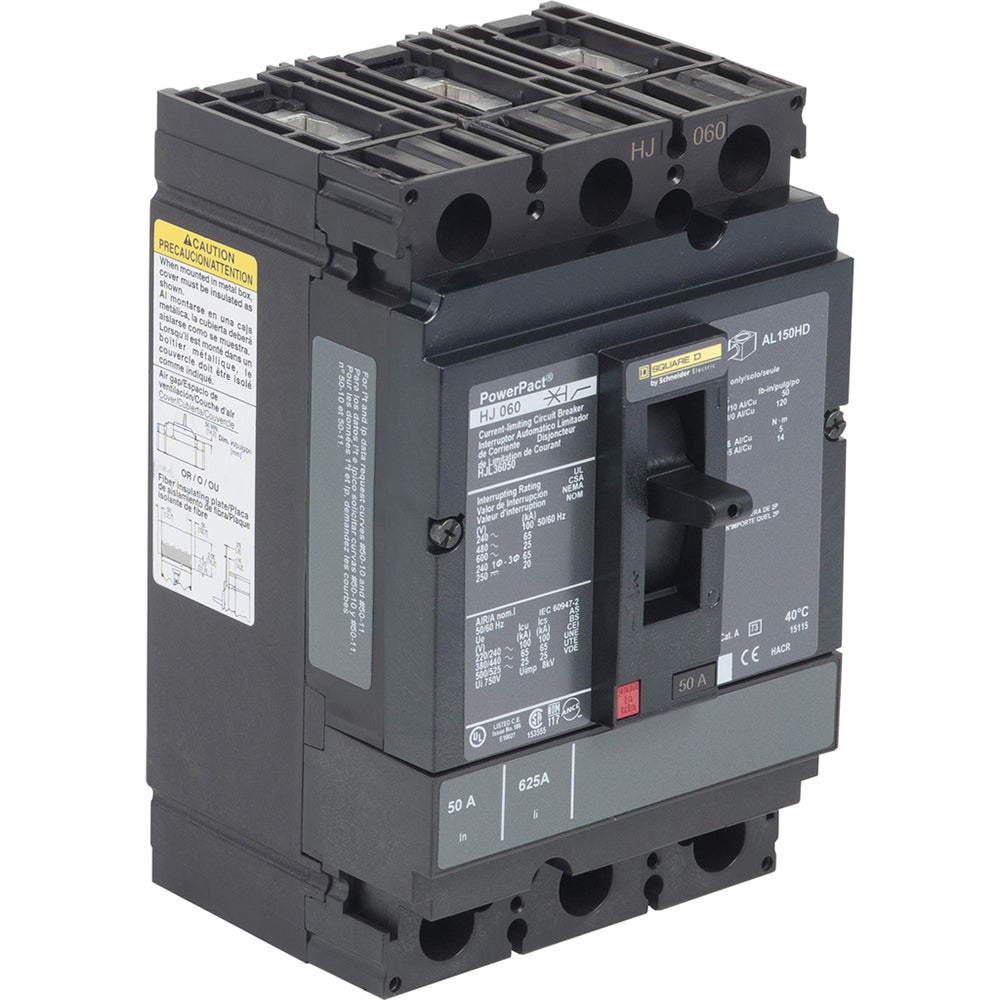

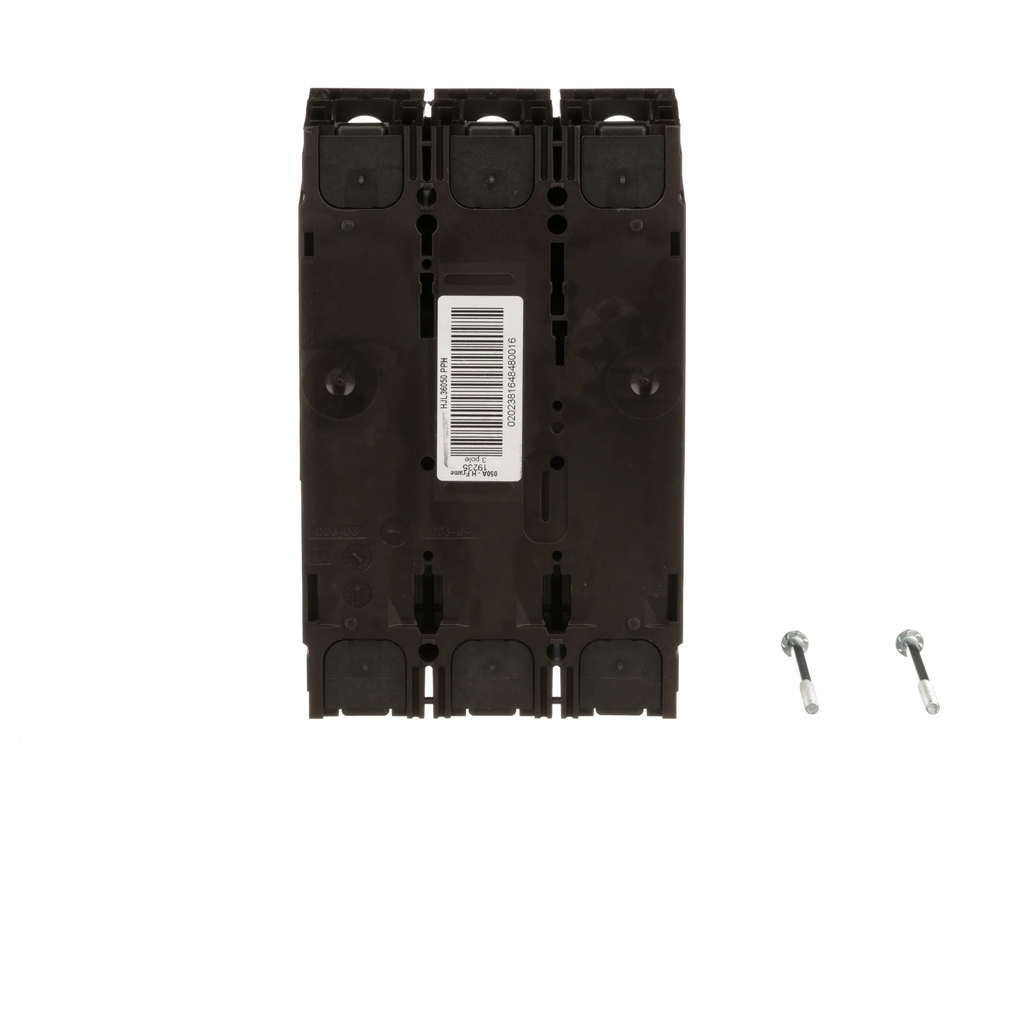

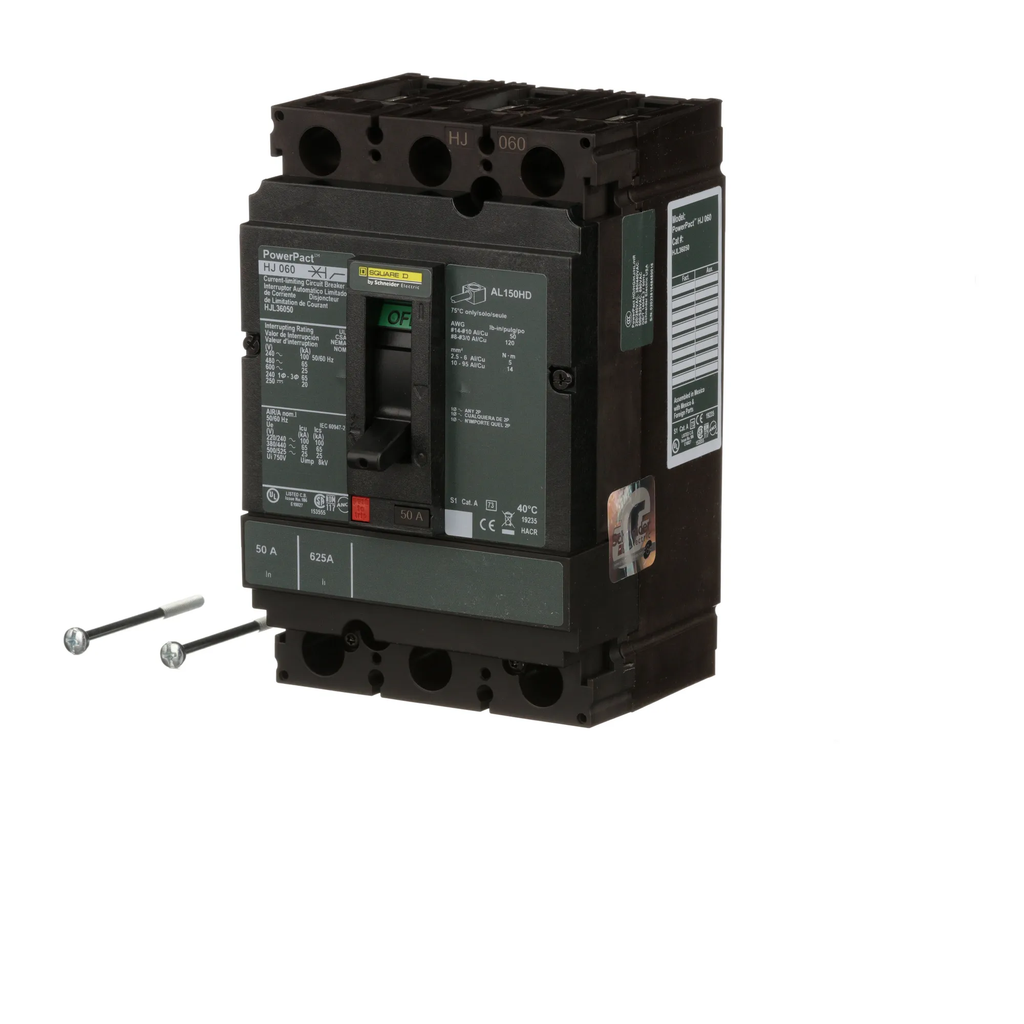

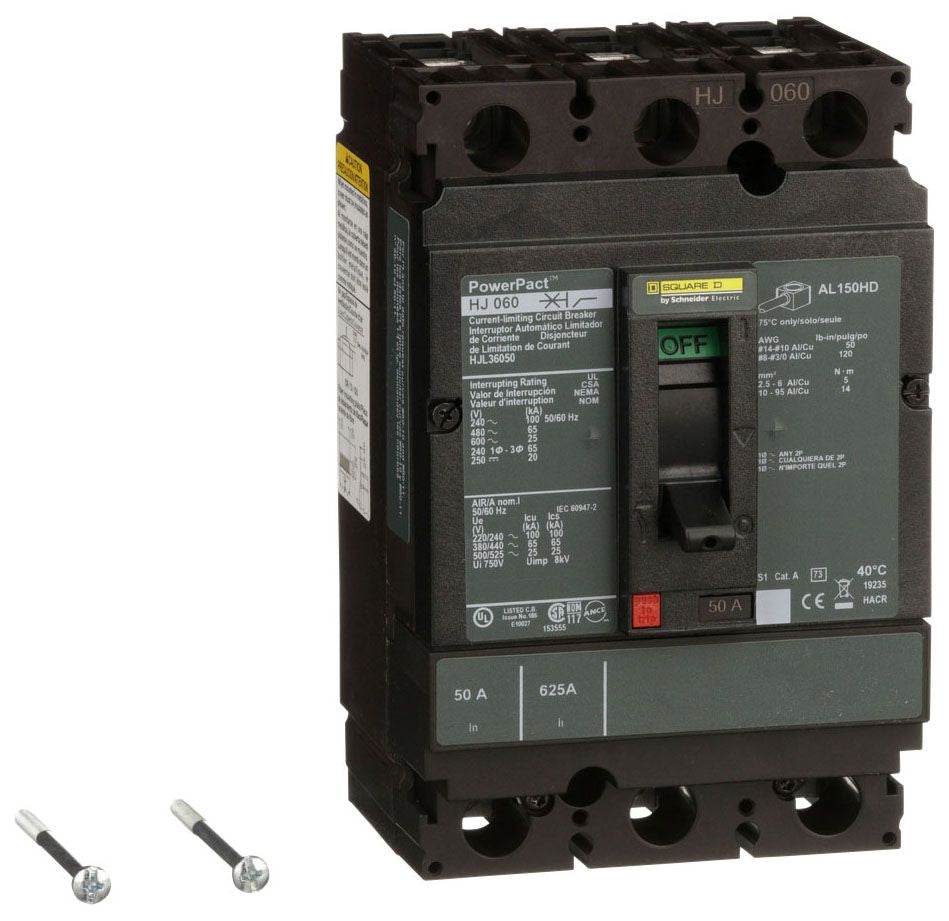

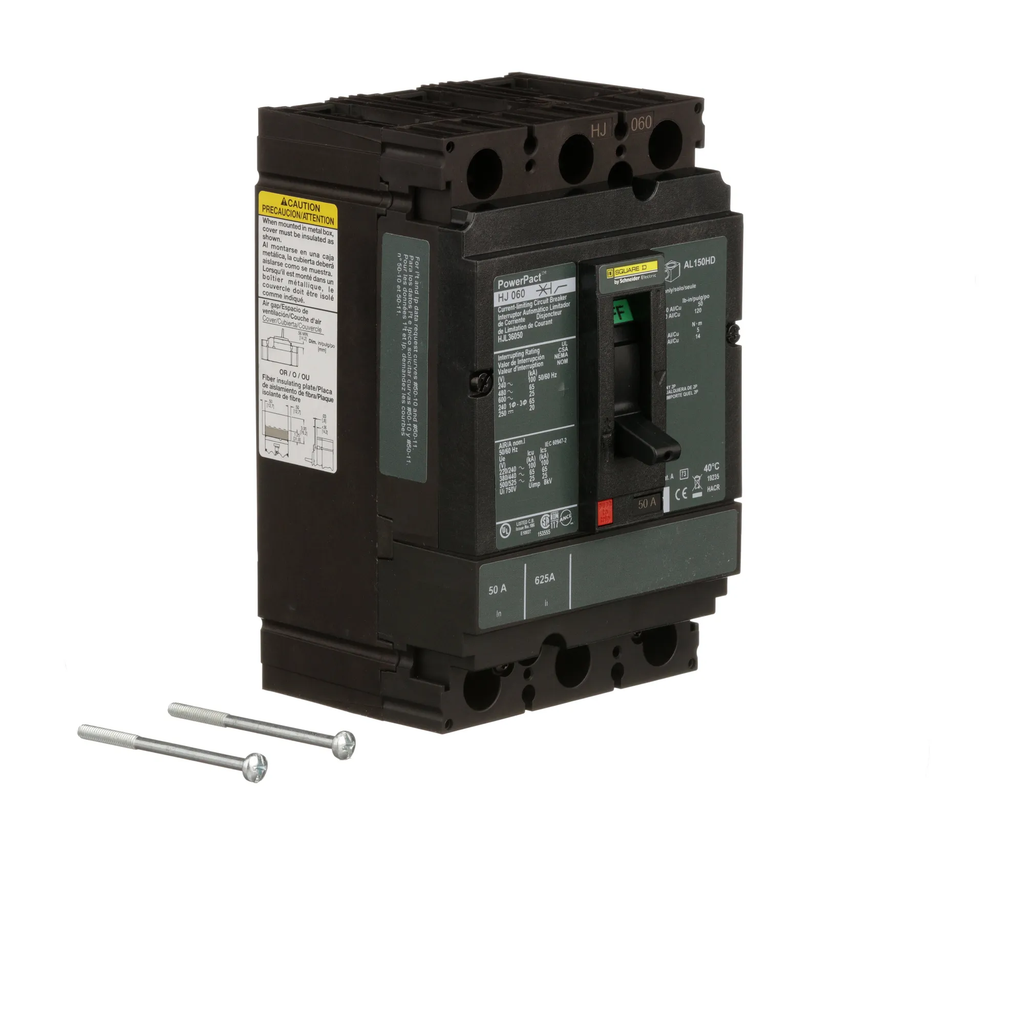

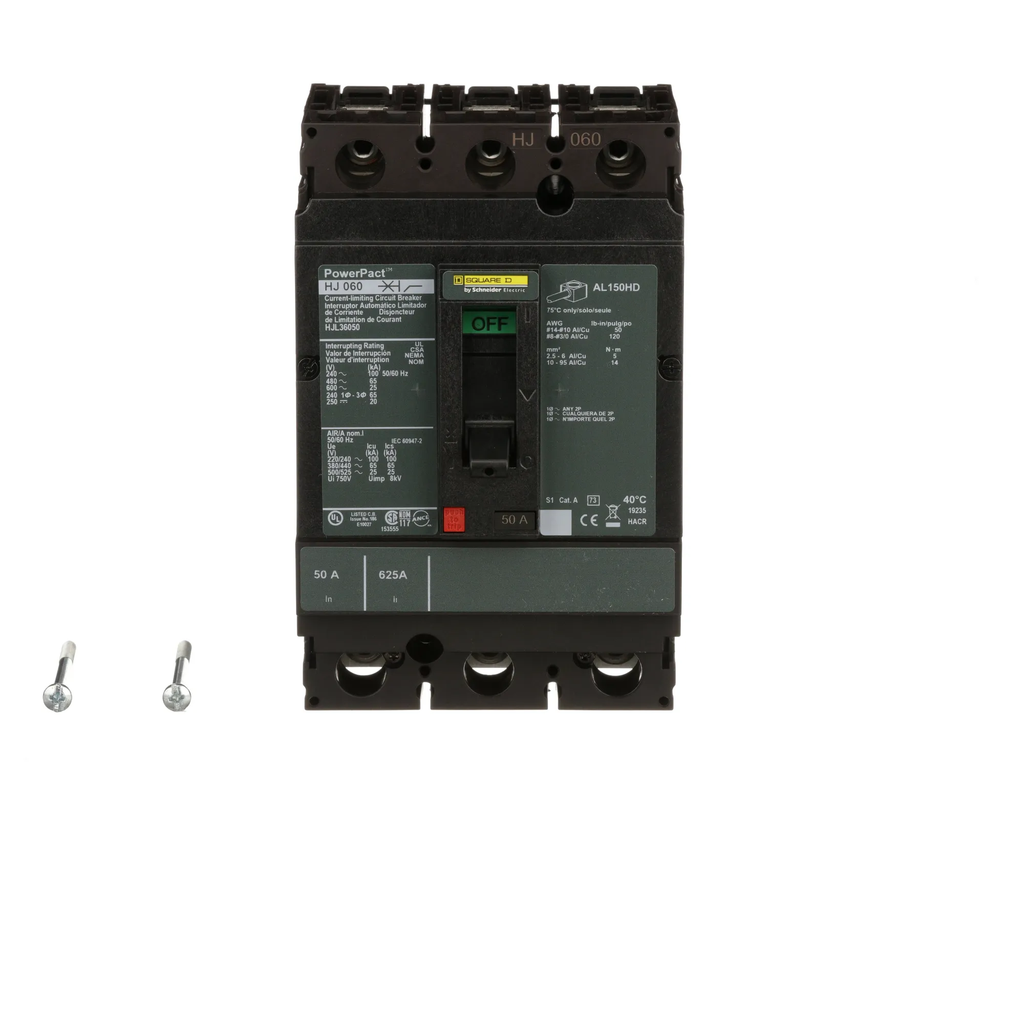

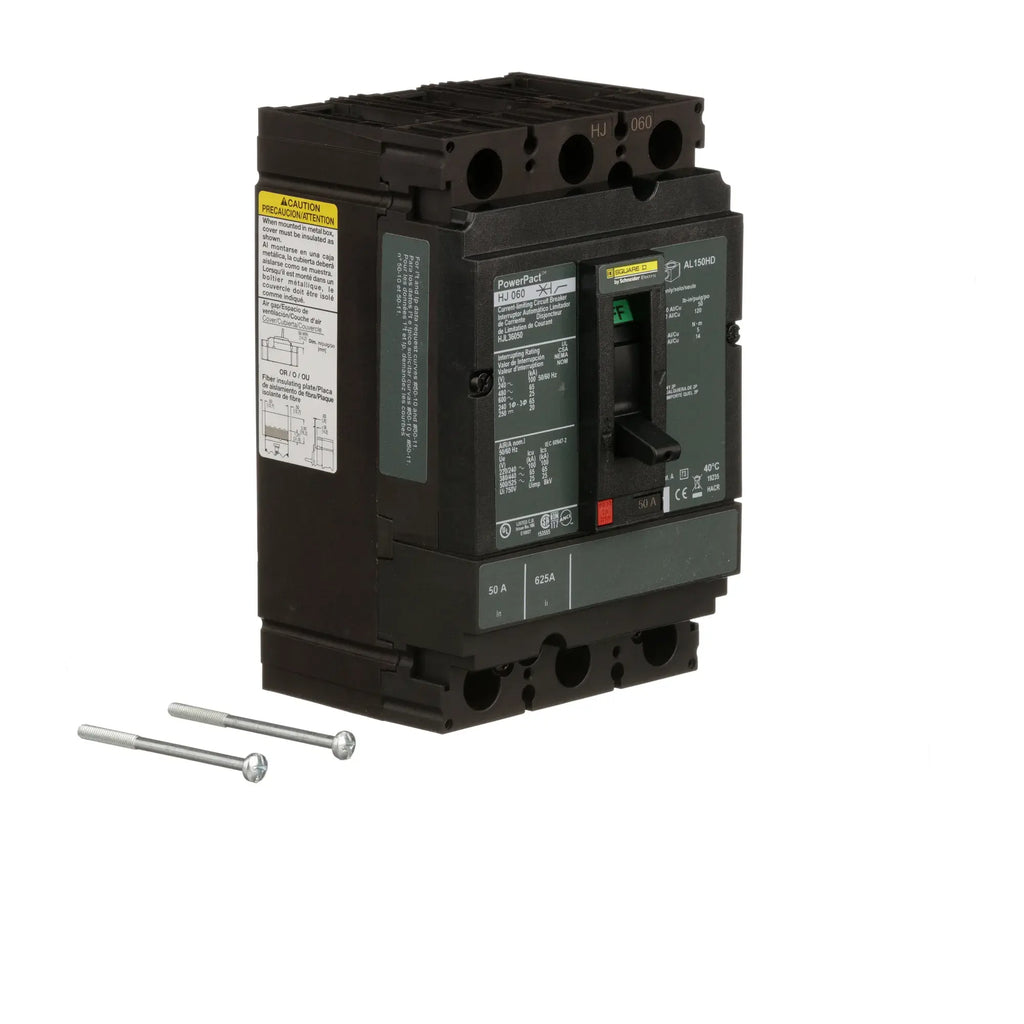

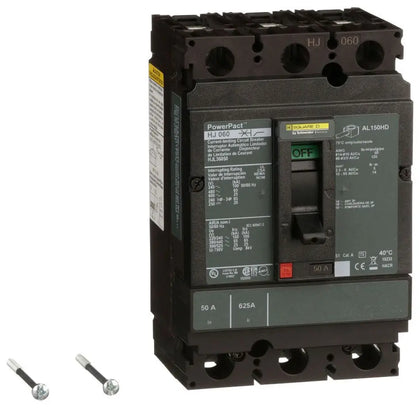

HJL36050 - Square D 50 Amp 600V 3 Pole Thermal Magnetic Molded Case Circuit Breaker PowerPact H Frame

HJL36050

HJL36050 is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 50 amps and 600 volts AC, designed for reliable power distribution protection.This PowerPact H frame breaker features a unit mount design with a 25 kA interrupt rating at 600 VAC and is suitable for industrial and commercial applications. It provides thermal magnetic trip protection with current limiting capability and is UL 489 listed.

Key Specifications
• Amperage: 50 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: PowerPact H
• Mounting Type: Unit Mount
• Interrupt Rating: 25 kA at 600 VAC
• Trip Unit: Thermal Magnetic
• Standards: UL 489 Listed
• Current Limiting: Yes
• Rated 80% for continuous load
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HJL36050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901839668
• GTIN : 00785901839668
• Country of Origin : Mexico

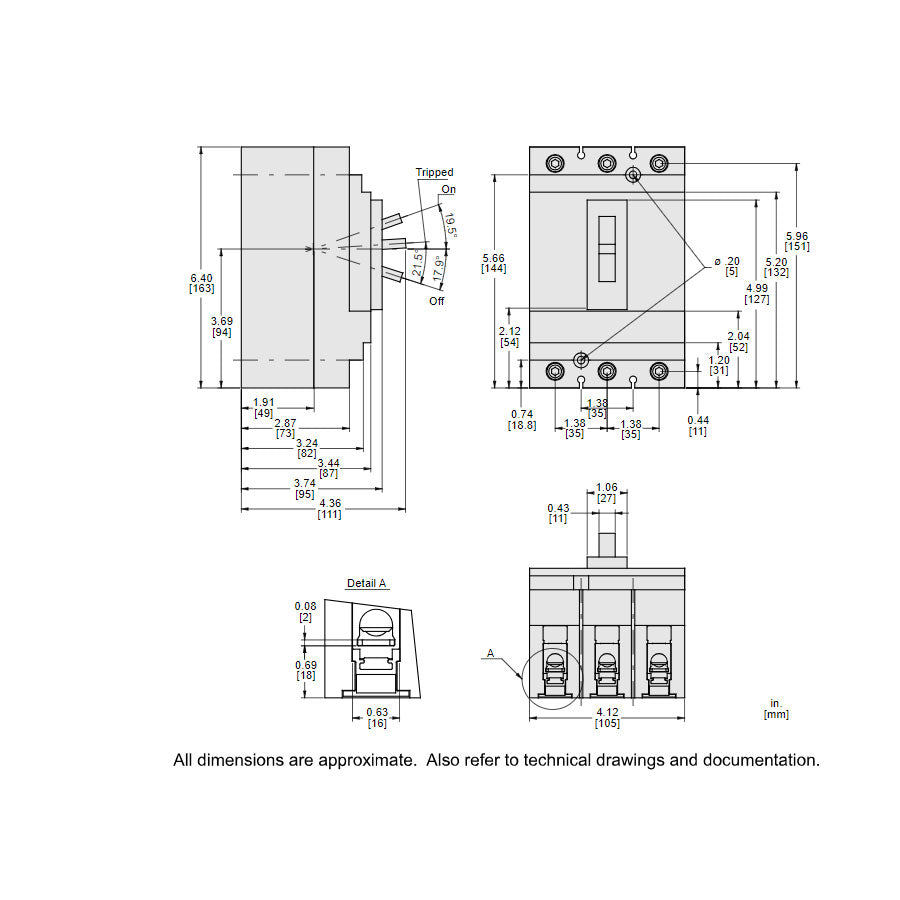

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.081
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
