HJL36020AA - Square D 20 Amp 600 Volt 3 Pole Molded Case Circuit Breaker H Frame

HJL36020AA

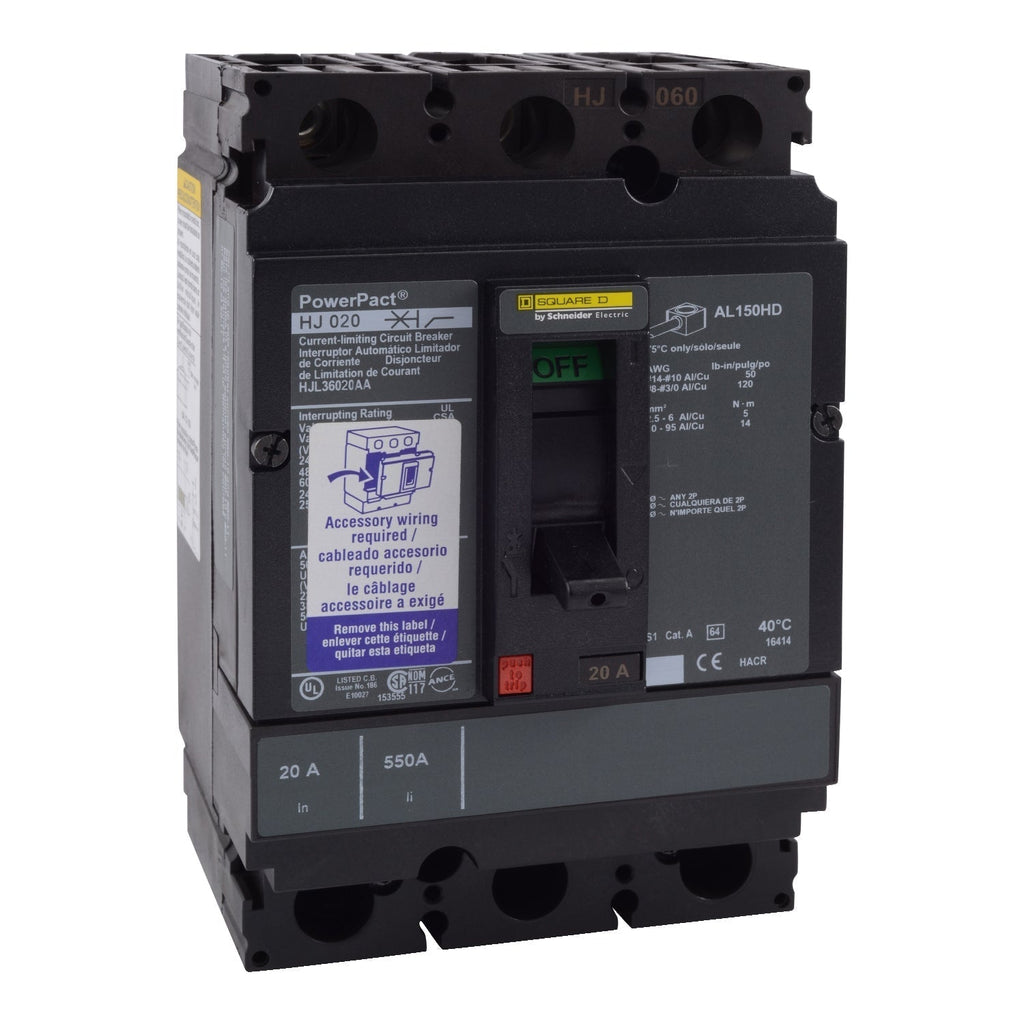

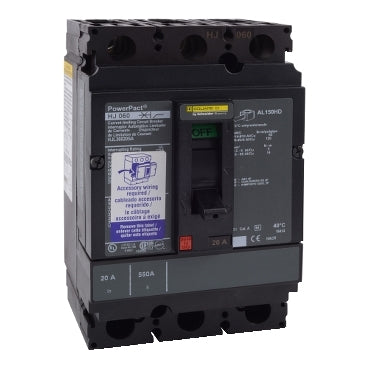

HJL36020AA is a Square D 20 Amp, 3 Pole, 600 Volt molded case circuit breaker designed for reliable power distribution protection.This circuit breaker features a Type HJL frame with a 65kA interrupt rating at 480VAC, suitable for industrial and commercial applications. It supports feed-thru and reverse fed configurations, is UL listed, and includes current limiting capabilities for enhanced safety. The breaker uses lug-type line and load connections and is designed for unit mounting.

Key Specifications
• Amperage: 20 Amp
• Voltage Rating: 600 Volt
• Poles: 3 Pole
• Frame/Series: H Frame (Type HJL)
• Interrupt Rating: 65kA @ 480VAC
• Mounting Type: Unit Mount
• Connection Type: Lug Line / Lug Load
• UL Listed
• Current Limiting
• Feed-Thru and Reverse Fed Capable
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HJL36020AA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic



Product Data

• GTIN : 00785901929666

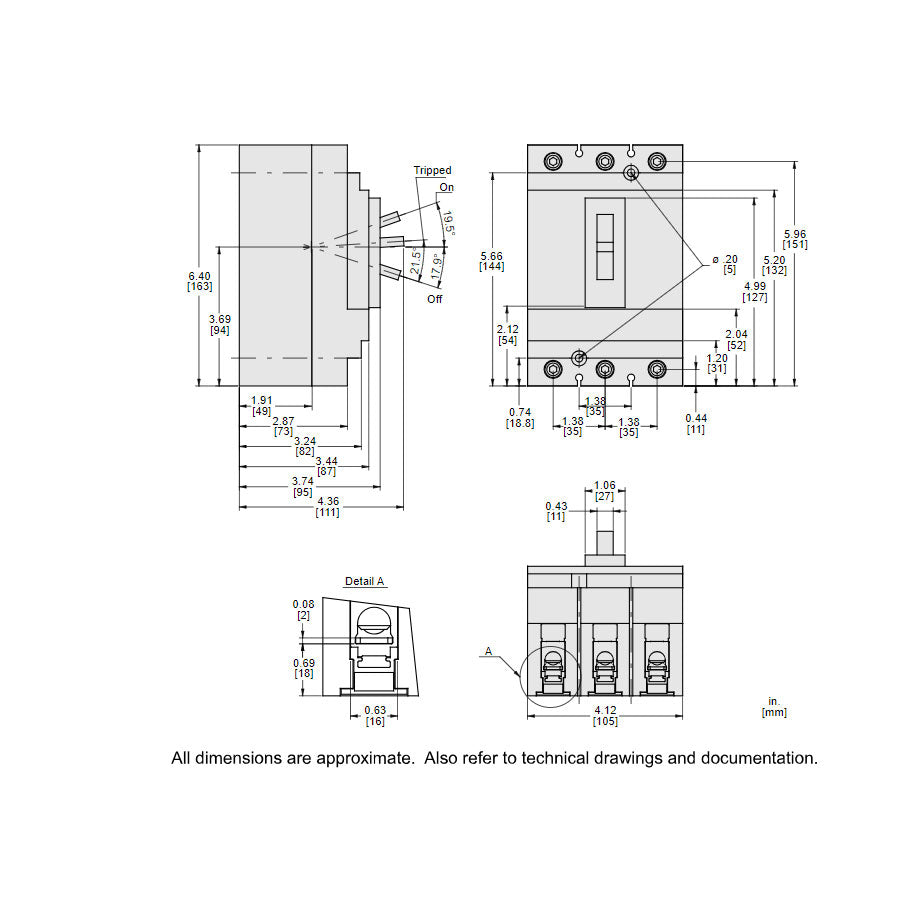

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
