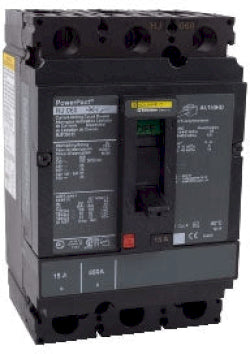

HJF36125 - Square D 125 Amp 600 Volt 3 Pole PowerPact H Frame Molded Case Circuit Breaker

HJF36125

HJF36125 is a Square D PowerPact H Frame molded case circuit breaker designed for reliable circuit protection.This 3 pole circuit breaker features a 125 ampere rating and is rated for use up to 600 volts AC. It utilizes a thermal magnetic trip unit for long-time and instantaneous protection. The breaker has a busbar connection and a breaking capacity of 25kA at 600VAC. It is designed for unit mounting and complies with UL 489 standards.

Key Specifications
• Manufacturer: Square D
• Part Number: HJF36125
• Amperage: 125 A
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: PowerPact H Frame
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 25kA @ 600 VAC
• Mounting Type: Unit Mount
• Connection Type: Busbar
• Standards: UL 489 Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: HJF36125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJF
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901009672
• GTIN : 00785901009672
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
