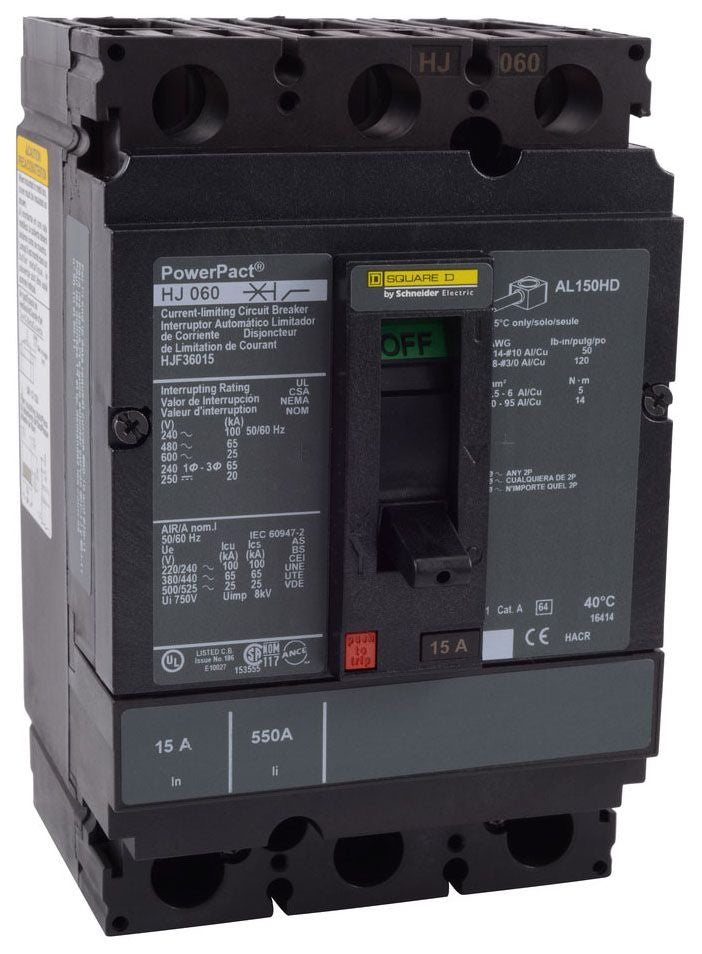

HJF36015 - Square D PowerPact H Frame 15 Amp 3 Pole 600VAC 25kA Molded Case Circuit Breaker Thermal Magnetic

HJF36015

HJF36015 is a Square D PowerPact H Frame molded case circuit breaker rated for 15 amps and 600 volts AC with a 3-pole configuration.

This circuit breaker features a thermal magnetic trip unit designed for reliable protection and is rated for a 25kA interrupt capacity. It is suitable for busbar mounting and operates at 50/60 Hz frequency. The breaker has an 80% rated current setting and is part of the PowerPact H series, known for robust performance in industrial and commercial applications.

• Amperage: 15 Amp
• Voltage: 600 VAC
• Poles: 3 Pole
• Frame Type: PowerPact H
• Interrupt Rating: 25 kA
• Trip Unit: Thermal Magnetic
• Mounting Type: Busbar
• Frequency: 50/60 Hz
• Rated Current Setting: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HJF36015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJF
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901219316
• GTIN : 00785901219316
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
