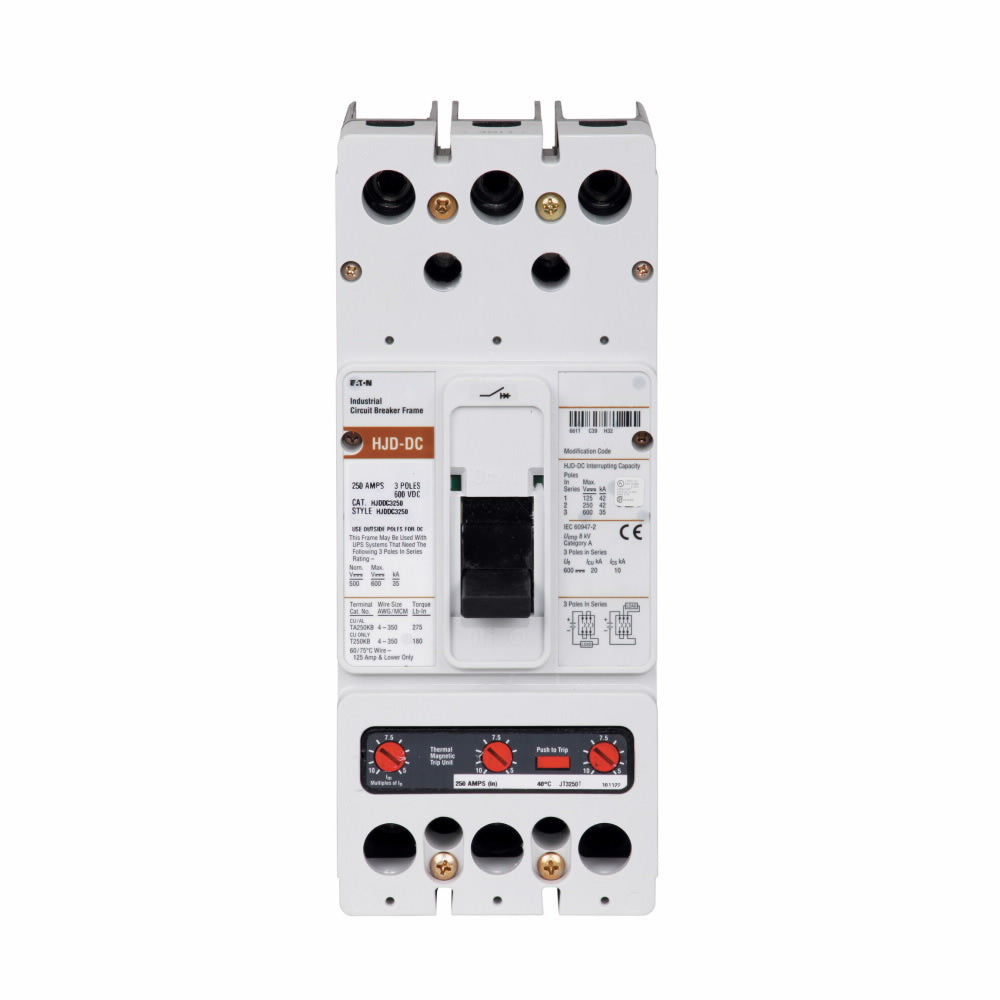

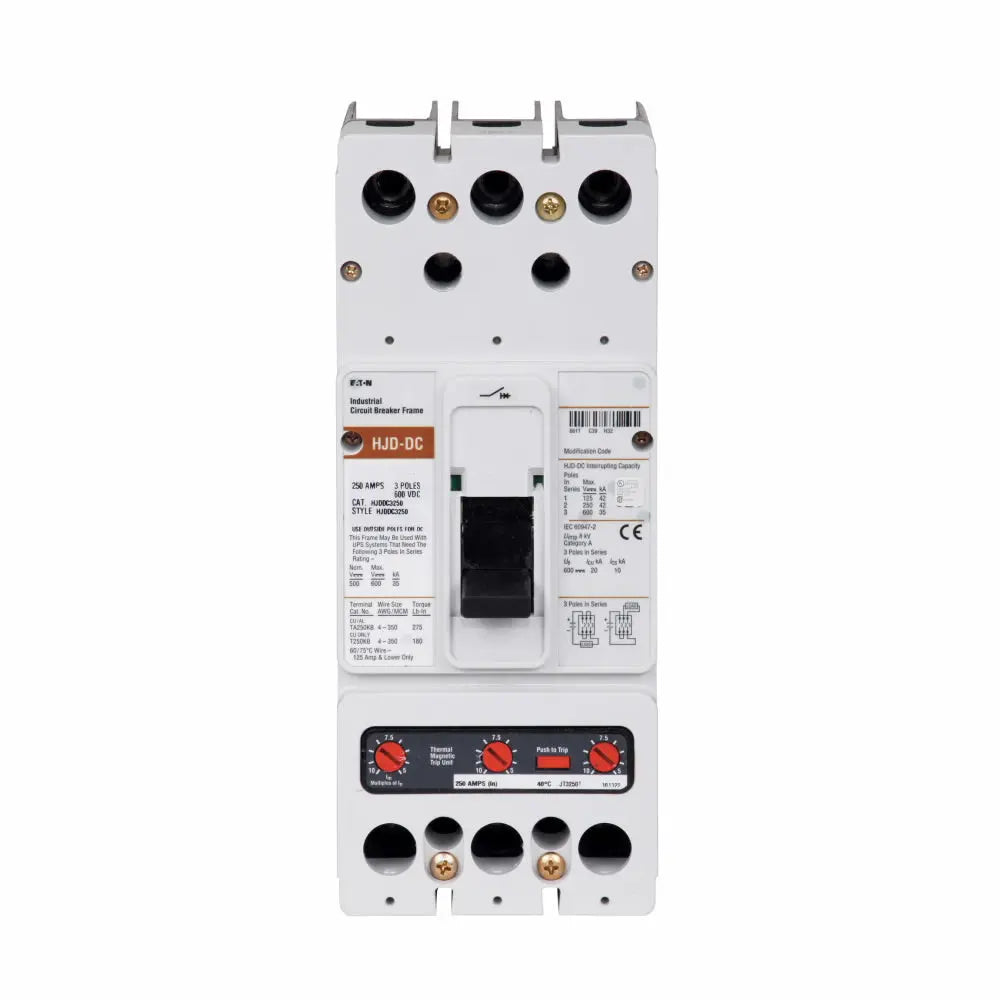

HJDDC3250F - Cutler Hammer 250 Amp 3 Pole 600VDC Molded Case Circuit Breaker J Frame Thermal Magnetic Trip

HJDDC3250F

HJDDC3250F is a 250 Amp, 3 Pole, 600VDC molded case circuit breaker designed for reliable protection in demanding electrical applications. This J Frame breaker features interchangeable thermal-magnetic trip technology and is suitable for use in Series C systems. Engineered for high performance, the HJDDC3250F offers robust protection with a 42kAIC interrupt rating at 600VDC. Its compact design and bolt-on mounting make it ideal for industrial and commercial power distribution panels.

• Part Number: HJDDC3250F
• Manufacturer: Cutler Hammer
• Amperage: 250 Amp
• Poles: 3 Pole
• Maximum Voltage: 600VDC
• Interrupt Rating: 42kAIC @ 600VDC
• Frame Type: J Frame
• Series: Series C
• Mounting Type: Bolt-On
• Protection Type: Thermal Magnetic Trip
• Temperature Rating: 40°C
• Weight: 8.5 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.

Specifications

• Part Number: HJDDC3250F
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HJDDC
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 42kA@600V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679342046
• GTIN : 00786679342046
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.5
• Certification : UL 489
