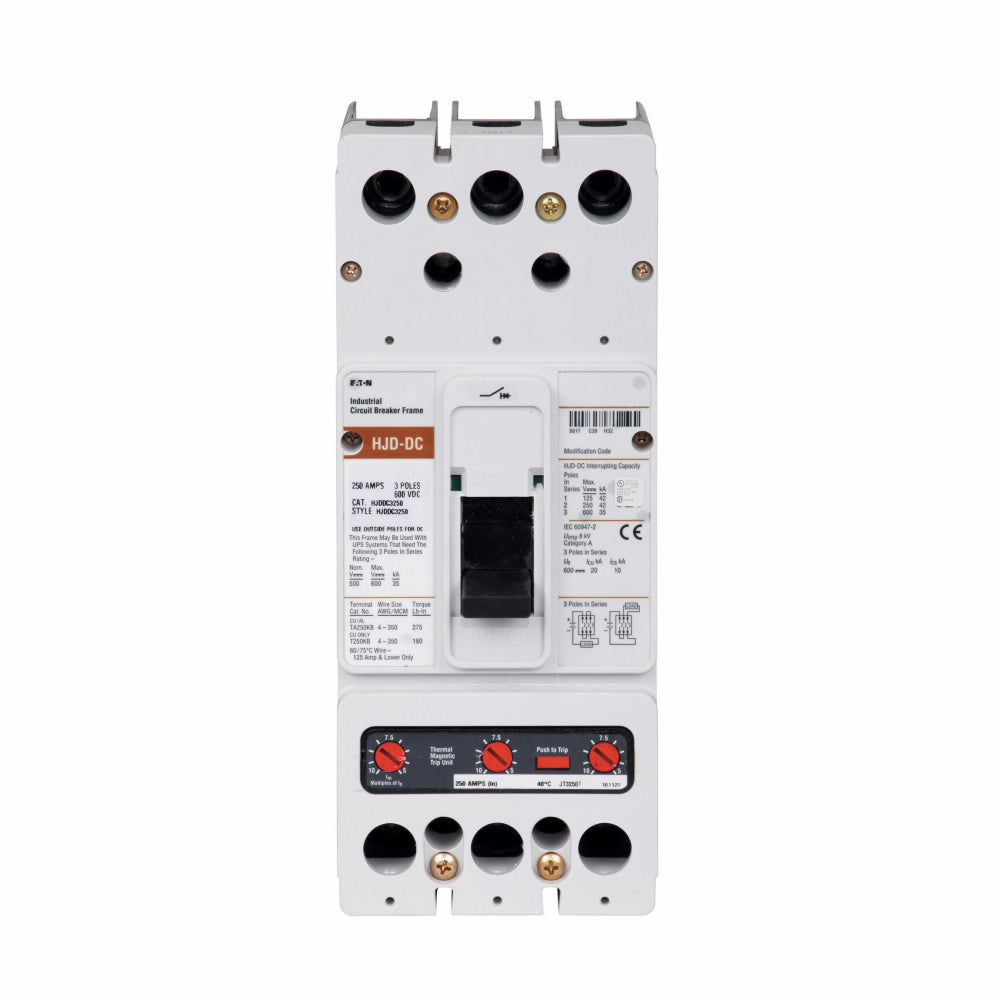

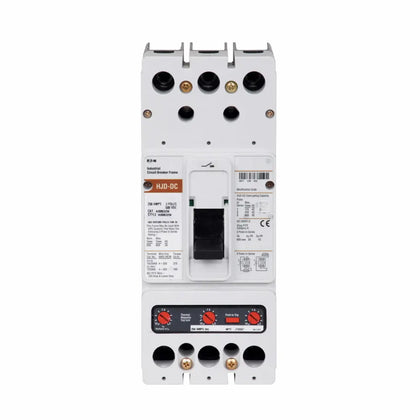

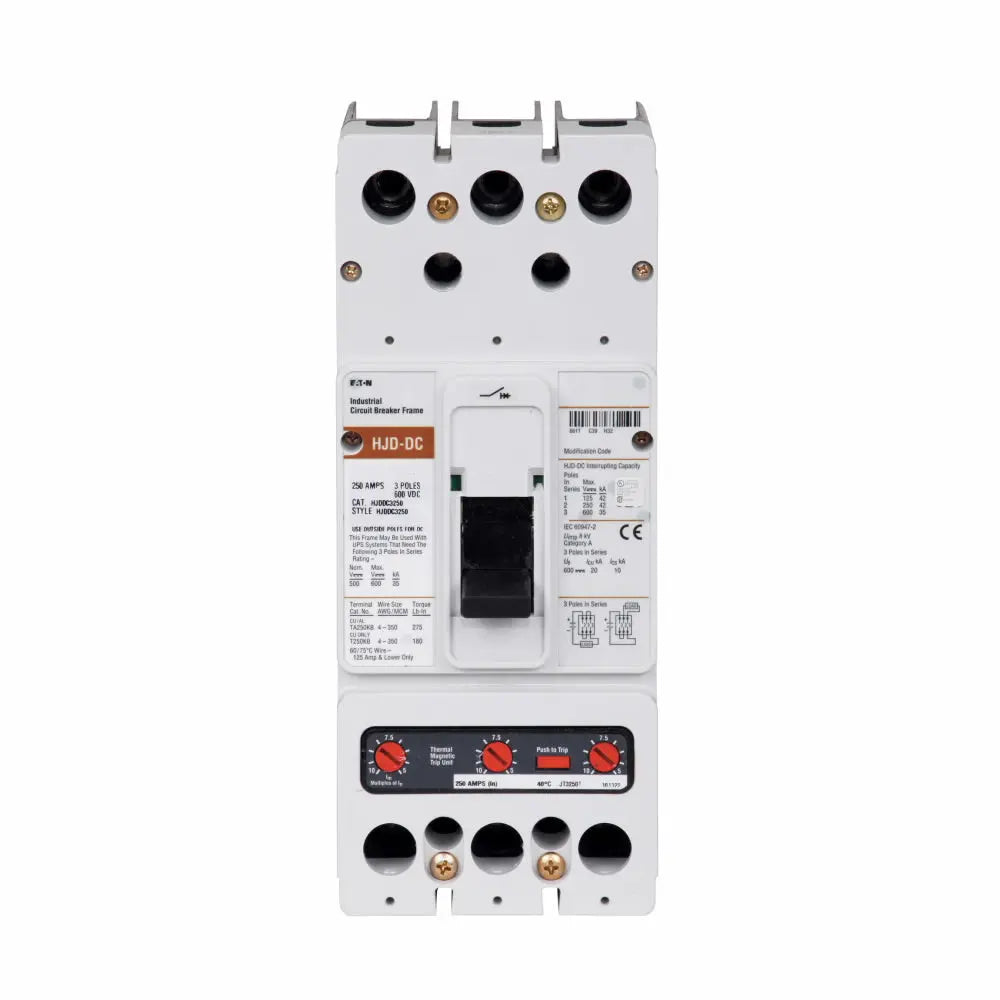

HJDDC3225 - Cutler Hammer 225A 600VDC 3 Pole Molded Case Circuit Breaker

HJDDC3225

HJDDC3225 is a 3 pole, 225 amp, 600VDC molded case circuit breaker designed for solar and DC power distribution applications. This Eaton Series C breaker features a thermal-magnetic trip unit and is suitable for high interrupting duty in demanding environments. Engineered for reliability, the HJDDC3225 offers robust protection for photovoltaic and DC circuits. Its J-frame design supports interchangeable trip units and is rated for use in solar arrays and industrial DC power systems. The breaker is built to meet rigorous safety standards for DC applications.

• Part Number: HJDDC3225
• Manufacturer: Cutler Hammer, Eaton, Westinghouse
• Amperage Rating: 225A
• Voltage Rating: 600VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 42kAIC @ 600VDC (3 poles in series)
• Series/Frame: Series C, J-Frame
• Interrupt Rating: 50kAIC @ 250VDC (2 poles in series)
• Interrupt Rating: 42kAIC @ 125VDC (1 pole in series)
• Interrupt Rating: 65kAIC @ 480VAC (feed-thru)
• Trip Unit: T207, Interchangeable Thermal-Magnetic
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJDDC3225
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HJDDC
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 42kA@600V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786685375571
• GTIN : 00786685375571
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.5
• Certification : UL 489
