HJA36150SA - Square D 150A 600V 3 Pole I-Line Thermal Magnetic Circuit Breaker

Save $4,130.23
SKU: HJA36150SA-New
Condition: New
Price:
$2,827.77 $6,958.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

HJA36150SA - Square D I-Line Style Plug-In 150 Amp 3 Pole Circuit Breaker - Essential Electric Supply

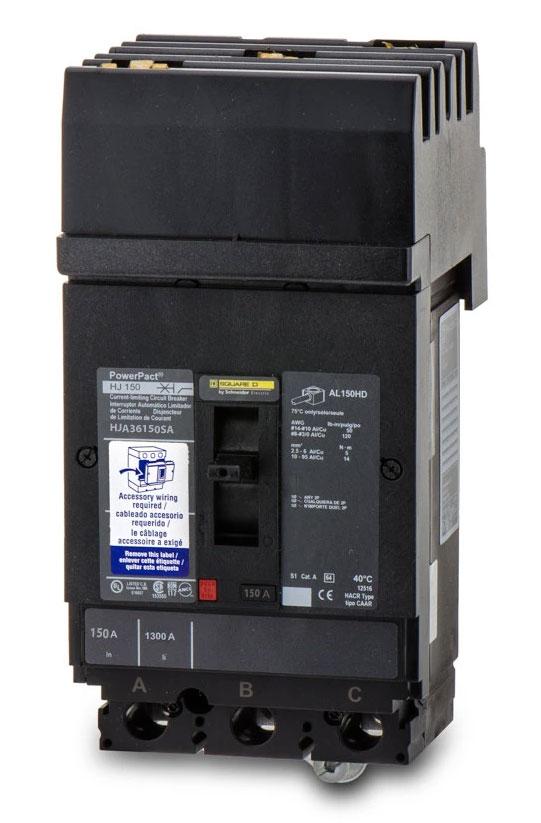

HJA36150SA - Square D 150A 600V 3 Pole I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HJA36150SA - Square D I-Line Style Plug-In 150 Amp 3 Pole Circuit Breaker - Essential Electric Supply
HJA36150SA - Square D 150A 600V 3 Pole I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply

Description

HJA36150SA


HJA36150SA is a Square D 3 pole, 150 amp, 600 volt I-Line style thermal magnetic molded case circuit breaker designed for reliable power distribution protection.This PowerPact H frame breaker features a 65kA interrupt rating at 480V AC, 25kA at 600V AC, and 100kA at 240V AC. It includes a 120V shunt trip, long-time and instantaneous trip functions, and is suitable for reverse fed applications. The breaker is UL 489 listed and designed for plug-in I-Line mounting with ABC phase connection.
    Key Specifications
    • Amperage: 150 Amp
    • Voltage Rating: 600 VAC / 250 VDC
    • Poles: 3 Pole
    • Interrupt Rating: 65kA @ 480V, 25kA @ 600V, 100kA @ 240V
    • Frame Type: PowerPact H (HJA)
    • Mounting Type: I-Line Plug-In
    • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
    • Shunt Trip: 120V AC
    • Phase Connection: ABC
    • UL Listed: UL 489
    • Suitable for Reverse Fed Applications
    • Non-Interchangeable Trip
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120Vac shunt trip


Specifications

  • Part Number: HJA36150SA
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HJA
  • Voltage : 600
  • Amperage : 150
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : H
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901699323
  • GTIN : 00785901699323
  • Country of Origin : United States
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 6.001
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
