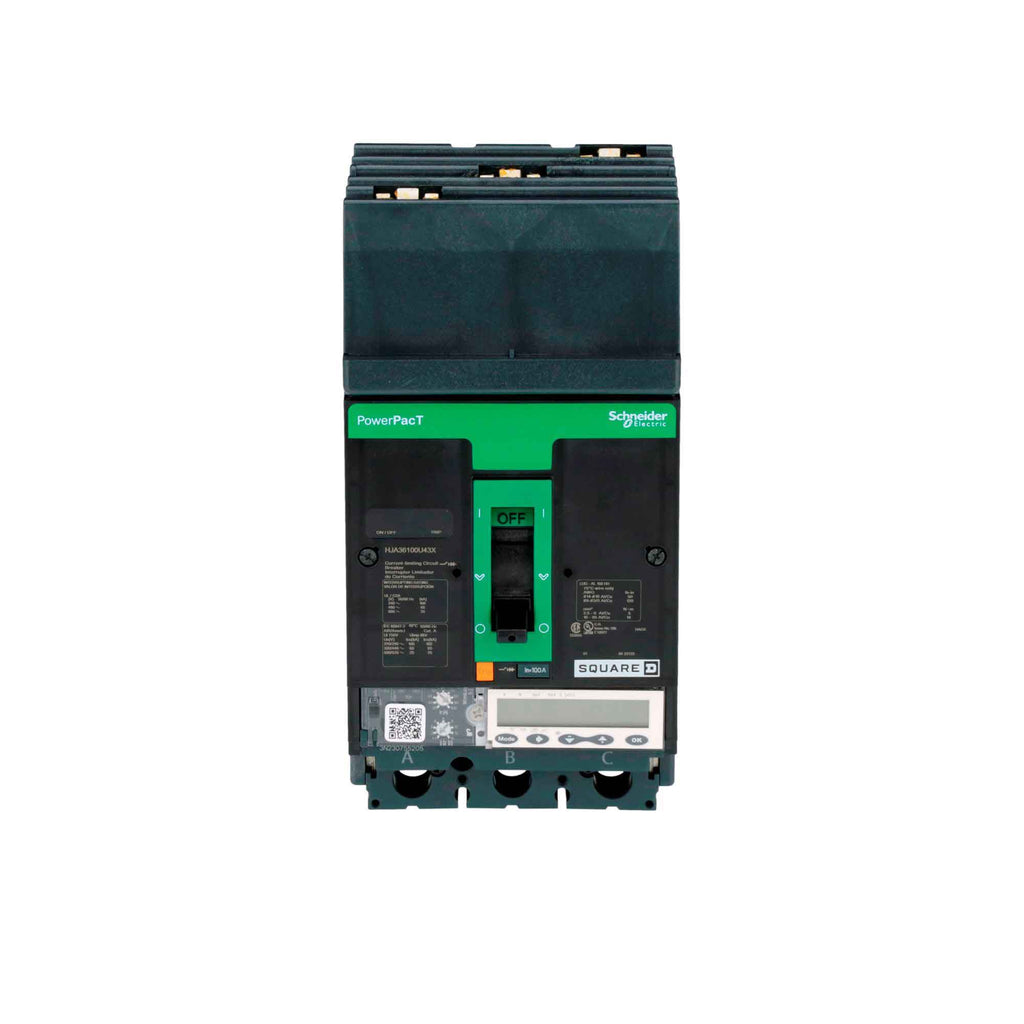

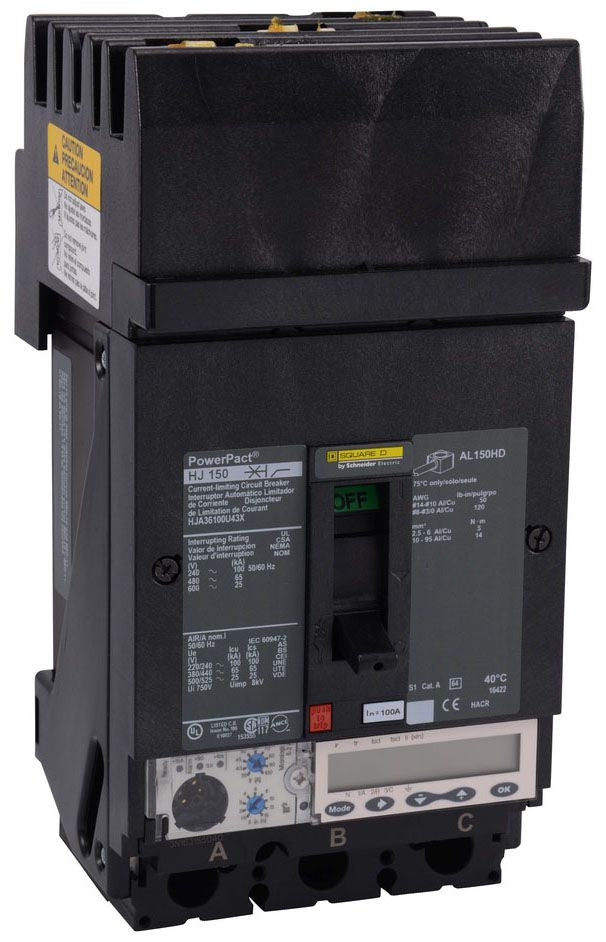

HJA36100U43X - Square D PowerPact H 100A 3 Pole 600V I-Line Circuit Breaker with Micrologic 5.2A Trip

HJA36100U43X

HJA36100U43X is a Square D PowerPact H molded case circuit breaker rated for 100 amps, 3 poles, and 600 volts AC with I-Line plug-in mounting and Micrologic 5.2A electronic trip unit.This circuit breaker features a 25kA interrupt rating at 600V, 65kA at 480V, and 100kA at 240V, with long-time, short-time, and instantaneous trip functions. It is UL 489 listed and designed for three-phase ABC connection, suitable for industrial and commercial power distribution applications.

• Amperage: 100A
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 25kA @ 600V, 65kA @ 480V, 100kA @ 240V
• Series/Frame: PowerPact H Frame
• Trip Unit: Micrologic 5.2A (LSI - Long-Time, Short-Time, Instantaneous)
• UL Listed: UL 489
• Phase: 3 (ABC)
• Connection: I-Line
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA36100U43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901564287
• GTIN : 00785901564287
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
