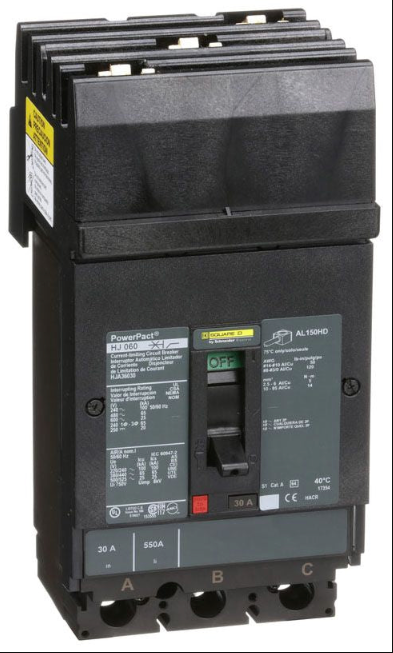

HJA36070UH - Square D Powerpact H-Frame 70A 600V 3-Pole I-Line Molded Case Circuit Breaker

HJA36070UH

HJA36070UH is a Square D Powerpact H-Frame molded case circuit breaker designed for reliable protection in electrical distribution systems.This 3-pole circuit breaker features a 70 ampere rating and operates at up to 600 volts AC. It utilizes a thermal-magnetic trip unit with long-time and instantaneous trip functions, providing effective overload and short circuit protection. The breaker has an interrupt rating of 65kA at 480V AC and 100kA at 240V AC, suitable for demanding industrial applications. It mounts via an I-Line plug-in style connection and supports wire sizes from AWG 14 to 3/0 aluminum or copper. The breaker is UL listed and meets multiple international certifications including CSA, NEMA, IEC, and CE.

Key Specifications
• Amperage: 70 A
• Voltage: 600 V AC
• Poles: 3
• Frame Type: H-Frame
• Mounting Type: I-Line plug-in
• Interrupt Rating: 65 kA at 480 V AC, 100 kA at 240 V AC
• Trip Unit: Thermal-magnetic with long-time and instantaneous functions
• Wire Range: AWG 14 to 3/0 aluminum/copper
• Standards: UL 489 Listed, CSA, NEMA, IEC, CE certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HJA36070UH
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• Weight : 5
