HJA36060U33X - Square D 60A 600V 3 Pole PowerPact H I-Line Circuit Breaker with Micrologic 3.2S Trip Unit

Save $111.62
SKU: HJA36060U33X-New
Condition: New
Price:
$2,308.38 $2,420.00
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

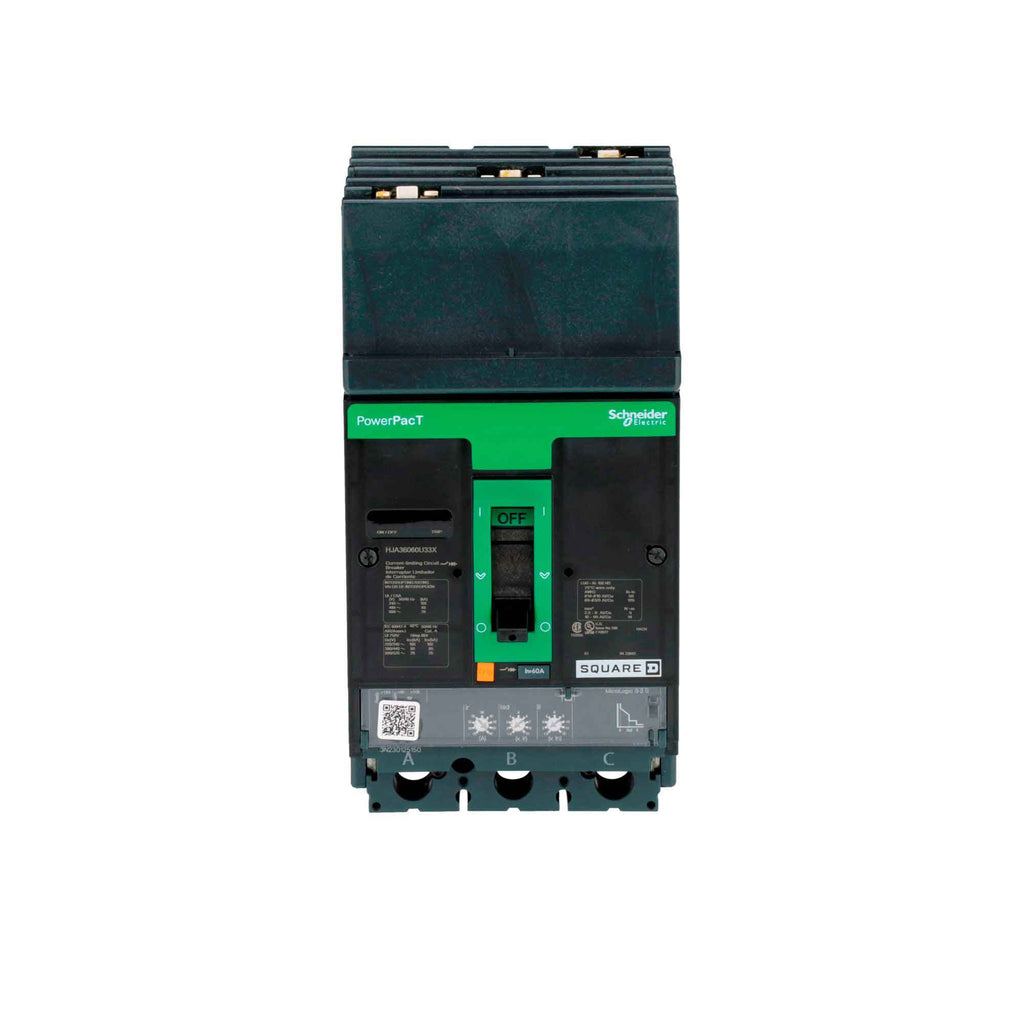

HJA36060U33X - Essential Electric Supply
HJA36060U33X - Square D 60A 600V 3 Pole PowerPact H I-Line Circuit Breaker with Micrologic 3.2S Trip Unit - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

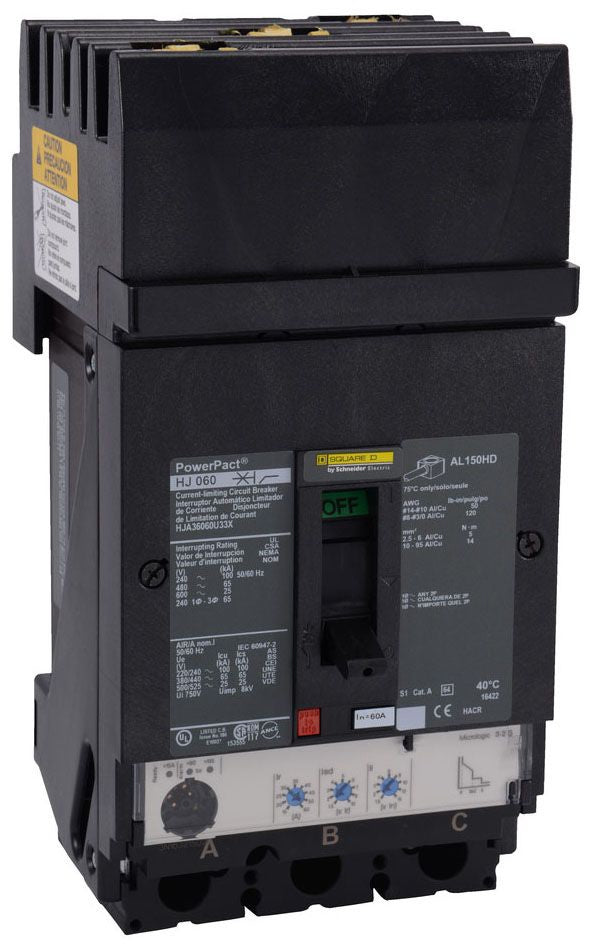

HJA36060U33X - Essential Electric Supply
HJA36060U33X - Square D 60A 600V 3 Pole PowerPact H I-Line Circuit Breaker with Micrologic 3.2S Trip Unit - Essential Electric Supply

Description

HJA36060U33X


HJA36060U33X is a 3 pole, 60 amp, 600 volt molded case circuit breaker from Square D's PowerPact H series with I-Line plug-in mounting.HJA36060U33X features a Micrologic 3.2S electronic trip unit providing LSI (long-time, short-time, instantaneous) protection and is rated for interrupting capacities of 100kA at 240VAC, 65kA at 480VAC, and 25kA at 600VAC. It is UL, CSA, CE, IEC, and CCC certified for industrial applications.
    Key Specifications
    • Manufacturer: Square D
    • Series: PowerPact H
    • Amperage: 60 Amps
    • Voltage Rating: 600VAC, 250VDC
    • Poles: 3
    • Mounting Type: I-Line Style Plug-In
    • Interrupting Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC
    • Trip Unit: Micrologic 3.2S (LSI - Long-Time, Short-Time, Instantaneous)
    • Frame Type: HJA
    • Certifications: UL 489, CSA, CE, IEC, CCC
    • Dimensions (LxWxH): 4.8 x 4.48 x 9.73 inches
    • Wire Gauge: AWG 14 to 3/0 Aluminum/Copper
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HJA36060U33X
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HJA
  • Voltage : 600
  • Amperage : 60
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LSI - Long-Time, Short-Time and Instantaneous
  • Terminal Connection : I-Line, Lug
  • Frame Size : H
  • Temp Rating : 28-158 °F (-2-70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
  • Protection : Solid State
  • Phase Connection : ABC

Product Data

  • UPC : 785901275091
  • GTIN : 00785901275091
  • Country of Origin : United States
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 8.001
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
