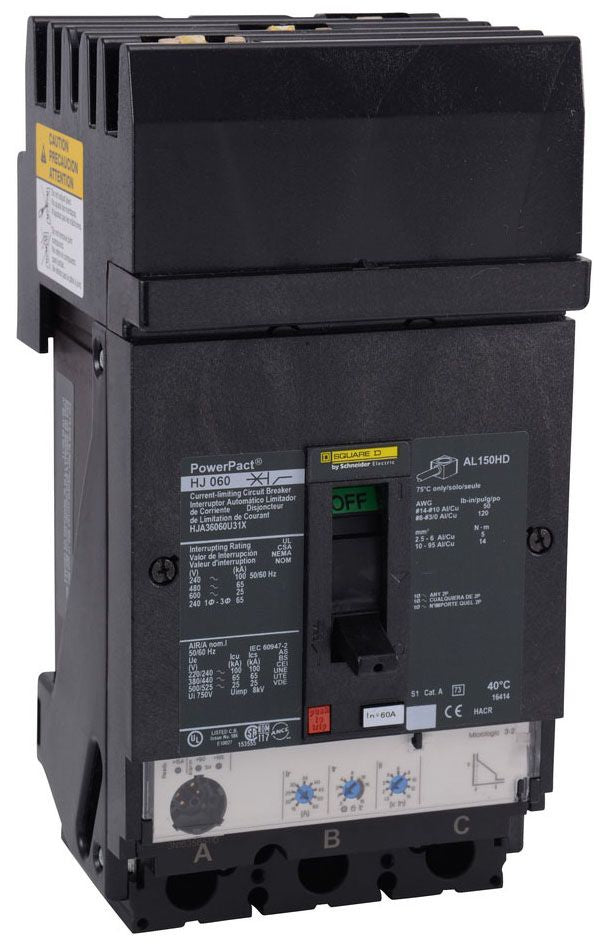

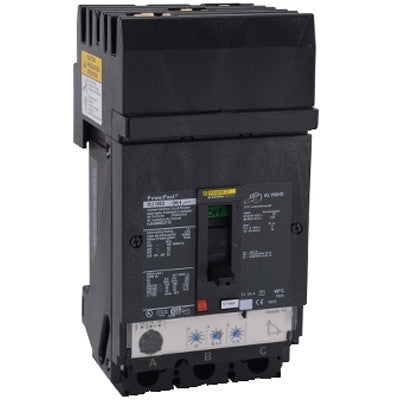

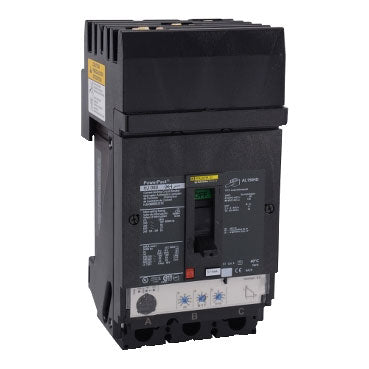

HJA36060U31X - Square D PowerPact H 60A 600V 3-Pole Circuit Breaker, Micrologic 3.2, I-Line

HJA36060U31X

HJA36060U31X is a Square D PowerPact H series 3-pole circuit breaker rated for 60 amps and 600 volts AC with Micrologic 3.2 electronic trip unit.This molded case circuit breaker features a 25 kA interrupt rating at 600 V AC, 65 kA at 480 V AC, and 100 kA at 240 V AC. It mounts on I-Line bus and supports wire sizes from AWG 14 to AWG 3/0 aluminum or copper. The breaker has an 80% continuous current rating and is certified to IEC, CSA, and CCC standards.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 600 V AC
• Number of Poles: 3
• Interrupt Rating: 25 kA @ 600 V AC
• Series/Frame: PowerPact H
• Trip Unit: Electronic, Micrologic 3.2, LI
• Mounting Type: I-Line
• Continuous Current Rating: 80%
• Wire Gauge: AWG 14 to AWG 3/0 aluminum/copper
• Certifications: IEC, CSA, CCC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HJA36060U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC



Product Data

• UPC : 785901235873
• GTIN : 00785901235873
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.809
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
