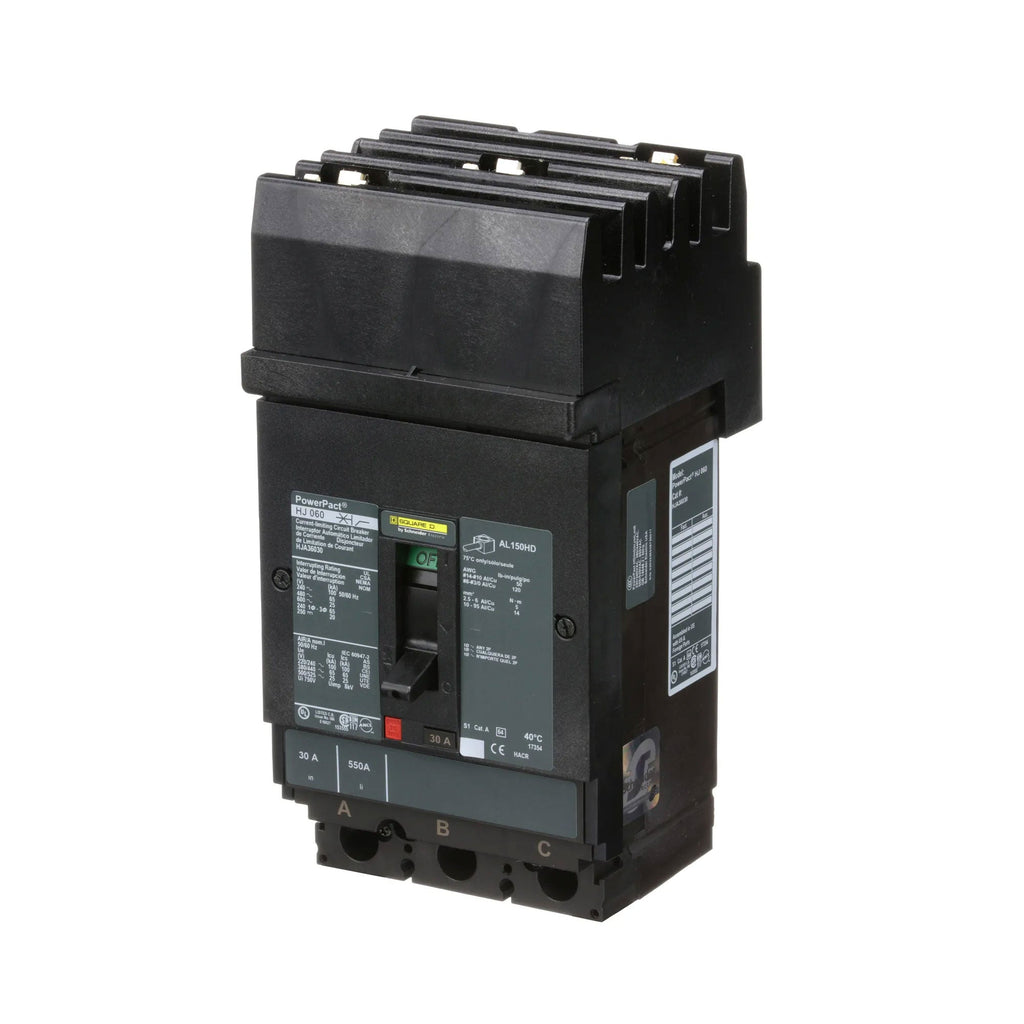

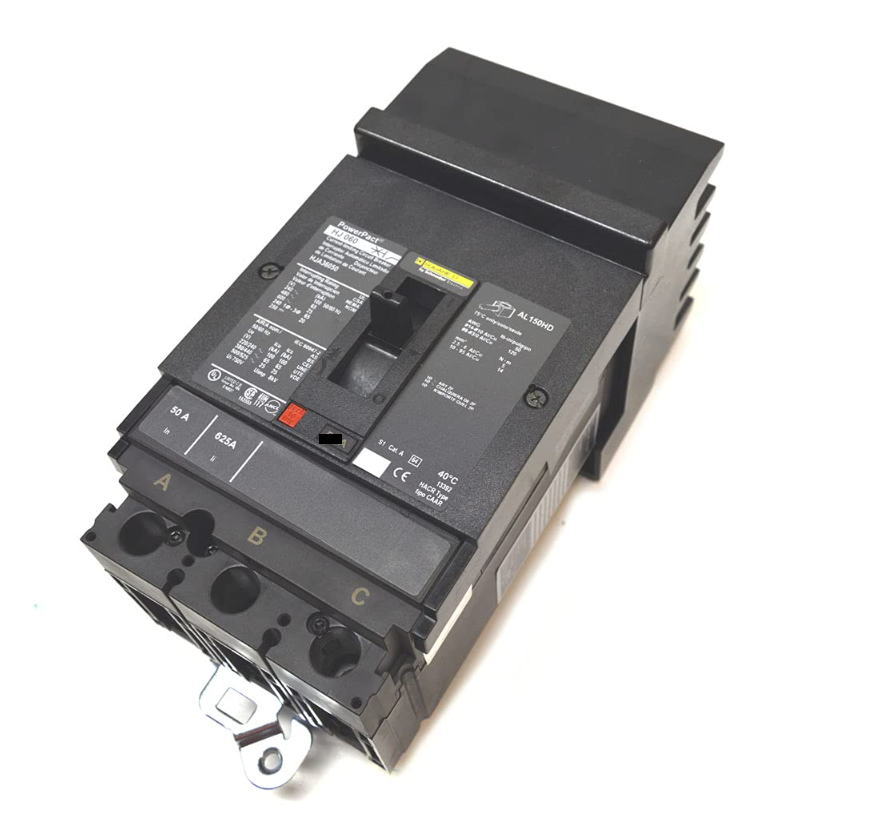

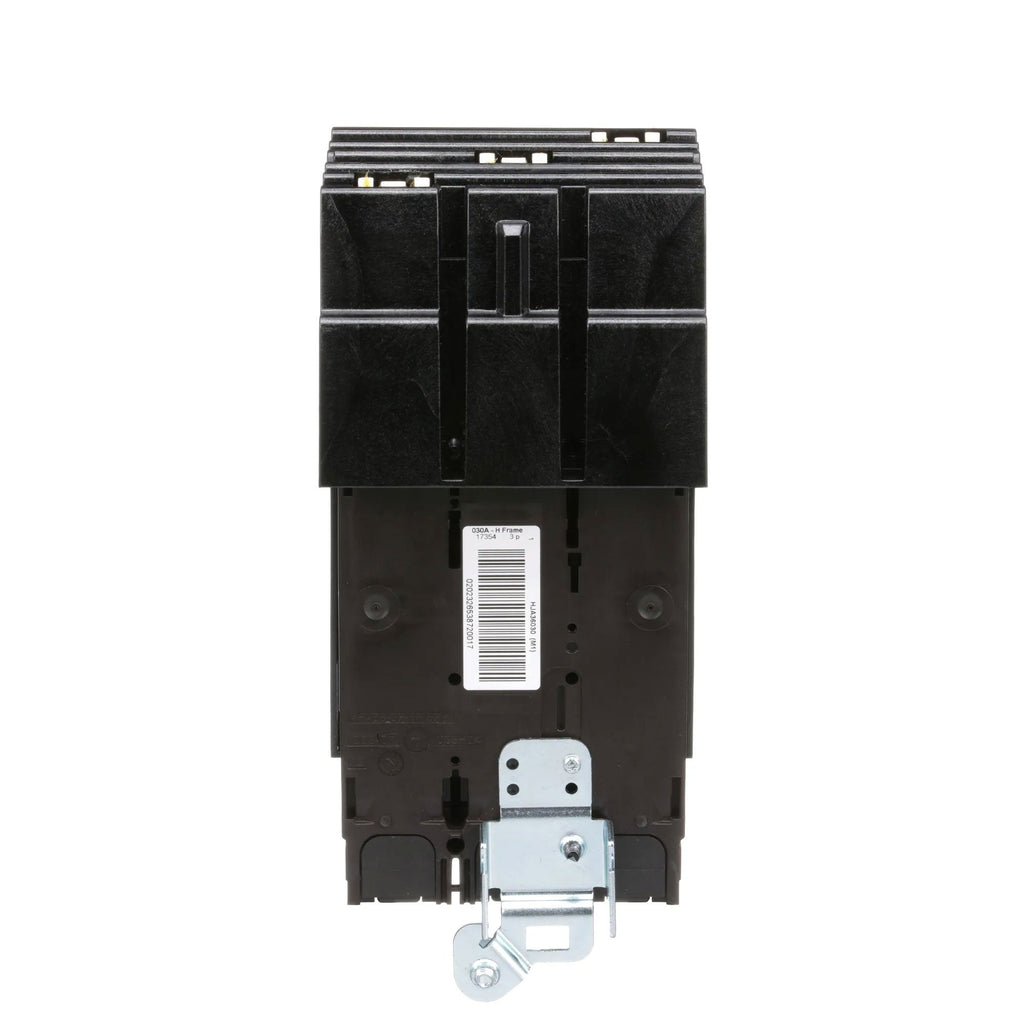

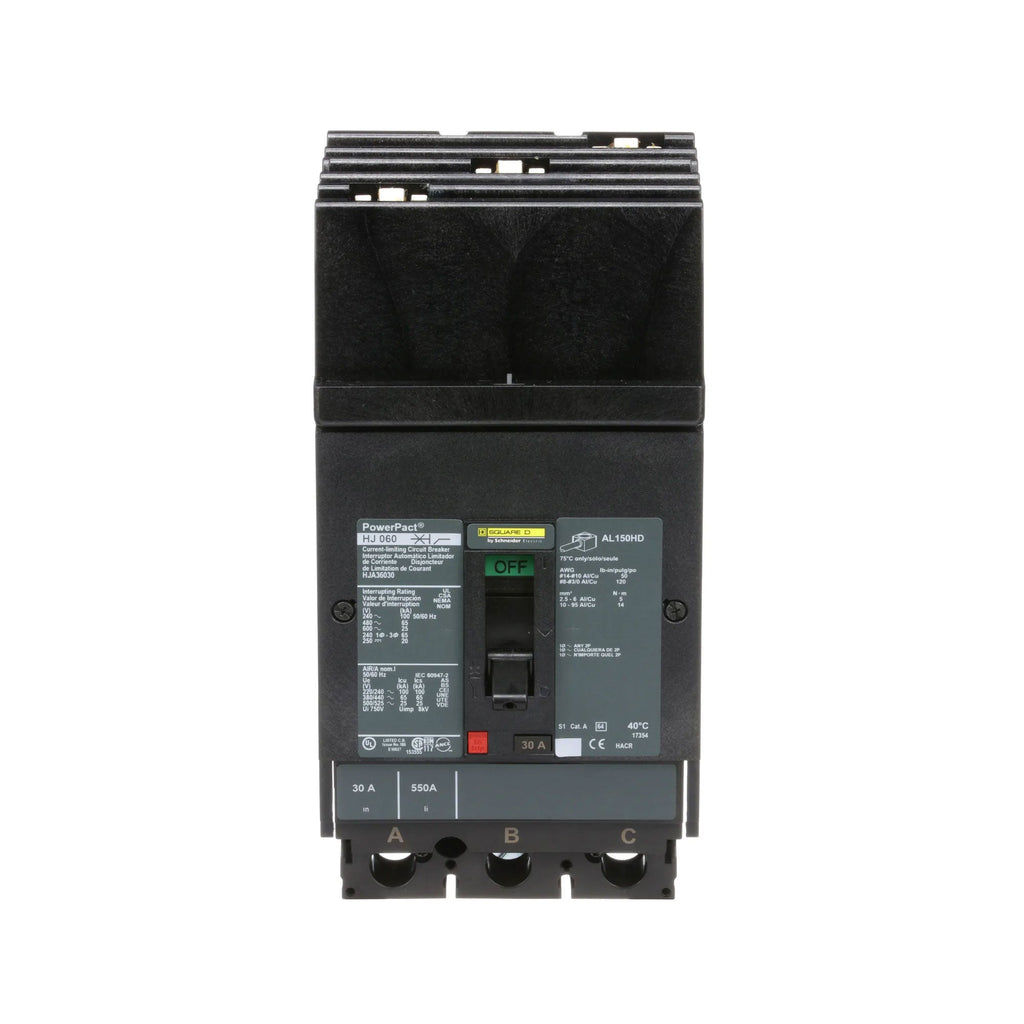

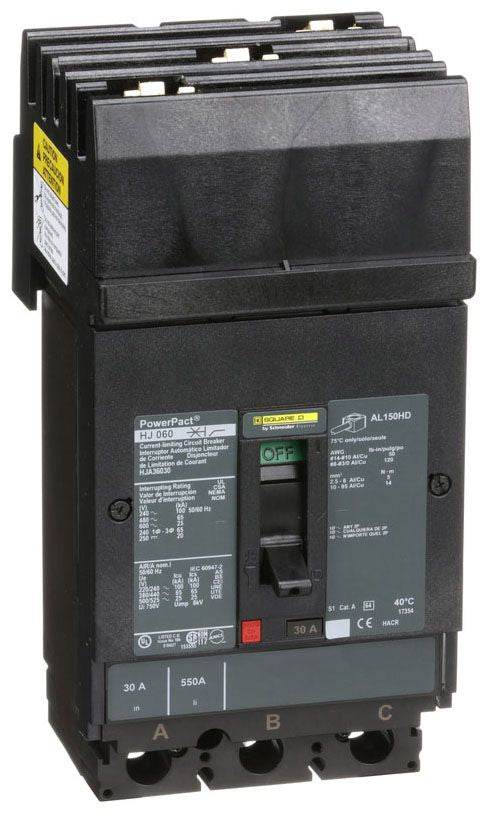

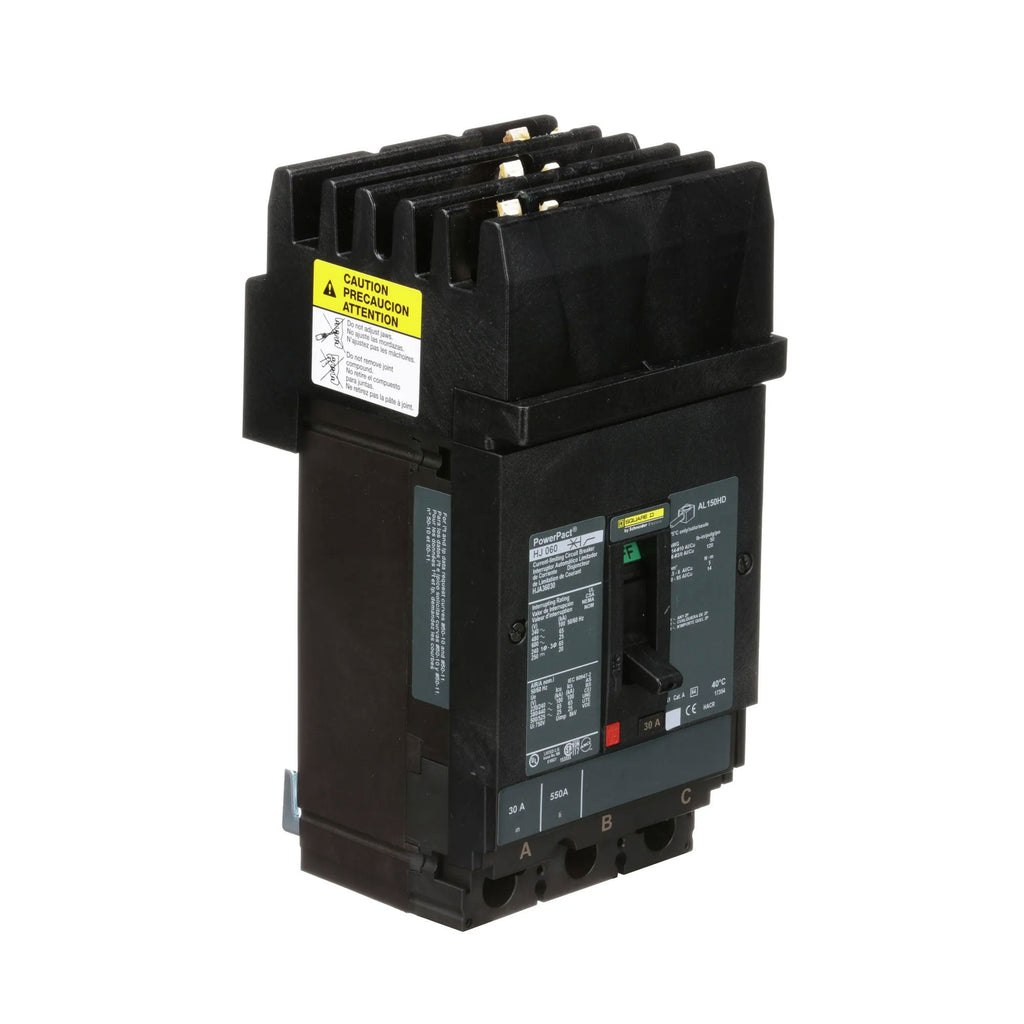

HJA36030 - Schneider Electric (Square D) 3-Pole 30 A 600 V AC I-Line Circuit Breaker, PowerPact HJA

HJA36030

HJA36030 is a PowerPact H-frame molded case circuit breaker manufactured by Schneider Electric (Square D). This Type HJA device is rated for 30 A, 3 poles, and 600 V AC, designed for I-Line panelboard and switchboard applications. It provides thermal-magnetic protection for overload and short-circuit conditions. The I-Line plug-on line-side with load-side lugs enables fast installation and reliable service in commercial and industrial distribution systems.

• Part Number: HJA36030
• Manufacturer: Schneider Electric (Square D)
• Family: PowerPact H-Frame, Type HJA (I-Line)
• Poles: 3
• Amperage Rating: 30 A
• Voltage Rating: 600 V AC
• Interrupting Ratings (typical): 100 kA @ 240 V AC; 65 kA @ 480 V AC; 25 kA @ 600 V AC
• Trip Unit: Fixed thermal-magnetic (LI)
• Line/Load: I-Line plug-on (line), mechanical lugs (load)
• Mounting: I-Line
• Certifications: UL 489 Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA36030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901491118
• GTIN : 00785901491118
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
