HJA261004 - Square D 100A 600V 2-Pole PowerPact HJA Circuit Breaker I-Line Plug-In

HJA261004

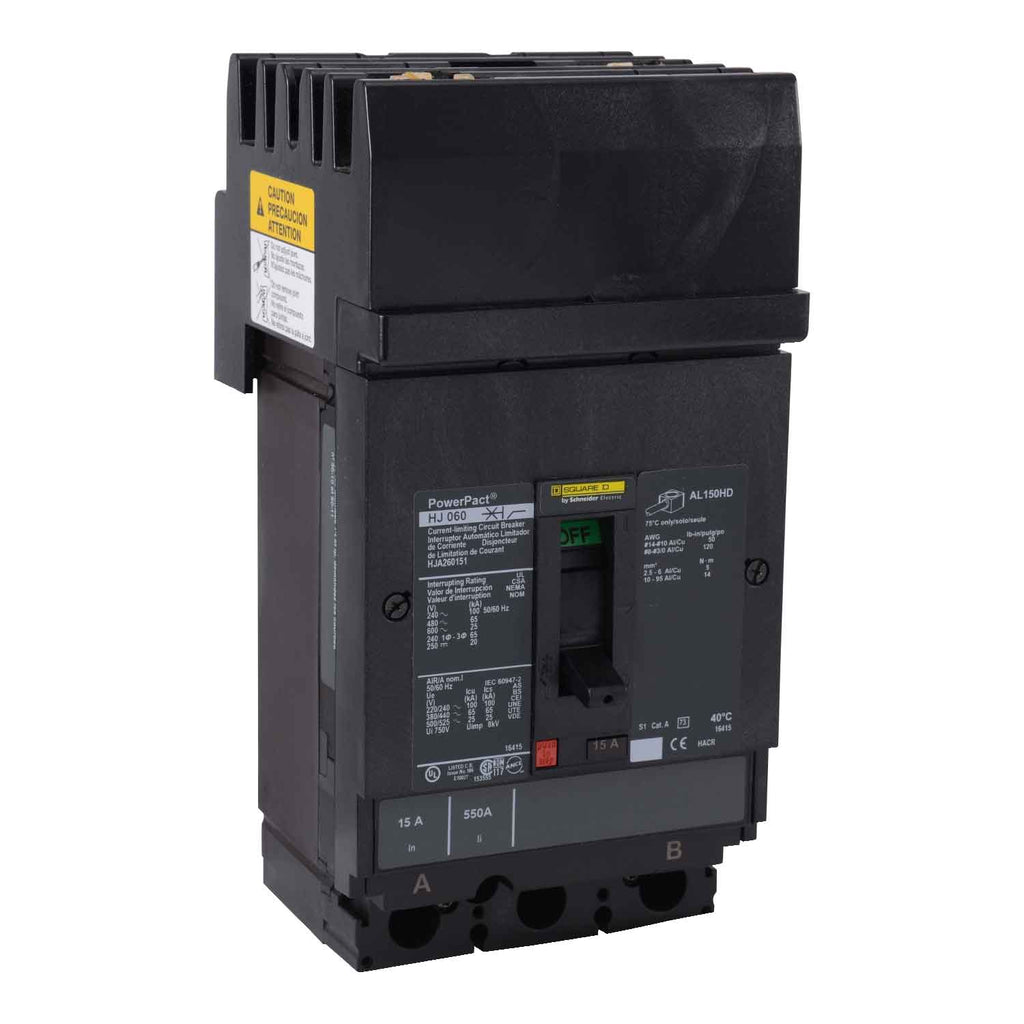

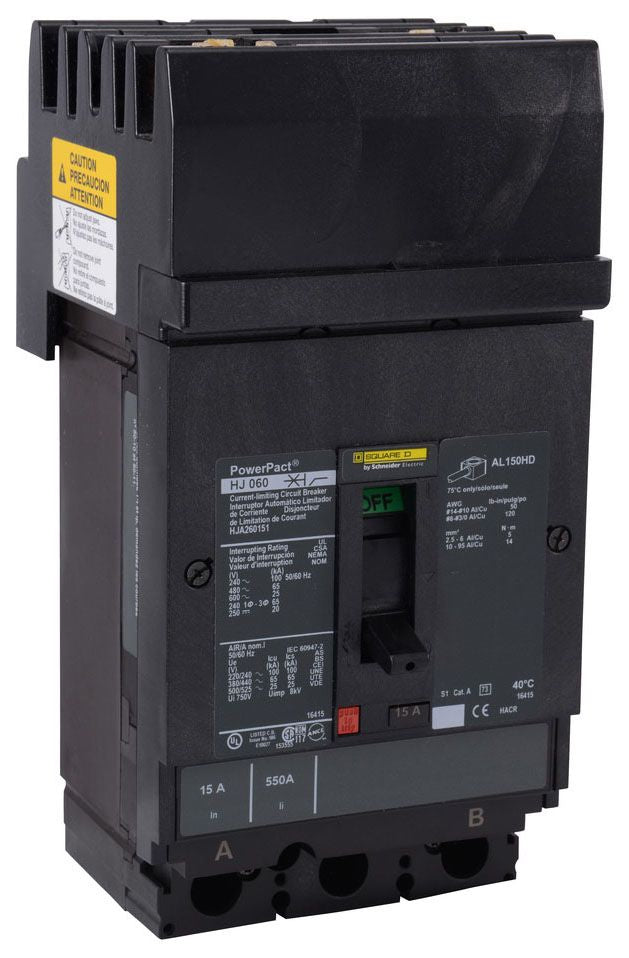

HJA261004 is a Square D PowerPact HJA series 2-pole circuit breaker rated for 100 amps and 600 volts with thermal magnetic protection.This molded case circuit breaker features an I-Line style plug-in mounting, long-time and instantaneous trip functions, and is current limiting for enhanced protection. It is suitable for reverse fed applications and has a non-interchangeable trip unit. The breaker is UL listed and rated for 65kA interrupting capacity at 480V.

Key Specifications
• Manufacturer: Square D
• Series/Frame: PowerPact HJA
• Amperage: 100A
• Voltage: 600V AC, 250V DC
• Poles: 2
• Mounting Type: I-Line Style Plug-In
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Interrupt Rating: 65kA @ 480V
• Phase: Single Phase (B & C phase connection)
• Current Limiting: Yes
• Certifications: UL Listed, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA261004
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901939320
• GTIN : 00785901939320
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
