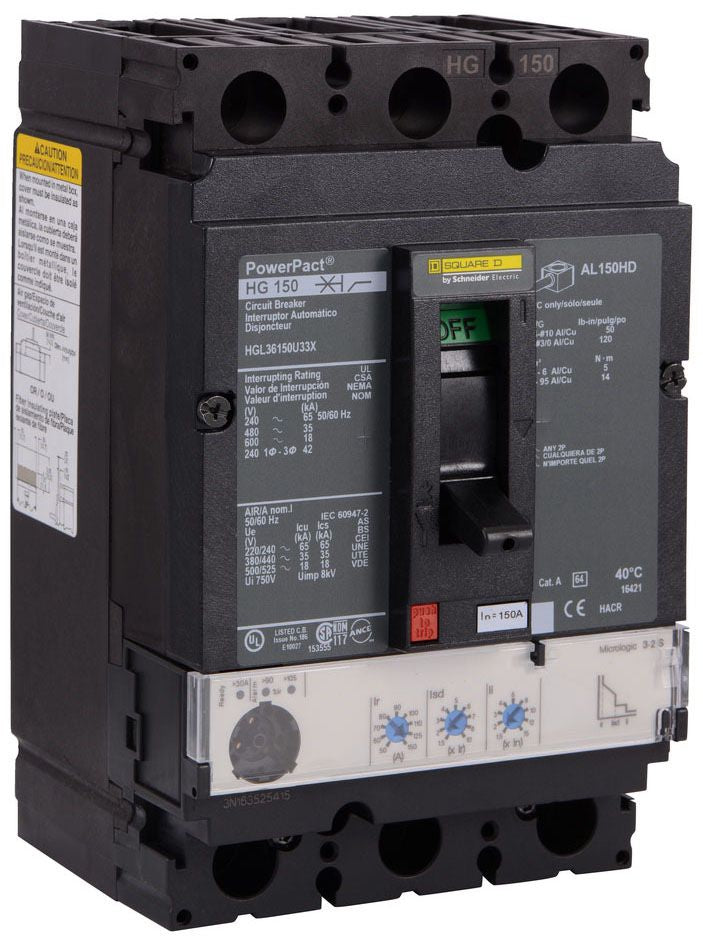

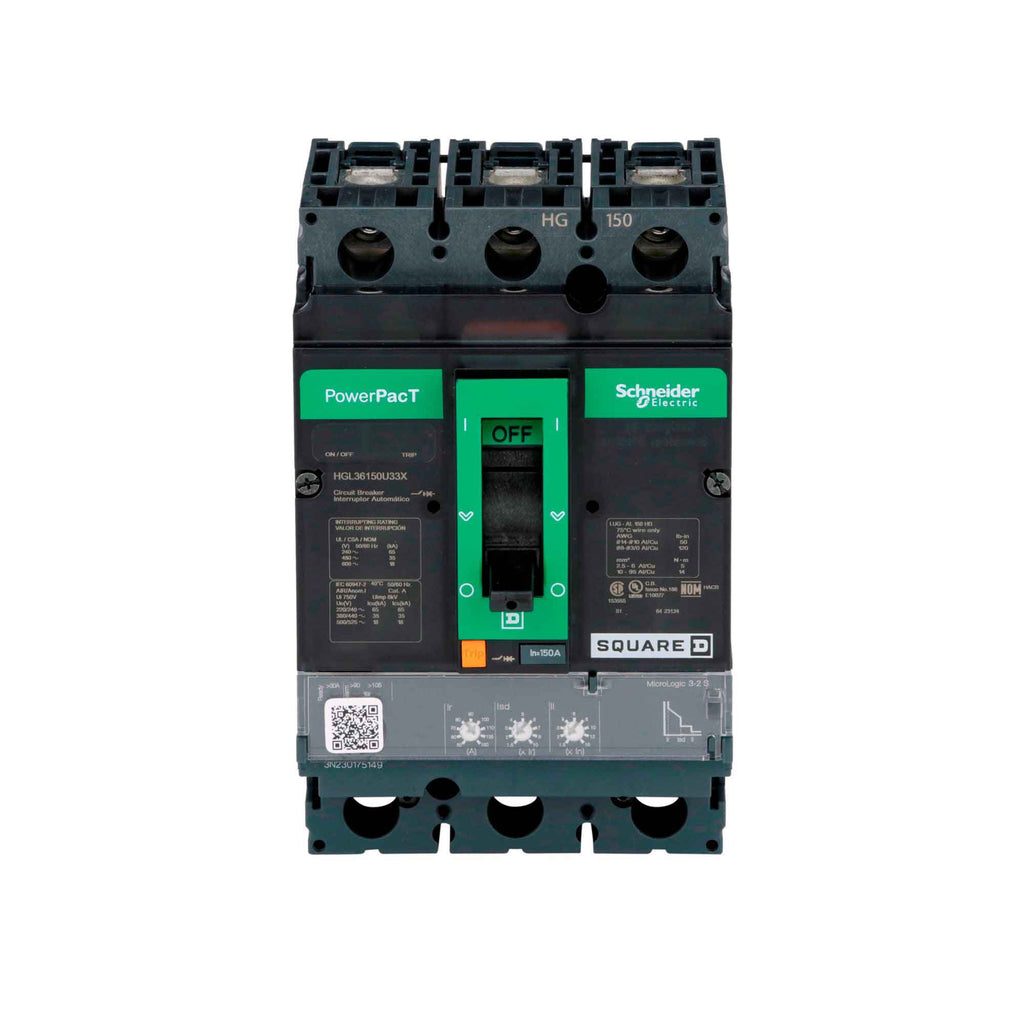

HGL36150U33X - Square D 150A 600V 3 Pole Molded Case Circuit Breaker H Frame

HGL36150U33X

HGL36150U33X is a 3 pole, 150 amp, 600 volt molded case circuit breaker from Square D's Powerpact HGL series.This Square D HGL36150U33X circuit breaker features a unit mounting type with a solid state electronic trip unit providing LSI (long-time, short-time, and instantaneous) protection functions. It has an interrupting rating of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC, suitable for demanding industrial and commercial power distribution applications. The breaker is UL, CSA, IEC, CE, and CCC certified, and supports line and load lug terminal connections for feed-thru wiring.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 600 V AC
• Poles: 3
• Frame Type: HGL (Powerpact H Frame)
• Mounting Type: Unit Mount
• Interrupting Rating: 65 kA @ 240 V AC, 35 kA @ 480 V AC, 18 kA @ 600 V AC
• Trip Unit: Solid State LSI (Long-Time, Short-Time, Instantaneous)
• Terminal Connection: Line and Load Lug (Feed-Thru)
• Certifications: UL, CSA, IEC, CE, CCC
• Dimensions: 4.36" L x 4.12" W x 6.4" H
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36150U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 150A/HG
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3/0 AWG
• Breaker Type : Micrologic Standard W LSI Functionality
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901133599
• GTIN : 00785901133599
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
