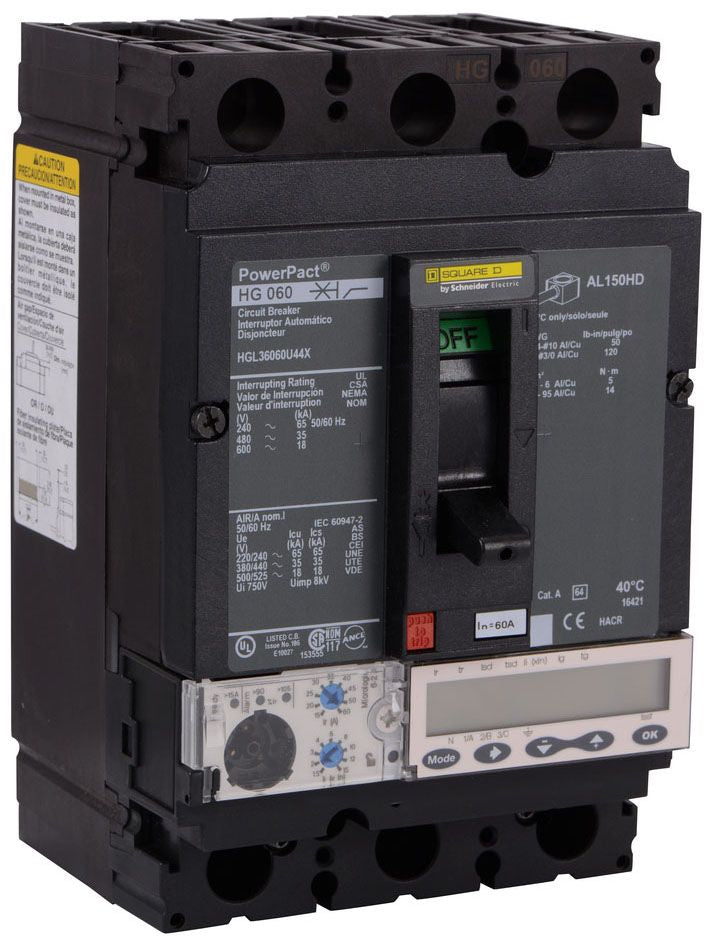

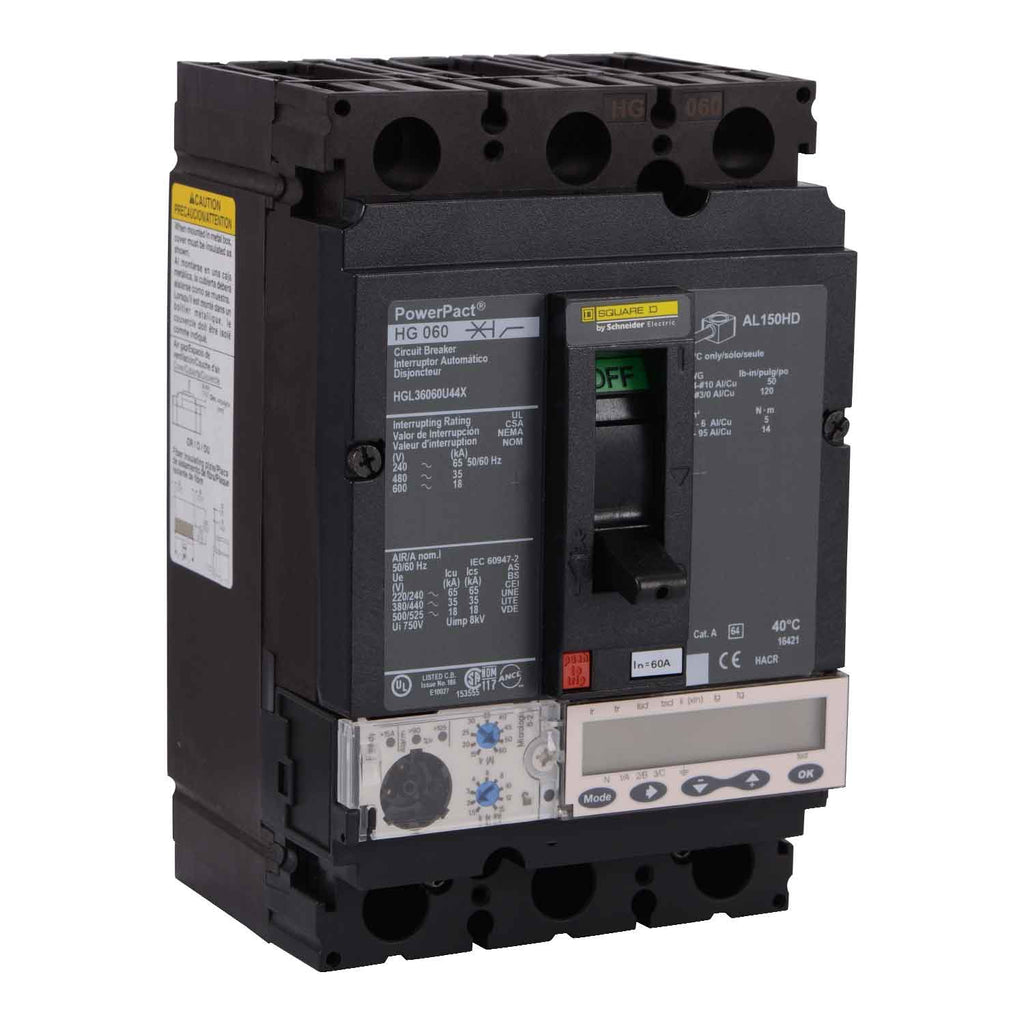

HGL36060U44X - Square D Powerpact H 60A 600V 3 Pole Molded Case Circuit Breaker w/ Micrologic 6.2A LSIG Trip

HGL36060U44X

HGL36060U44X is a 3 pole, 60 amp, 600 volt molded case circuit breaker from the Square D Powerpact H series, featuring Micrologic 6.2A electronic trip unit with LSIG protection for reliable circuit interruption in commercial and industrial applications. This circuit breaker is designed for feed-thru mounting and reverse fed applications, providing long-time, short-time, instantaneous, and ground fault trip functions. It features solid state electronic trip technology, line and load side lug terminals, and is suitable for use in systems requiring high interrupting capacity and precise protection.

• Manufacturer: Square D
• Series/Frame: Powerpact H / HGL
• Amperage Rating: 60 A
• Voltage Rating: 600 V AC
• Number of Poles: 3
• Interrupt Rating: 65 kA @ 240V AC, 35 kA @ 480V AC, 18 kA @ 600V AC
• Mounting Type: Unit Mount
• Connection Type: Feed-Thru, Line and Load Side Lug
• Wire Gauge: AWG 14 to AWG 3/0 Copper/Aluminum
• Terminal Type: Box Lug
• Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
• Certifications: UL, CSA, CE, CCC, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36060U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : Box Lug
• Frame Size : 150A/HG
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3/0 AWG
• Breaker Type : Micrologic Ammeter W LSIG Functionality
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901342885
• GTIN : 00785901342885
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
