HGL26100 - Square D 100 Amp 2 Pole 600 VAC Thermal Magnetic Circuit Breaker H Frame

HGL26100

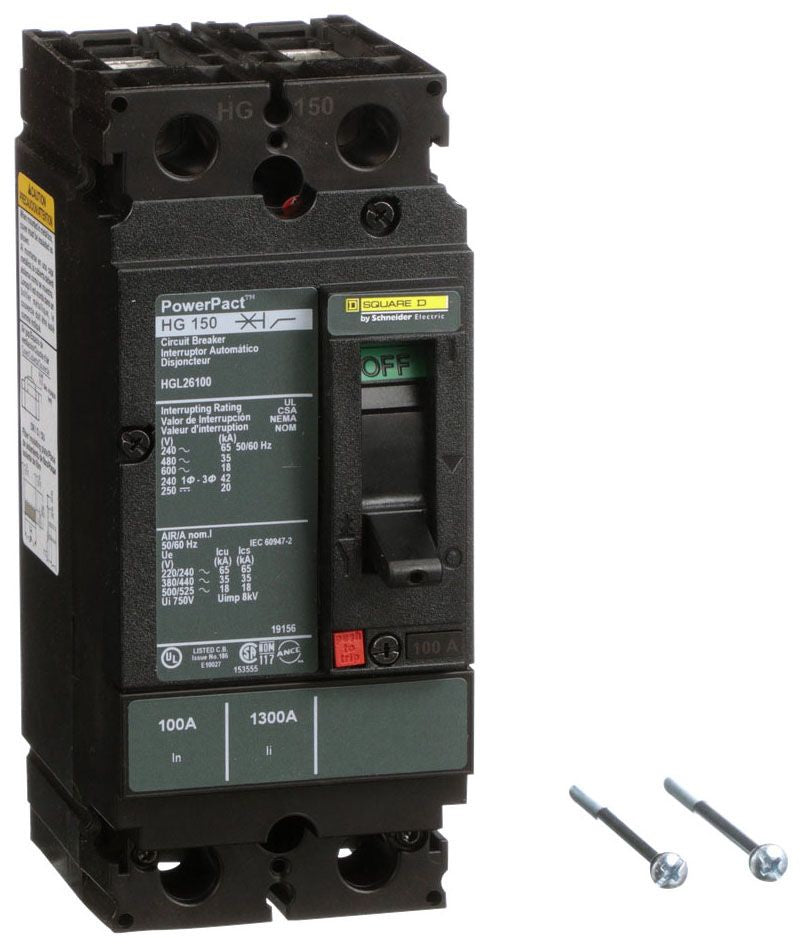

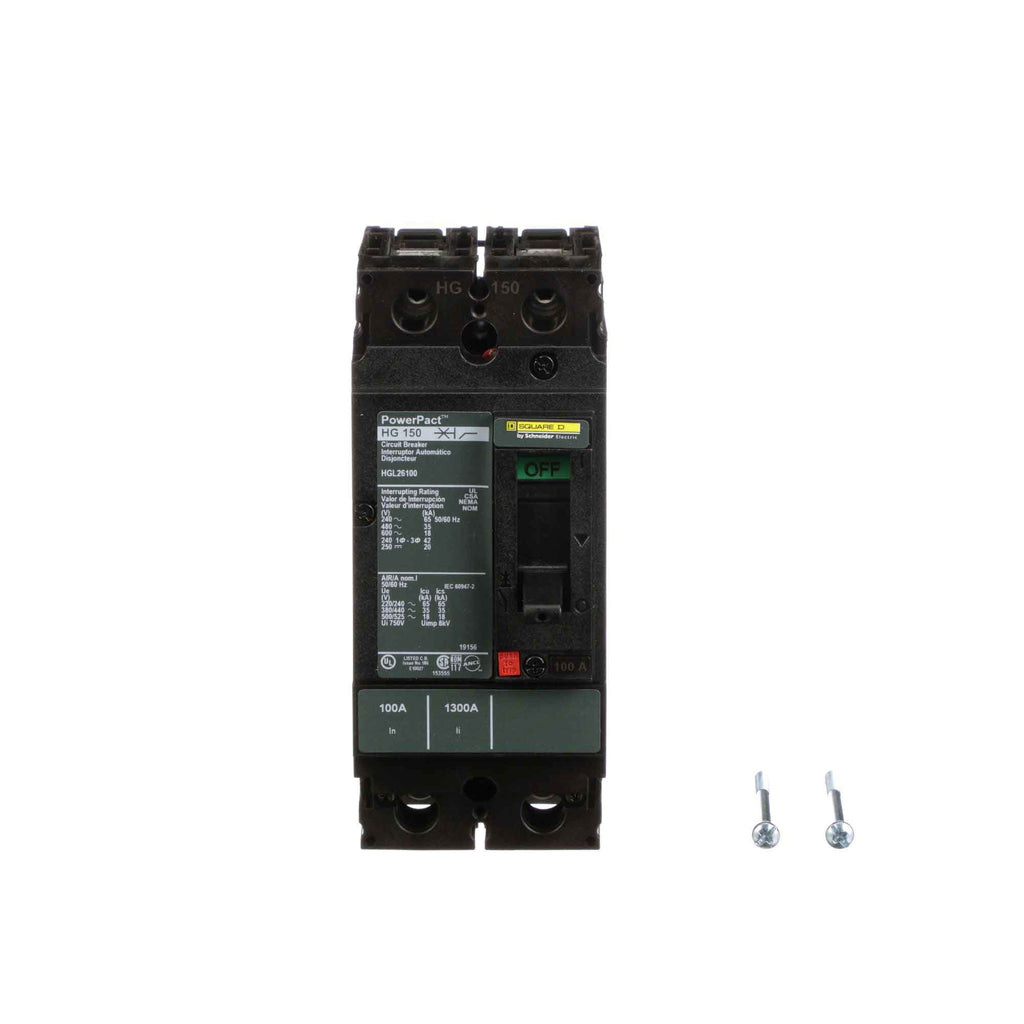

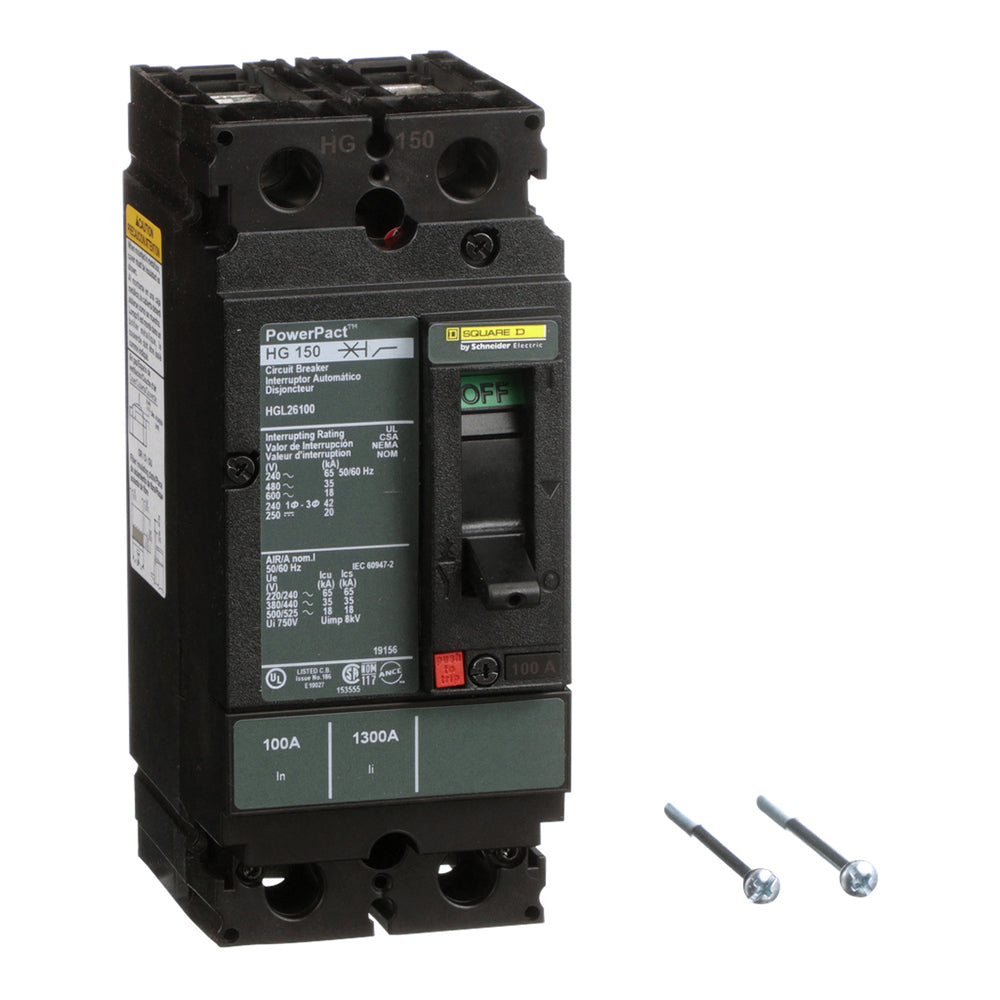

HGL26100 is a Square D PowerPact H Frame molded case circuit breaker rated for 100 amps and 600 VAC with 2 poles and thermal magnetic trip unit.This circuit breaker features a high interrupting capacity with ratings up to 35kA at 480V and 18kA at 600VAC. It is UL 489 listed and suitable for unit mount applications. The breaker includes long-time and instantaneous trip functions and line and load side lug terminals. It is designed for reliable protection in industrial and commercial electrical systems.

• Amperage: 100 Amp
• Voltage Rating: 600 VAC / 250 to 500 VDC
• Poles: 2
• Mounting Type: Unit Mount
• Interrupt Rating: 35kA @ 480V, 18kA @ 600VAC
• Series/Frame: PowerPact H Frame (HGL)
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Certifications: UL 489 Listed, CSA, NEMA, IEC, CE Marked
• Connection: Line & Load Side Lugs
• Dimensions (HxWxD): 3.39 x 4.09 x 6.42 inches
• Weight: Approximately 4.85 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL26100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901883685
• GTIN : 00785901883685
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.049
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
