HGL26050 - Square D 50 Amp 600 Volt 2 Pole Powerpact H Frame Molded Case Circuit Breaker

HGL26050

HGL26050 is a Square D Powerpact H Frame molded case circuit breaker rated for 50 amps and 600 volts with 2 poles.This thermal magnetic, current limiting type breaker features a unit mount design with a G frame and offers interrupt ratings of 65 kA at 240 VAC, 35 kA at 480 VAC, and 18 kA at 600 VAC. It is UL 489 listed and suitable for use in a variety of industrial and commercial applications.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 600 VAC / 500 VDC max
• Poles: 2
• Frame Type: Powerpact H (G Frame)
• Mounting Type: Unit Mount
• Interrupt Rating: 65 kA @ 240 VAC, 35 kA @ 480 VAC, 18 kA @ 600 VAC
• Trip Unit: Thermal Magnetic
• Certifications: UL 489 Listed
• Dimensions: Approx. 4.36" L x 2.74" W x 6.4" H
• Enclosure Type: NEMA AB1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL26050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901883777
• GTIN : 00785901883777
• Country of Origin : Mexico

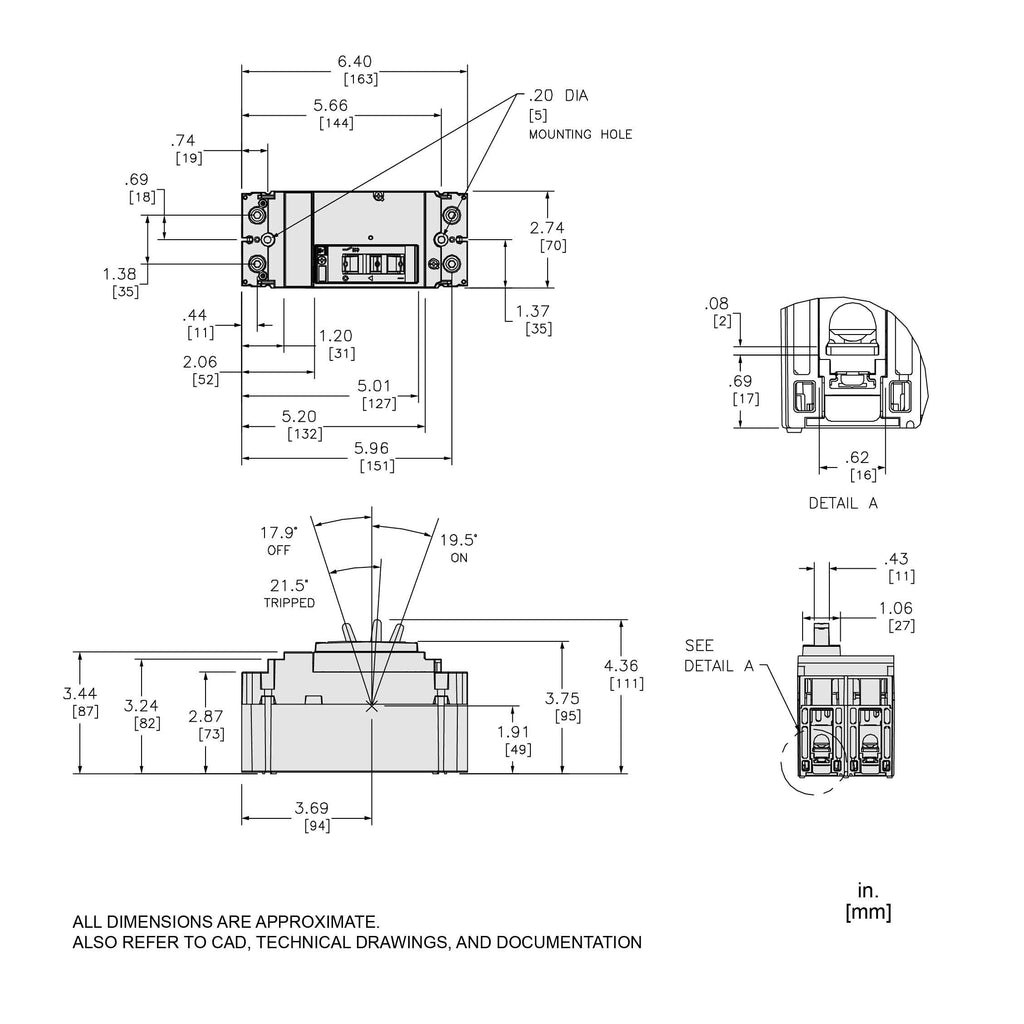

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
