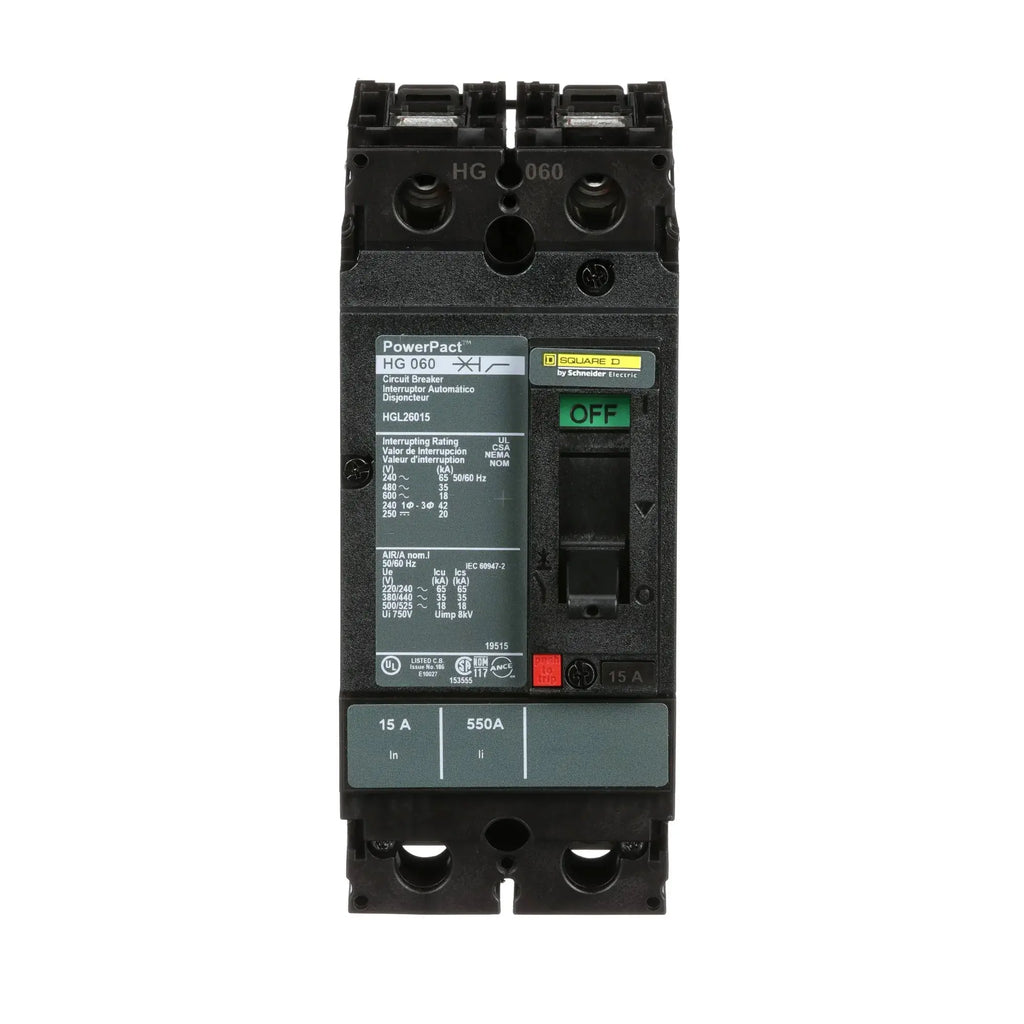

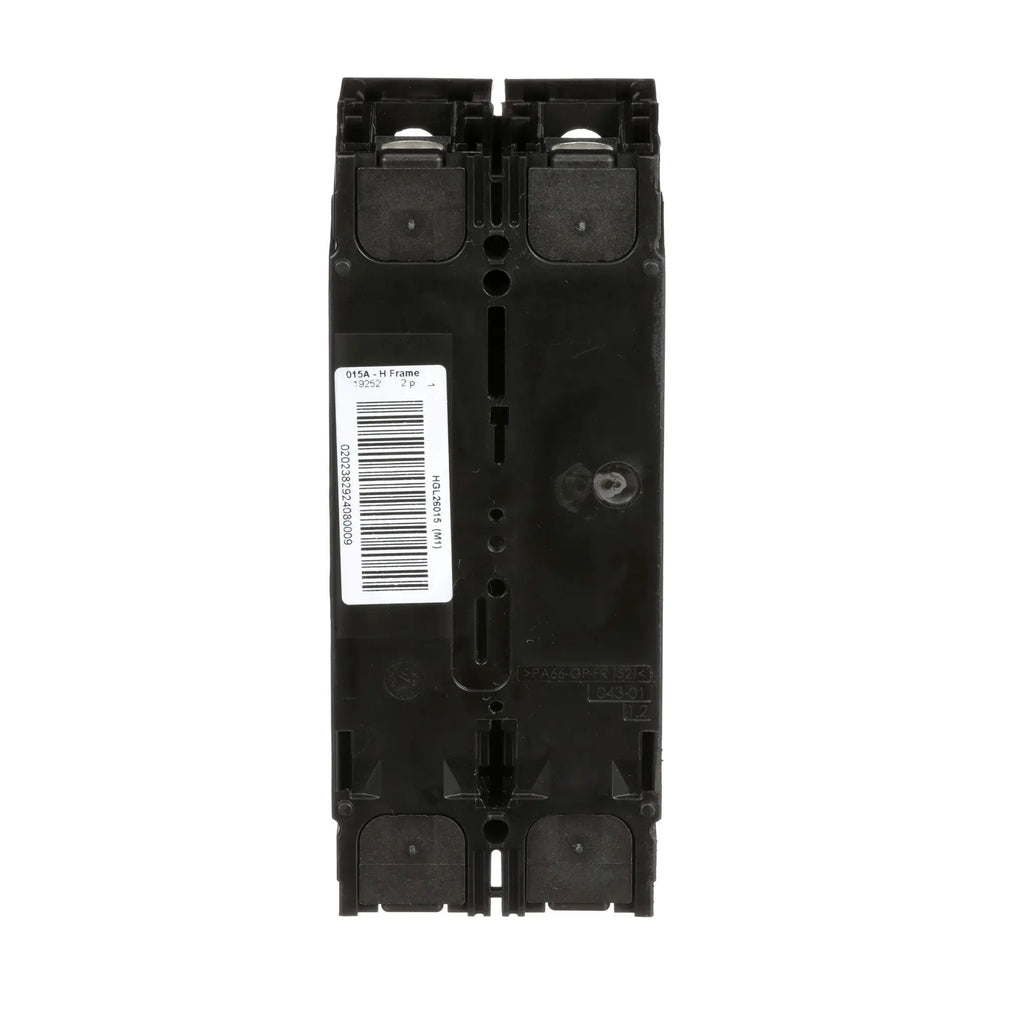

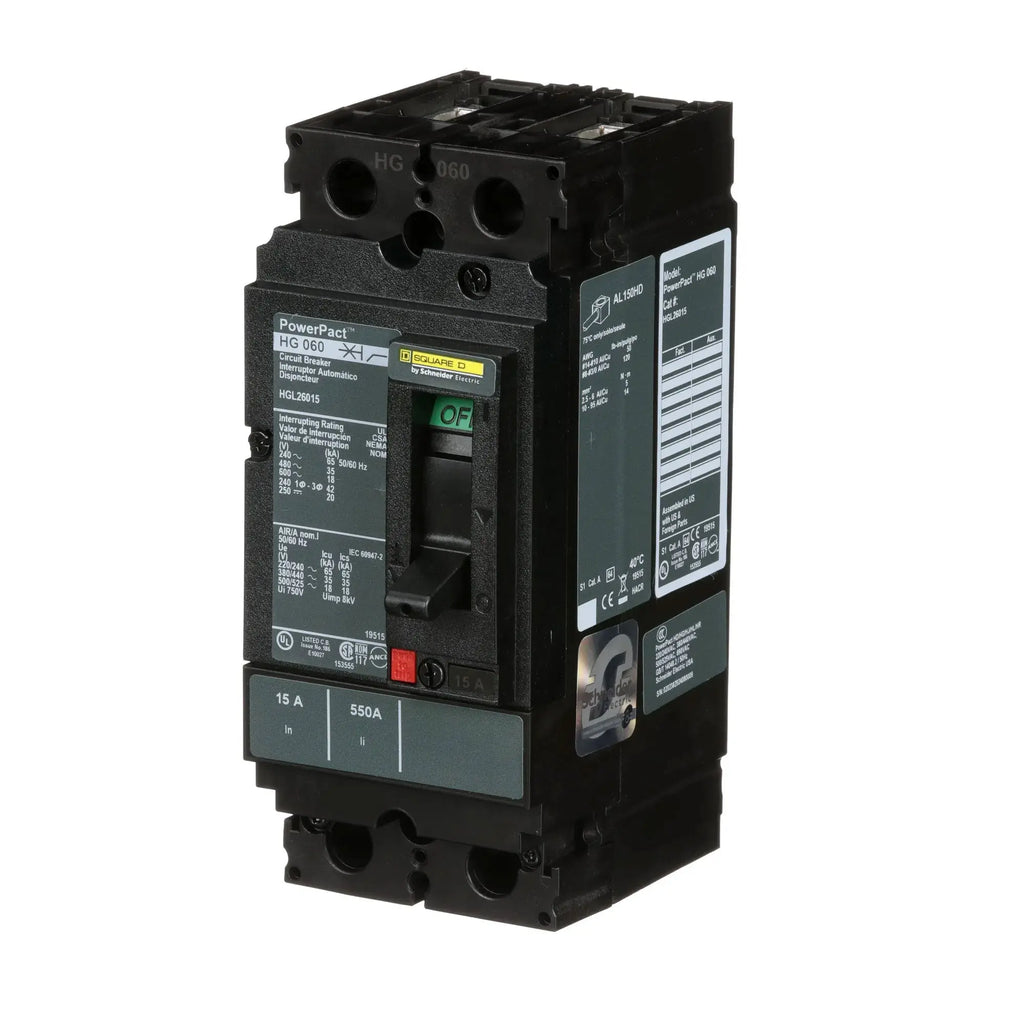

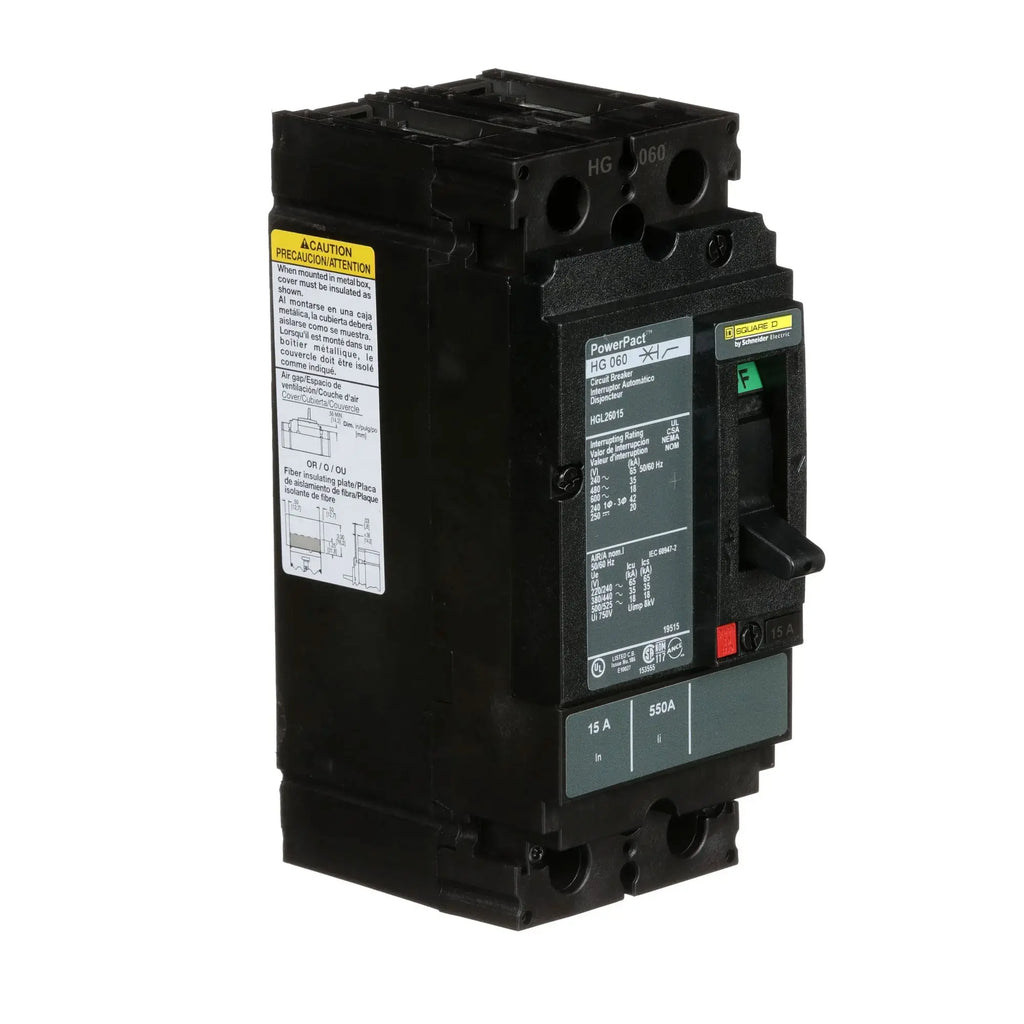

HGL26020 - Square D 20 Amp 2 Pole 600 Volt Molded Case Circuit Breaker Powerpact H Frame

HGL26020

HGL26020 is a Square D 20 Amp 2 Pole Molded Case Circuit Breaker designed for reliable circuit protection in industrial and commercial applications.This Powerpact H Frame breaker features a thermal magnetic trip unit, unit mount design, and is rated for up to 600 VAC or 500 VDC operation. It offers a high interrupt rating of 65 kA at 240 VAC, 35 kA at 480 VAC, and 18 kA at 600 VAC, ensuring robust protection against overloads and short circuits. The breaker is UL 489 listed and compatible with a wide range of terminal options for flexible installation.

Key Specifications
• Amperage: 20 Amp
• Poles: 2
• Voltage Rating: 600 VAC / 500 VDC max
• Interrupt Rating: 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC
• Frame: Powerpact H
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic
• Certifications: UL 489 Listed
• Dimensions: 6.4" H x 2.74" W x 4.36" D
• Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HGL26020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable



Product Data

• UPC : 785901433767
• GTIN : 00785901433767
• Country of Origin : Mexico

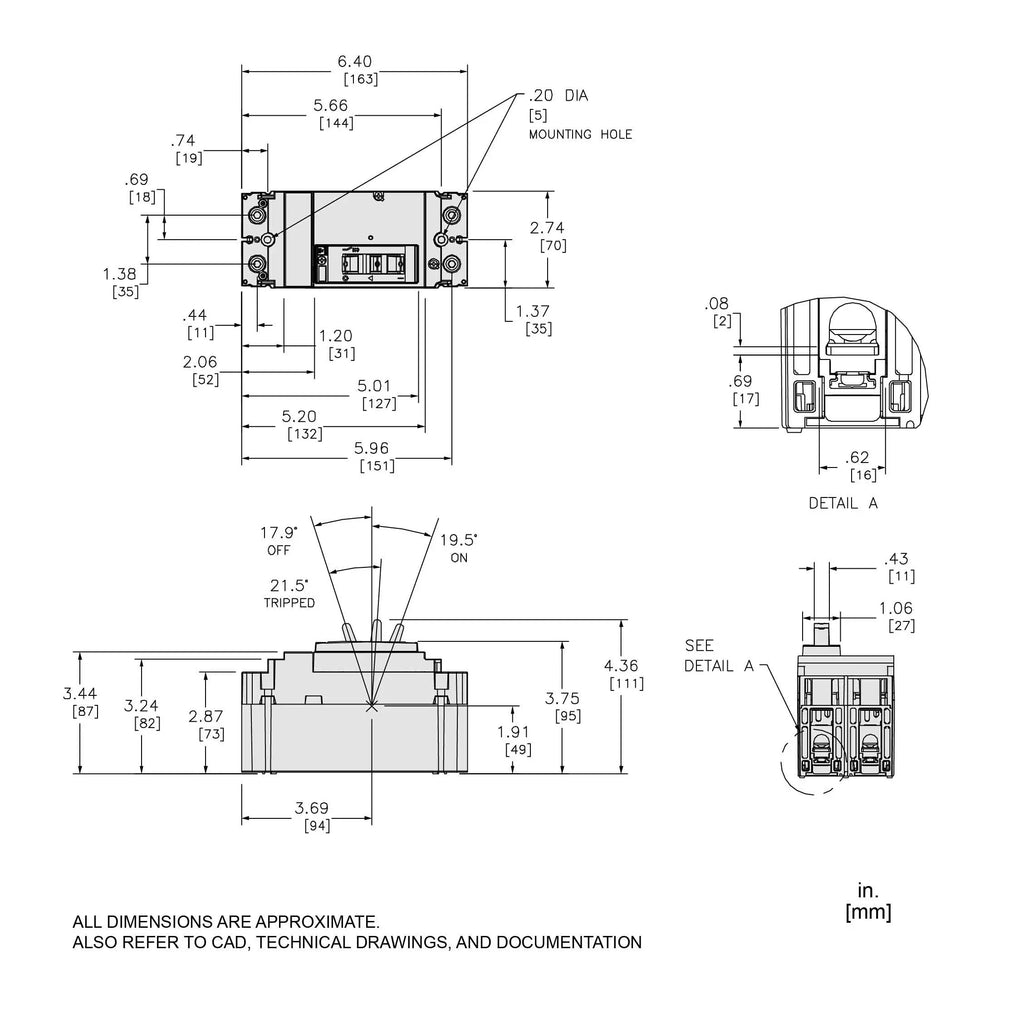

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
