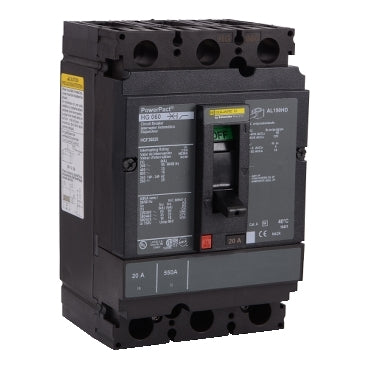

HGF36035 - Square D 35 Amp 600V 3 Pole Bolt-On Thermal Magnetic Circuit Breaker H Frame

HGF36035

HGF36035 is a Square D 35 Amp, 3 Pole, 600 Volt bolt-on thermal magnetic circuit breaker from the H Frame series.This molded case circuit breaker provides reliable circuit protection with a thermal magnetic trip unit and an interrupt rating of 18kA at 600VAC. It is designed for bolt-on mounting and complies with UL 489 standards. The breaker is suitable for use in PowerPacT H Frame applications requiring 35 Amp current rating and 3 poles.

Key Specifications
• Amperage: 35 Amp
• Voltage Rating: 600 VAC
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA at 600 VAC
• Frame Type: H Frame
• Trip Unit: Thermal Magnetic
• UL Listed: UL 489
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: HGF36035
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGF
• Voltage : 600
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901780069
• GTIN : 00785901780069
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
