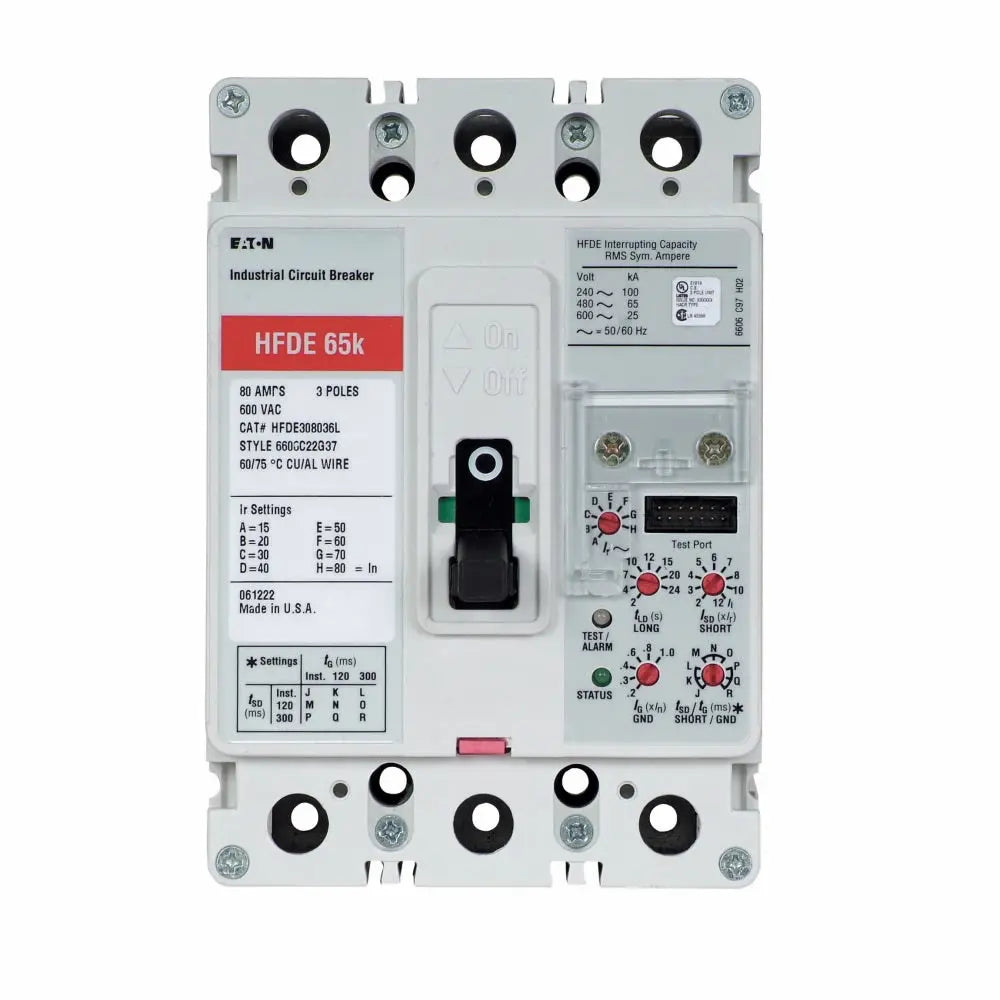

HFDE308036L - Eaton 80A 600V 3 Pole Electronic Molded Case Circuit Breaker F-Frame

HFDE308036L

HFDE308036L is an Eaton 3 pole electronic molded case circuit breaker rated for 80 amps and 600 volts, designed for reliable power distribution protection.This Eaton Series C F-frame breaker features an electronic LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) trip unit with Digitrip 310 RMS technology. It supports feed-thru connection and offers a high interrupt rating of 100 kAIC at 240 VAC and 65 kAIC at 480 VAC. The breaker is suitable for industrial and commercial applications requiring robust circuit protection.

Key Specifications
• Amperage: 80 Amps
• Voltage Rating: 600 VAC / 250 VDC max
• Poles: 3 Pole
• Interrupt Rating: 100 kAIC @ 240 VAC, 65 kAIC @ 480 VAC
• Frame/Series: Eaton Series C, F-Frame
• Trip Unit: Electronic LSIG (Digitrip 310 RMS)
• Connection Type: Feed-Thru
• Type: HFDE Molded Case Circuit Breaker
• Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HFDE308036L
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFDE
• Voltage : 480 AC
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : F Frame
• Protection : Solid State



Product Data

• UPC : 786685112749
• GTIN : 00786685112749
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Certification : UL Listed
