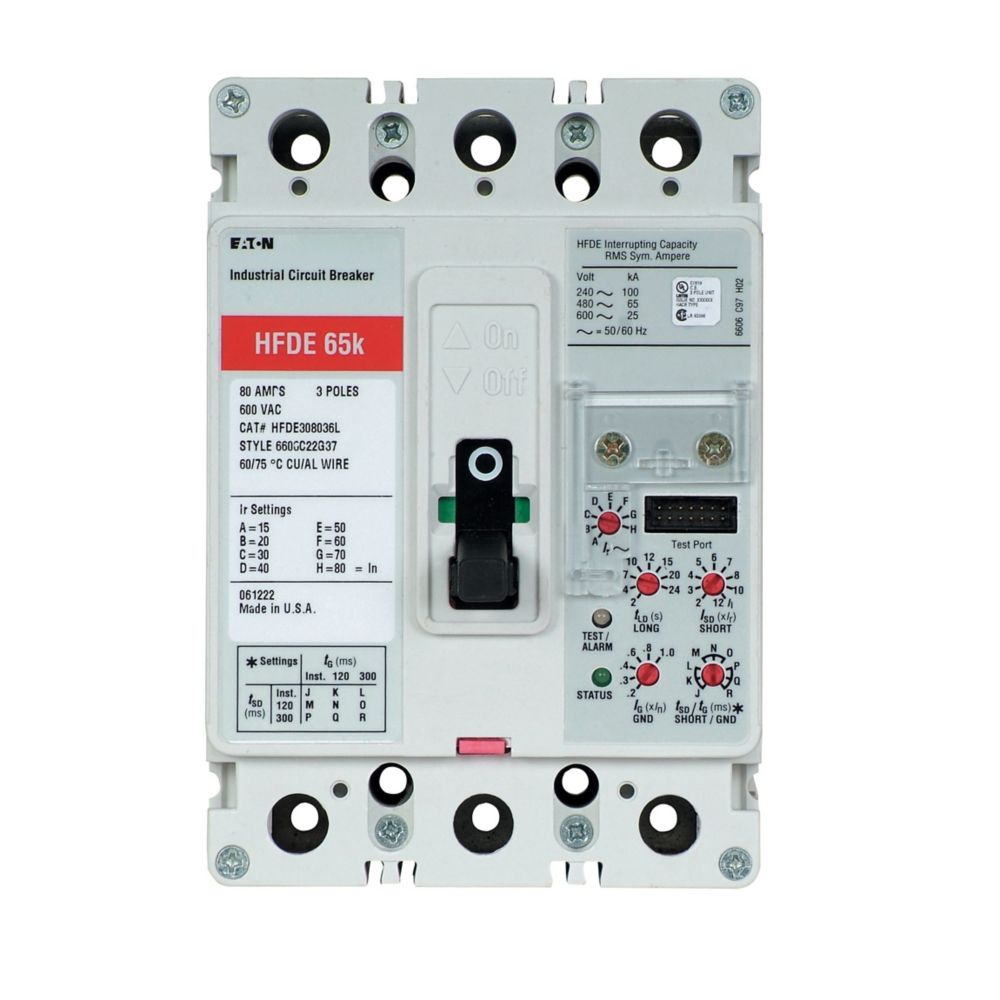

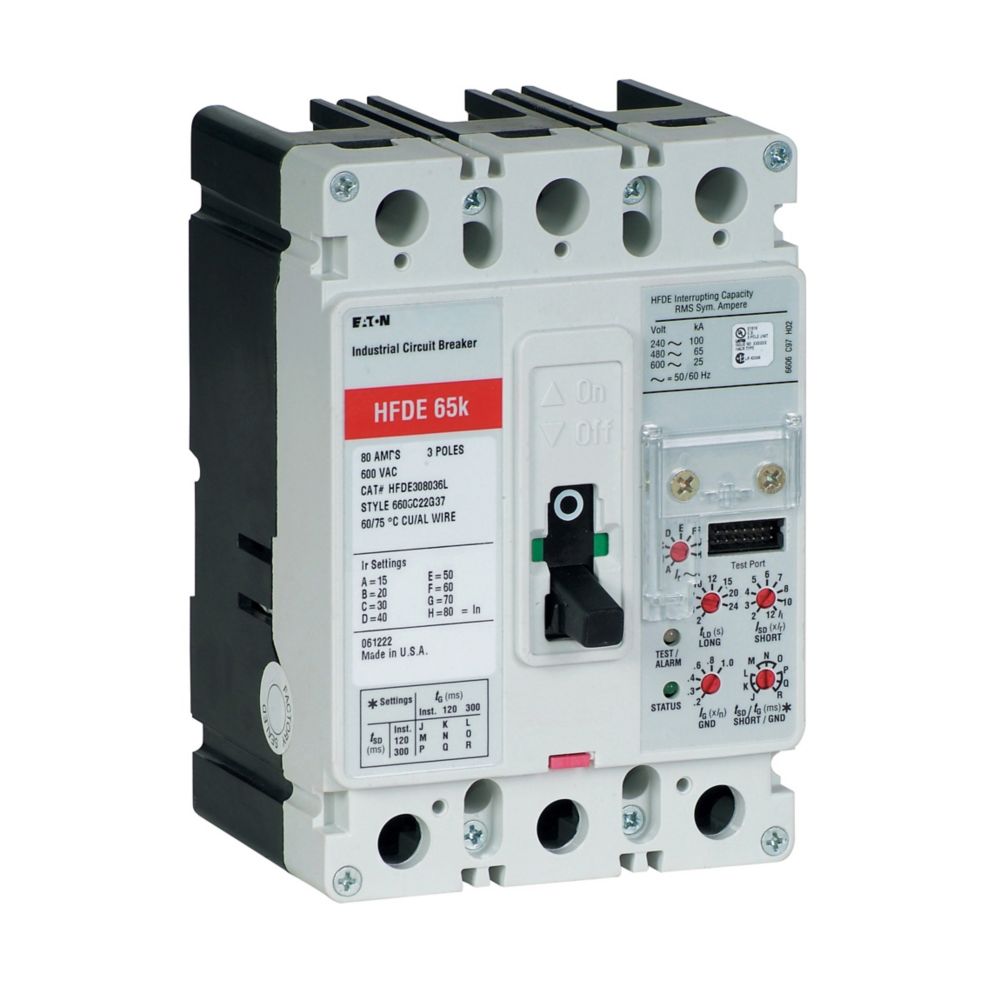

HFDE308035 - Cutler Hammer (Eaton) Series C 80A 600V 3-Pole Electronic Molded Case Circuit Breaker, F-Frame, Digitrip 310 RMS, 65kAIC at 480VAC

HFDE308035

HFDE308035 - Eaton Series C F-frame electronic molded case circuit breaker with Digitrip 310 RMS LSG trip, three-pole, 80A, 600VAC.Eaton HFDE308035 features electronic LSG trip type (Long-time, Short-time, Ground fault protection), F-frame design for 15-80A range, panel mounting, and high interrupting ratings including 100kAIC at 240VAC and 65kAIC at 480VAC. Rated for 600VAC/250VDC systems at 50/60Hz with load side terminals, this UL 489 listed breaker provides superior arc interruption via patented blow-open contact design.

• Part Number: HFDE308035
• Manufacturer: Eaton
• Amperage: 80A
• Poles: 3
• Maximum Voltage: 600VAC / 250VDC
• Frame/Series: F-Frame, Series C
• Trip Unit: Digitrip 310 RMS Electronic LSG
• Mounting Type: Panel
• Interrupt Rating: 100kAIC @ 240VAC, 65kAIC @ 480VAC, 25kAIC @ 600VAC
• Frequency: 50/60Hz
• Certifications: UL 489, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFDE308035
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFDE
• Voltage : 480 AC
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSG - Long-Time, Short-Time and Ground Fault Trip
• Frame Size : F Frame
• Protection : Solid State

Product Data

• UPC : 786685112602
• GTIN : 00786685112602
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.2
• Certification : UL Listed
