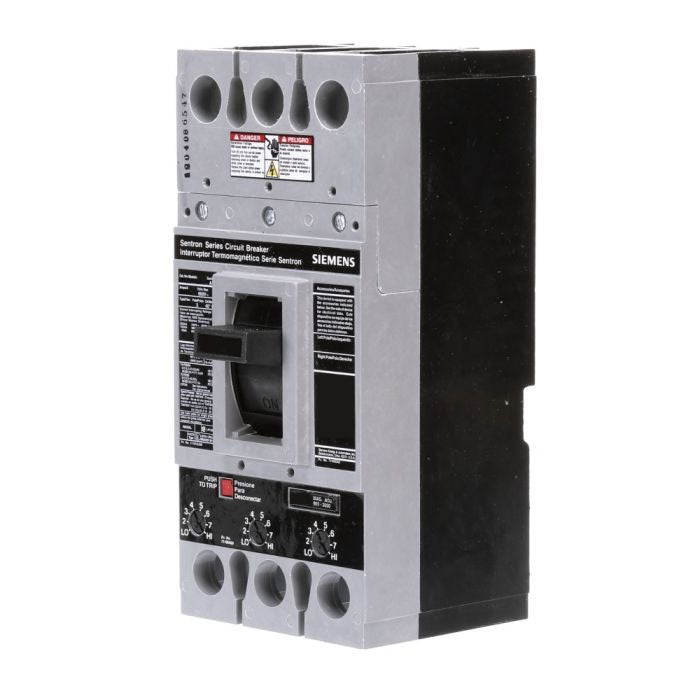

HFD63B150L - Siemens 150 Amp 600 Volt 3-Pole Molded Case Circuit Breaker HFD Series Thermal Magnetic

HFD63B150L

HFD63B150L is a Siemens 3-pole molded case circuit breaker rated for 150 amps and 600 volts, designed for reliable circuit protection in industrial and commercial applications. This breaker features a thermal-magnetic trip unit for precise overload and short circuit protection. It belongs to the Siemens HFD series, known for robust construction and dependable performance.The HFD63B150L circuit breaker supports feed-thru connection type and is suitable for use in electrical distribution systems requiring 3-pole protection. It has a frame type HFD and is rated for 150 amps continuous current with a maximum voltage of 600 volts AC. The breaker provides interrupting capacity appropriate for typical industrial environments.

• Amperage: 150 Amps
• Voltage Rating: 600 Volts AC
• Poles: 3
• Series/Frame: HFD
• Trip Unit: Thermal Magnetic
• Connection Type: Feed-Thru

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: HFD63B150L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFD
• Voltage : 600 AC
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643235892
• GTIN : 00783643235892
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : Ul Listed
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
