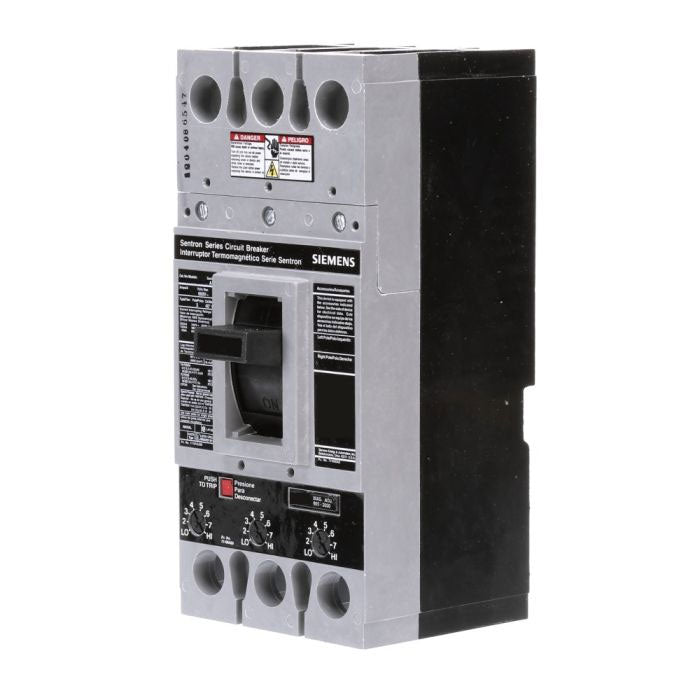

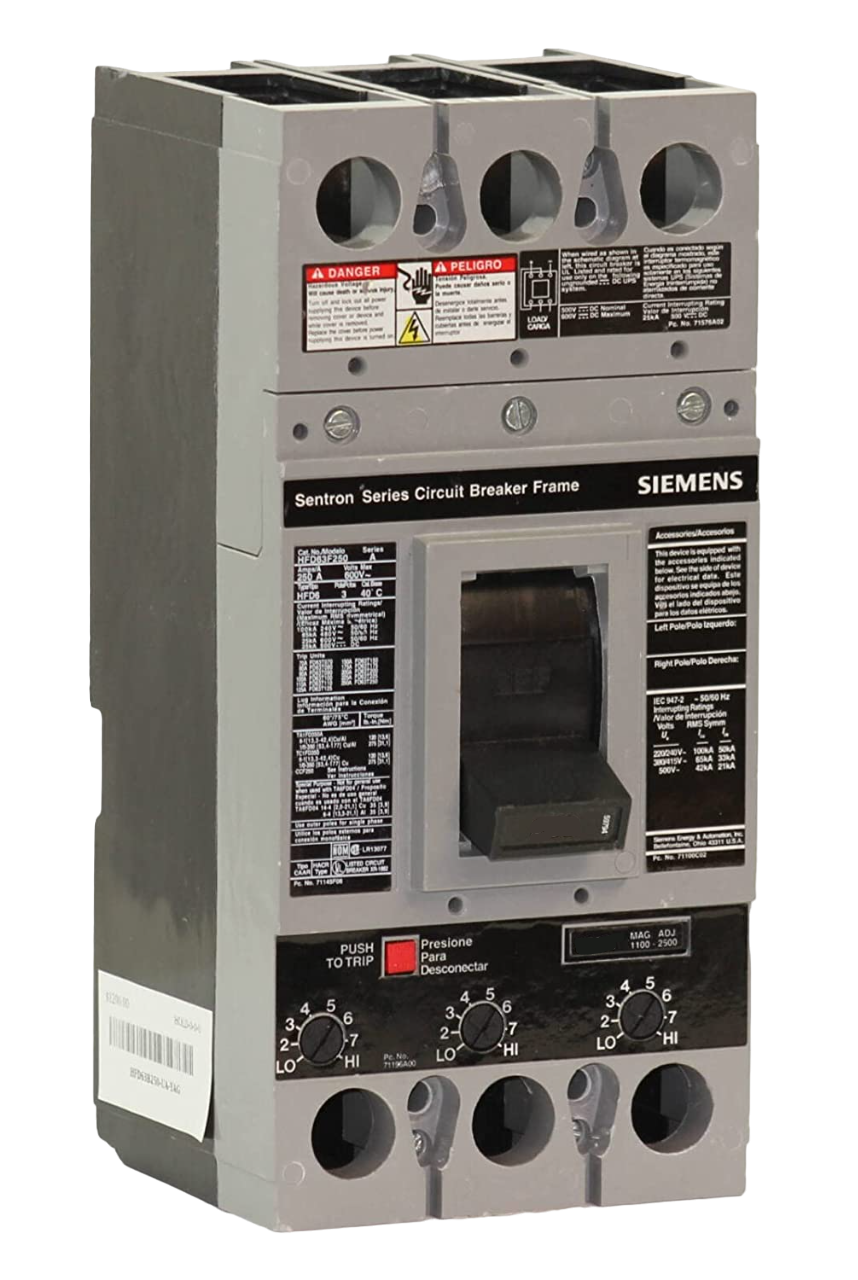

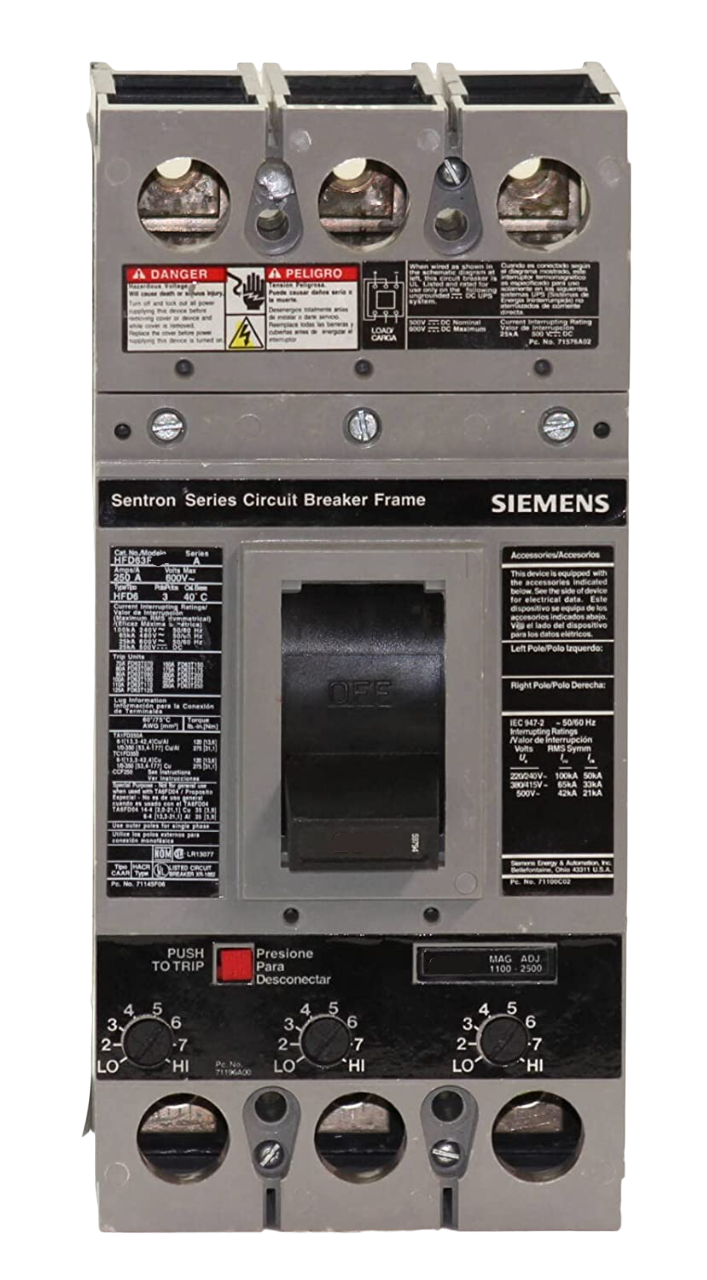

HFD63B080L - Siemens 80A 600V 3-Pole Molded Case Circuit Breaker Bolt-On FD Frame

HFD63B080L

HFD63B080L - Siemens 3-pole molded case circuit breaker with thermal-magnetic trip unit and high magnetic interrupt rating.This Siemens HFD frame circuit breaker features an interchangeable thermal-magnetic trip unit, standard breaking capacity rated for 40 deg C operation, and field-installable accessories. It provides reliable overcurrent protection for 3-phase systems with line/load lug terminals accepting 6 AWG to 350 kcmil Cu or 4 AWG to 350 kcmil Al wire.

• Part Number: HFD63B080L
• Manufacturer: Siemens
• Amperage Rating: 80 A
• Voltage Rating: 600 VAC / 500 VDC
• Number of Poles: 3
• Frame/Series: HFD / FD
• Trip Type: Thermal-Magnetic, Interchangeable
• Frequency: 50/60 Hz
• Temperature Rating: 40 deg C
• Interrupt Rating: 22-25 kA @ 600V
• Phase: 3
• Standards: UL 489, IEC 60947-2, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: HFD63B080L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFD
• Voltage : 600 AC
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643235847
• GTIN : 00783643235847
• Country of Origin : Mexico
• Dimensions : 10.63 x 5.906 x 6.693 inch
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
