Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HFD63B070

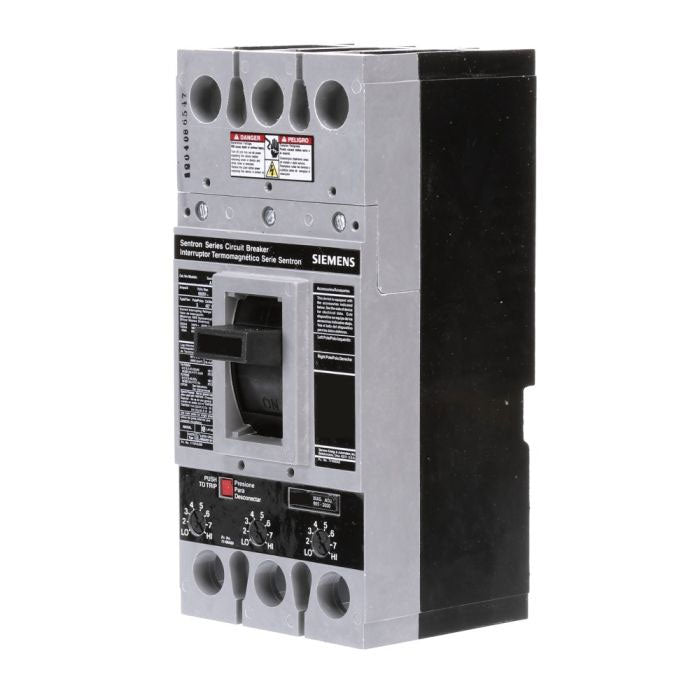

HFD63B070 is a Siemens 3 pole, 70 amp, 600 volt molded case circuit breaker designed for high interrupting capacity applications.This Siemens HFD63B070 breaker features a JD frame with thermal magnetic trip unit, bolt-on mounting, and a 65kA interrupting rating at 480V AC. It meets UL 489 and IEC 60947-2 standards, suitable for residential, commercial, and industrial use.
- Amperage: 70A
- Voltage: 600V AC
- Poles: 3
- Frame Type: JD (HFD)
- Interrupting Rating: 65kA at 480V, 25kA at 600V
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Standards: UL 489, IEC 60947-2
- Load Side Lug Terminals
- Non-Interchangeable Trip Unit
- Dimensions: Approx. 9.5" x 4.5" x 4.0"
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: HFD63B070
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HFD
- Voltage : 600 AC
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643211766
- GTIN : 00783643211766
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 9.414
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
