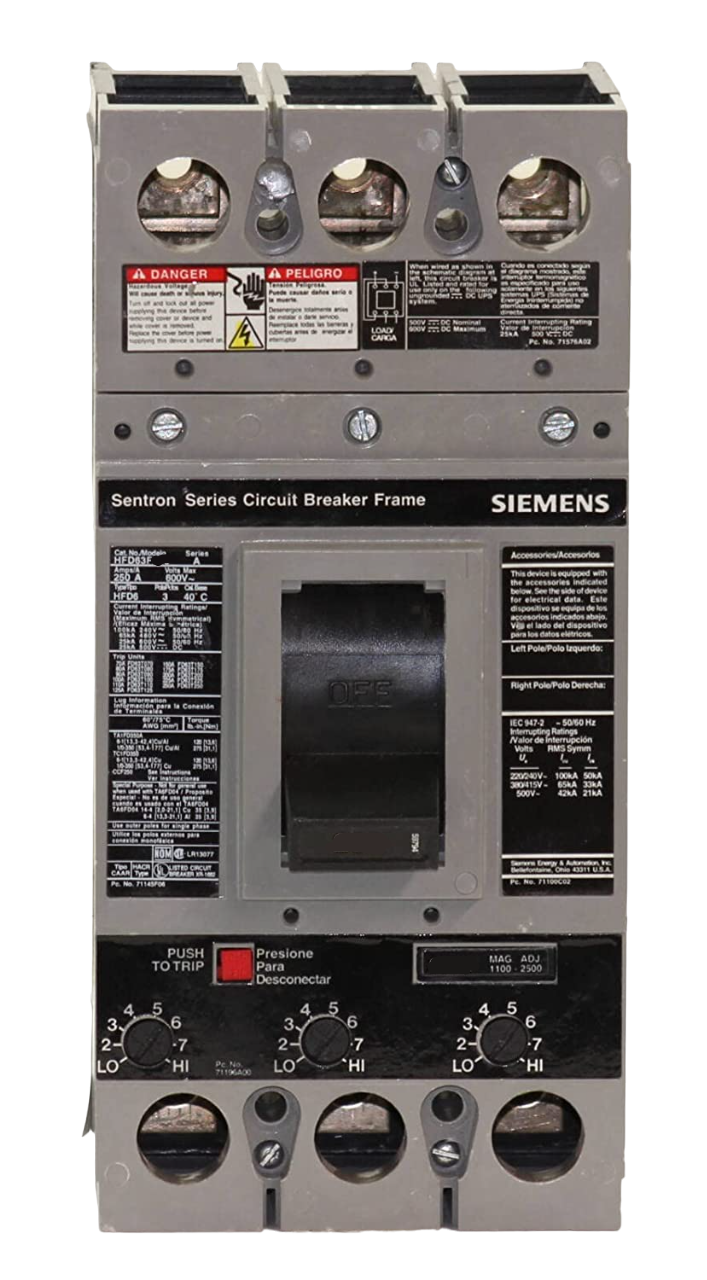

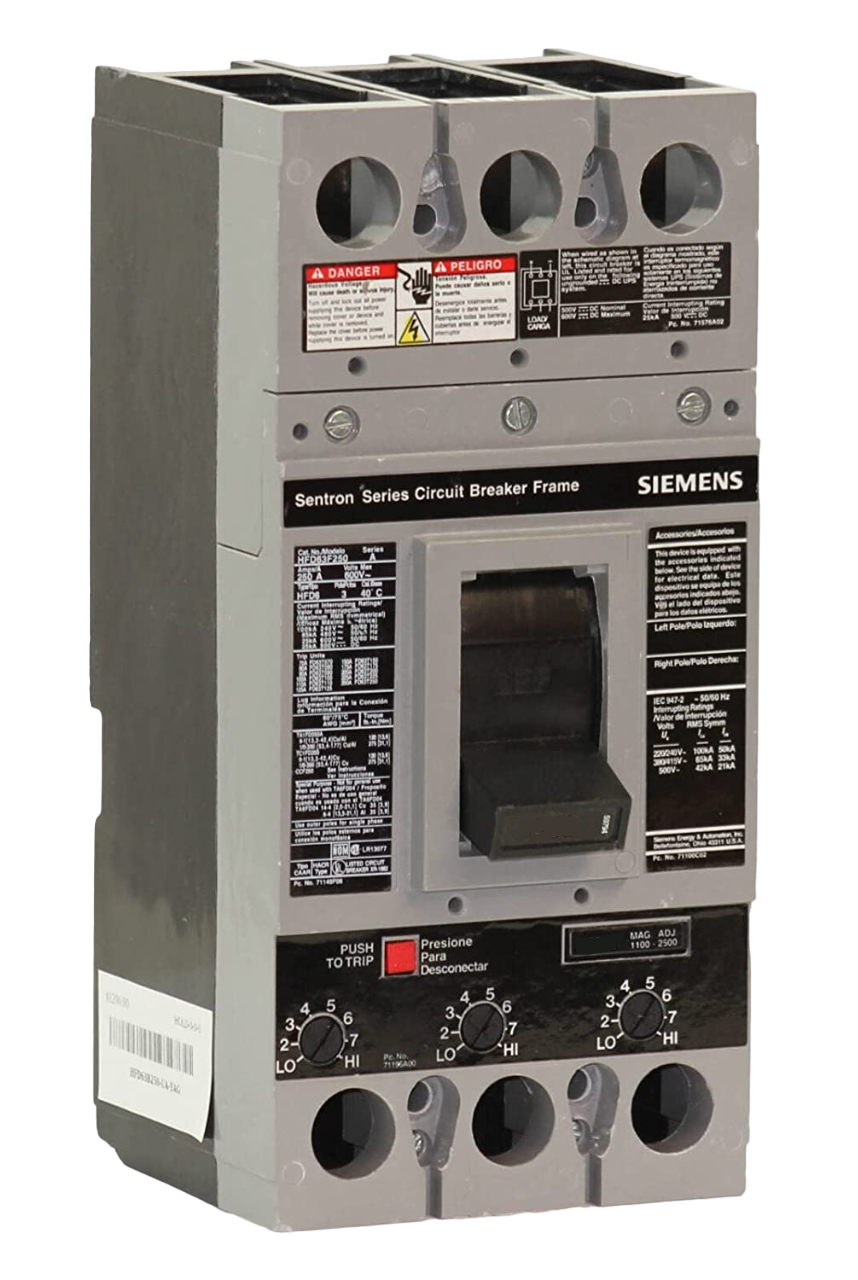

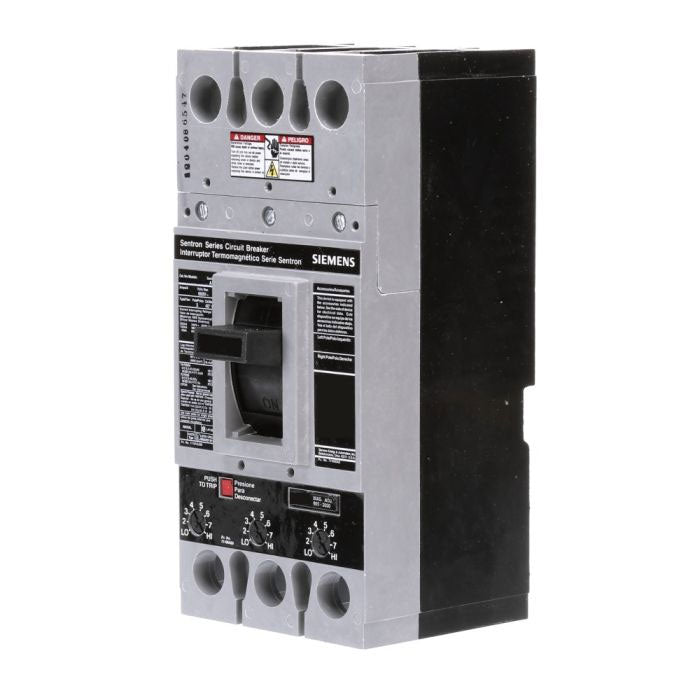

HFD63B100L - Siemens 100 Amp 600 Volt 3 Pole Molded Case Circuit Breaker FD Frame

HFD63B100L

HFD63B100L is a Siemens 3 pole molded case circuit breaker rated for 100 amps and 600 volts AC. It features a bolt-on mounting type and is part of the FD frame series.

This circuit breaker provides high interrupting capacity with a 65kA interrupt rating at 480V and 25kA at 600V. It meets UL 489 and IEC 60947-2 standards and is designed for reliable protection in industrial and commercial electrical systems. The breaker includes long-time and instantaneous trip functions for enhanced circuit protection.

• Amperage: 100 Amps
• Voltage Rating: 600 Volts AC
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 480V, 25kA at 600V
• Series/Frame: FD Frame
• Trip Unit: Long-Time and Instantaneous (LI)
• Certifications: UL 489, IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: HFD63B100L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFD
• Voltage : 600 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643235861
• GTIN : 00783643235861
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
