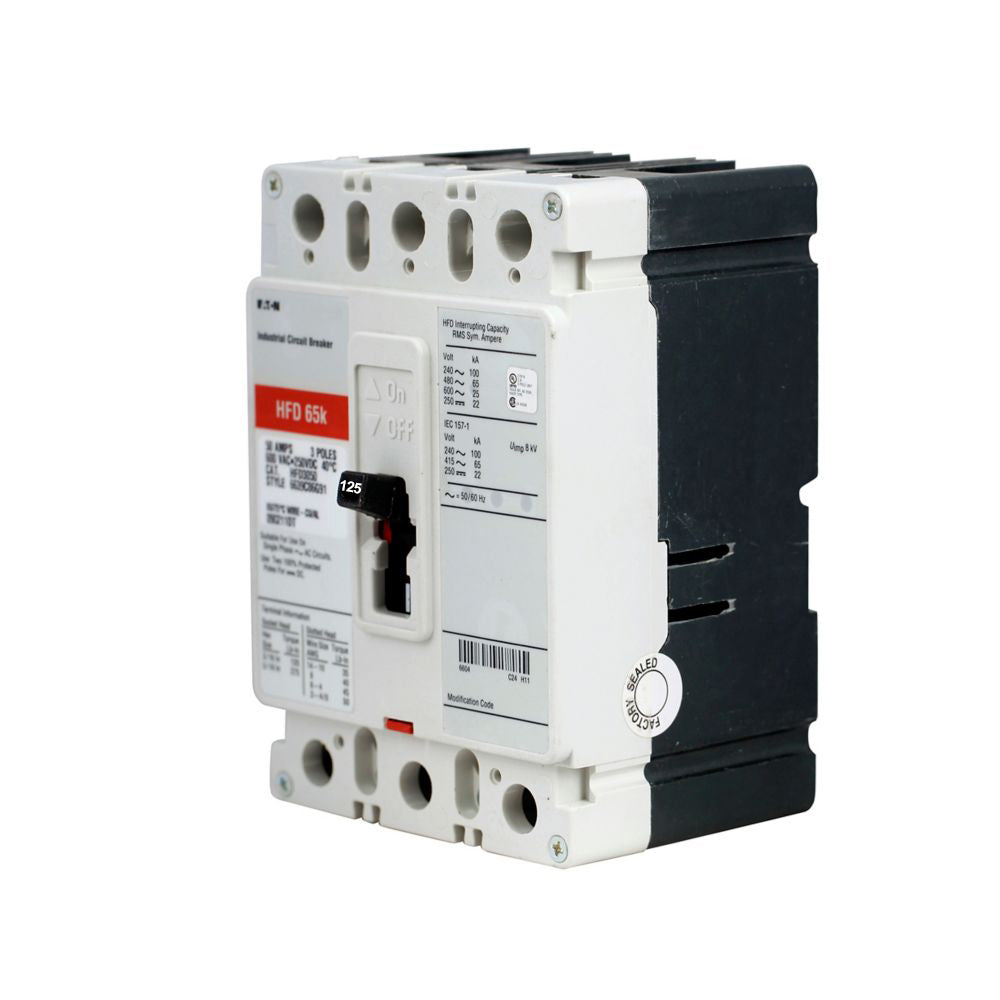

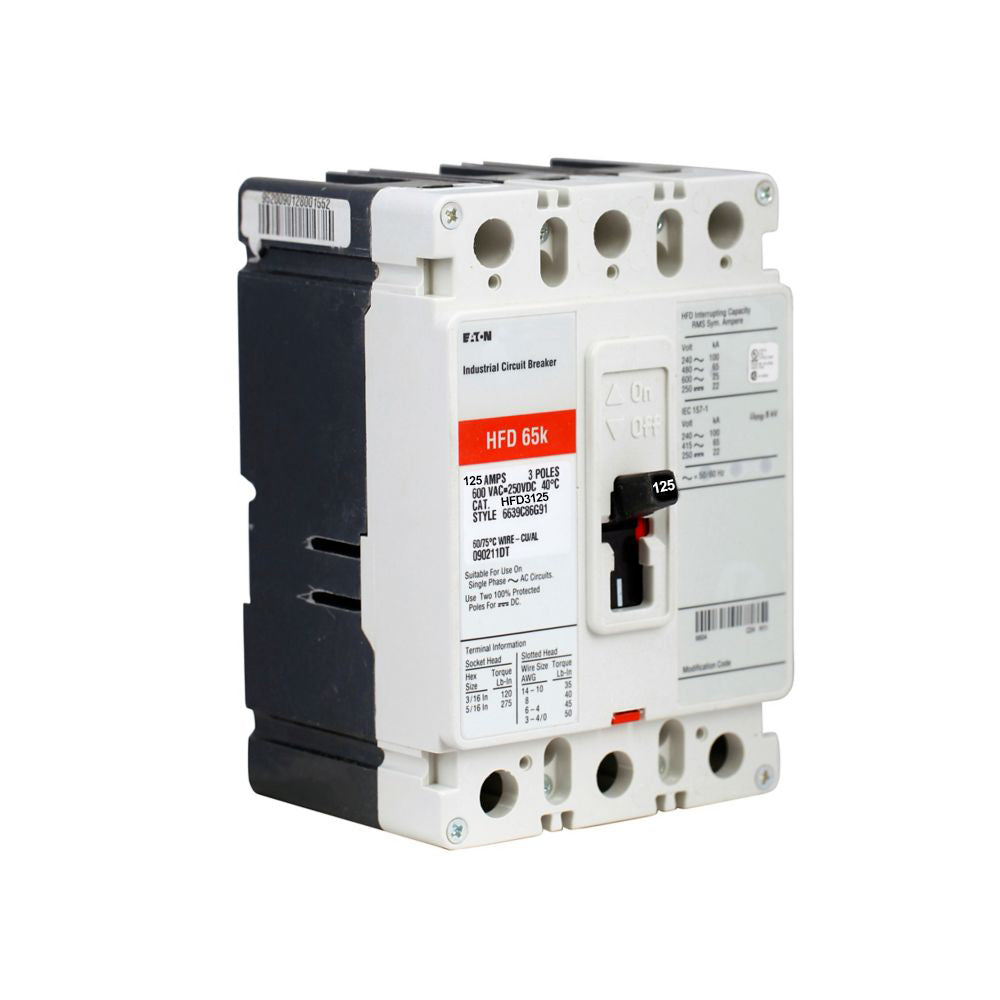

HFD3125 - Westinghouse 125A 600V 3-Pole Molded Case Circuit Breaker HFD Frame

HFD3125

HFD3125 is an Eaton Series C complete molded case circuit breaker with F-frame design, rated for 125 amperes at 600 VAC or 250 VDC. This three-pole thermal magnetic breaker features fixed thermal and fixed magnetic trip functions with long-time and instantaneous protection, ideal for industrial power distribution and retrofit applications. The breaker includes load-side lug terminals and is rated for 40 degrees Celsius operation at 50/60 Hz frequency. Key Specifications

• Amperage Rating: 125 A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Series: C, F-Frame
• Frame Type: HFD
• Trip Type: Fixed Thermal, Fixed Magnetic
• Interrupt Rating: 100 kAIC at 240 VAC, 65 kAIC at 480 VAC
• Mounting Type: Bolt-On

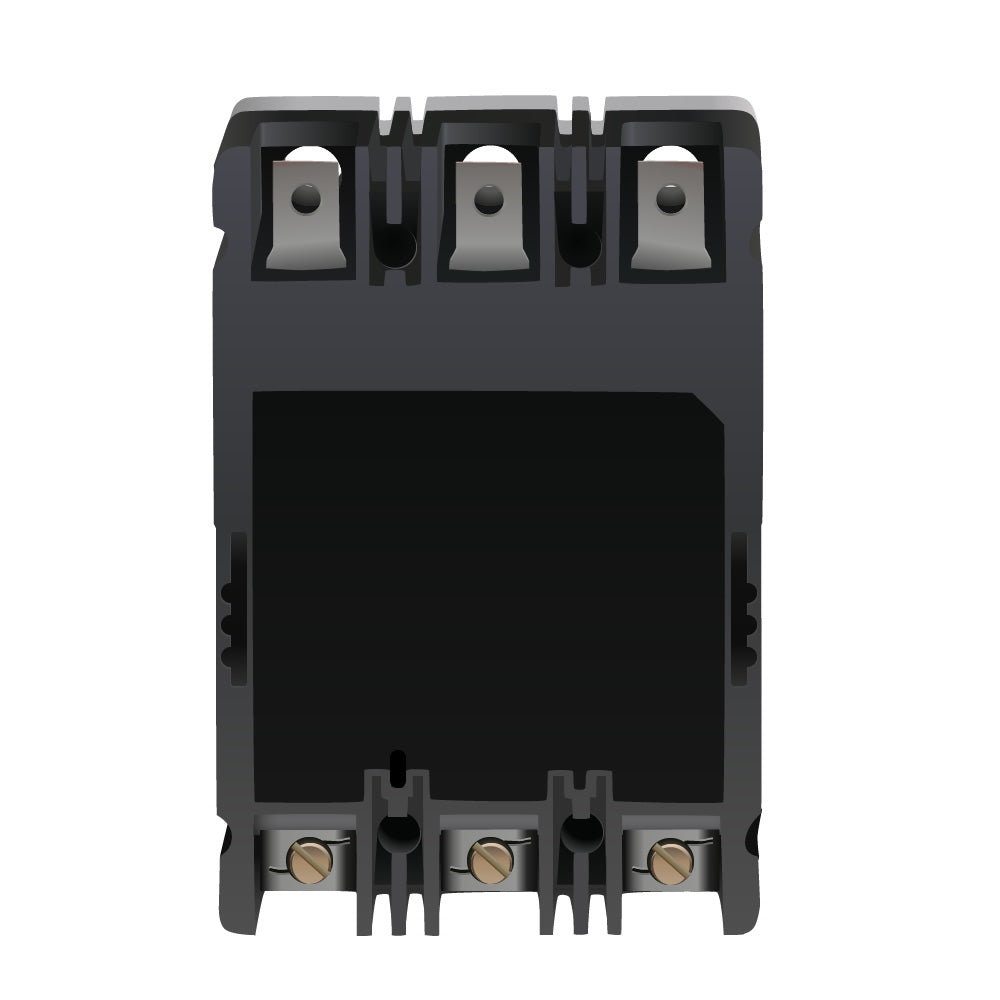

• Terminals: Load Side Lug
• Dimensions: 4.13 in W x 6.0 in H x 3.38 in D
• Weight: 4.25 lbs
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD3125
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679175903
• GTIN : 00786679175903
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.25
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
