- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
HFD3050L

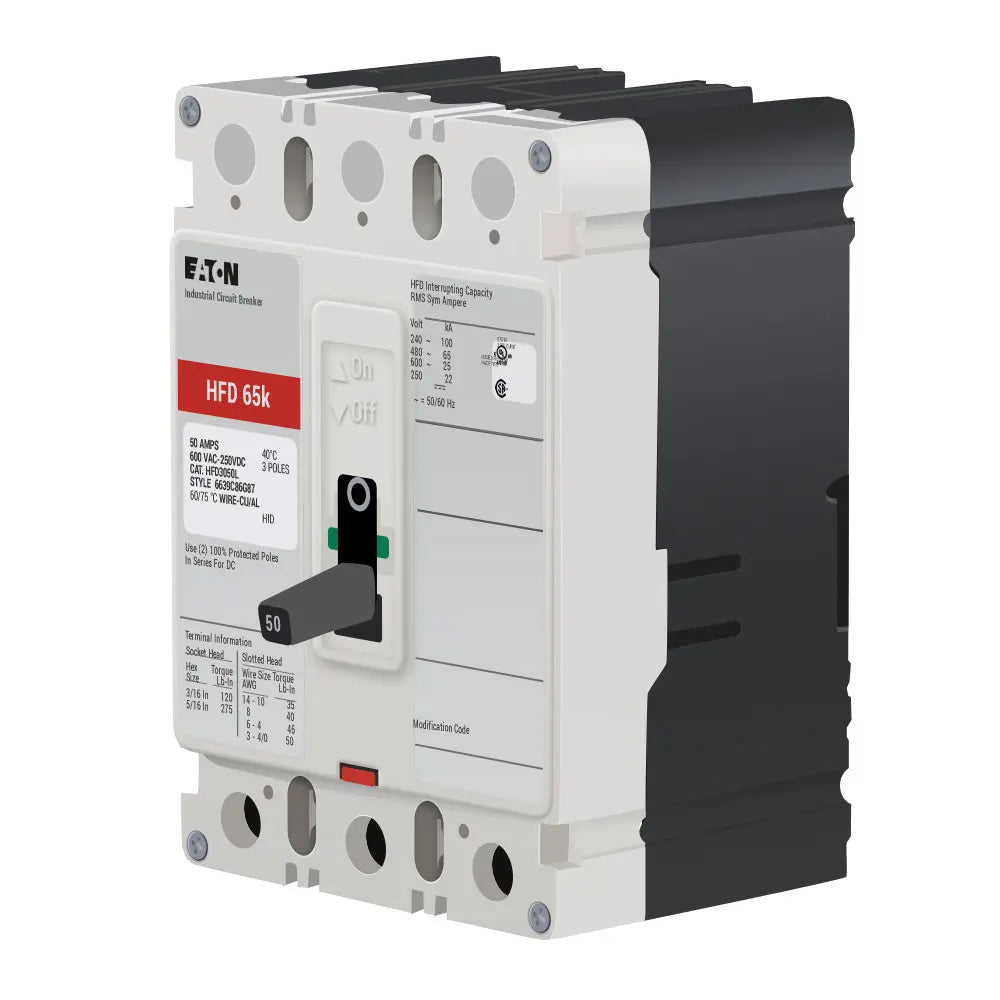

HFD3050L - Cutler Hammer Series C molded case circuit breaker with fixed thermal-magnetic trip, 3-pole, 50A rating.
This F-frame HFD circuit breaker provides high interrupting capacity at 100kAIC @ 240VAC and 65kAIC @ 480VAC, rated for 600VAC/250VDC systems with feed-thru line and load terminals for reliable protection in industrial applications.
Key Specifications
- Amperage Rating: 50A
- Voltage Rating: 600VAC, 250VDC
- Number of Poles: 3
- Frame Type: F-frame
- Trip Type: Fixed thermal-magnetic
- Interrupt Rating: 100kAIC @ 240VAC, 65kAIC @ 480VAC
- Mounting Type: Chassis, rear mount
- Frequency: 50/60 Hz
- Connection: Feed-thru
- Terminals: Line and load lugs
- Dimensions: 6in H x 4.13in W x 3.38in D
- Weight: 4.55 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HFD3050L
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 600 AC
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : F Frame
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679175132
- GTIN : 00786679175132
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.55
- Certification : UL Listed
