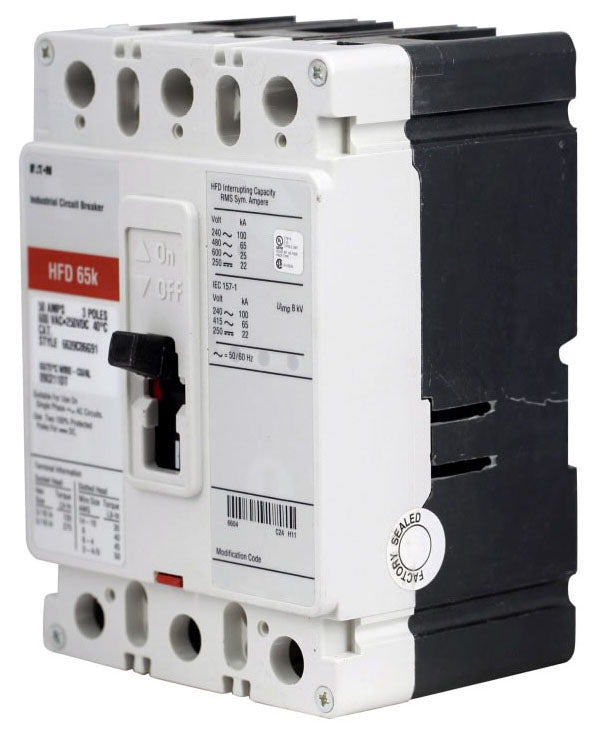

HFD3020W - Westinghouse 20 Amp 3-Pole 600 Volt Molded Case Circuit Breaker

HFD3020W

HFD3020W is a 20-amp, 3-pole, 600-volt molded case circuit breaker from Eaton's Series C family, designed for thermal-magnetic protection in industrial and commercial power distribution applications.

This feed-thru connected breaker delivers reliable overcurrent and short-circuit protection with an interrupt rating of 100 kAIC at 240 VAC and 65 kAIC at 480 VAC. The compact molded case design measures 6.0 inches H x 4.13 inches W x 3.38 inches D and weighs 4.5 lbs, making it suitable for standard panelboard installations. Thermal-magnetic trip technology provides fast response to both overload and fault conditions.

• Amperage: 20 Amp
• Poles: 3-Pole
• Voltage: 600 Volt AC
• Series: Series C
• Type: HFD
• Connection: Feed-Thru
• Protection Type: Thermal Magnetic
• Interrupt Rating: 100 kAIC @ 240 VAC, 65 kAIC @ 480 VAC
• Frequency: 50/60 Hz
• Dimensions: 6.0 H x 4.13 W x 3.38 D inches
• Weight: 4.5 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HFD3020W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 782114983713
• GTIN : 00782114983713
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Certification : UL Listed
