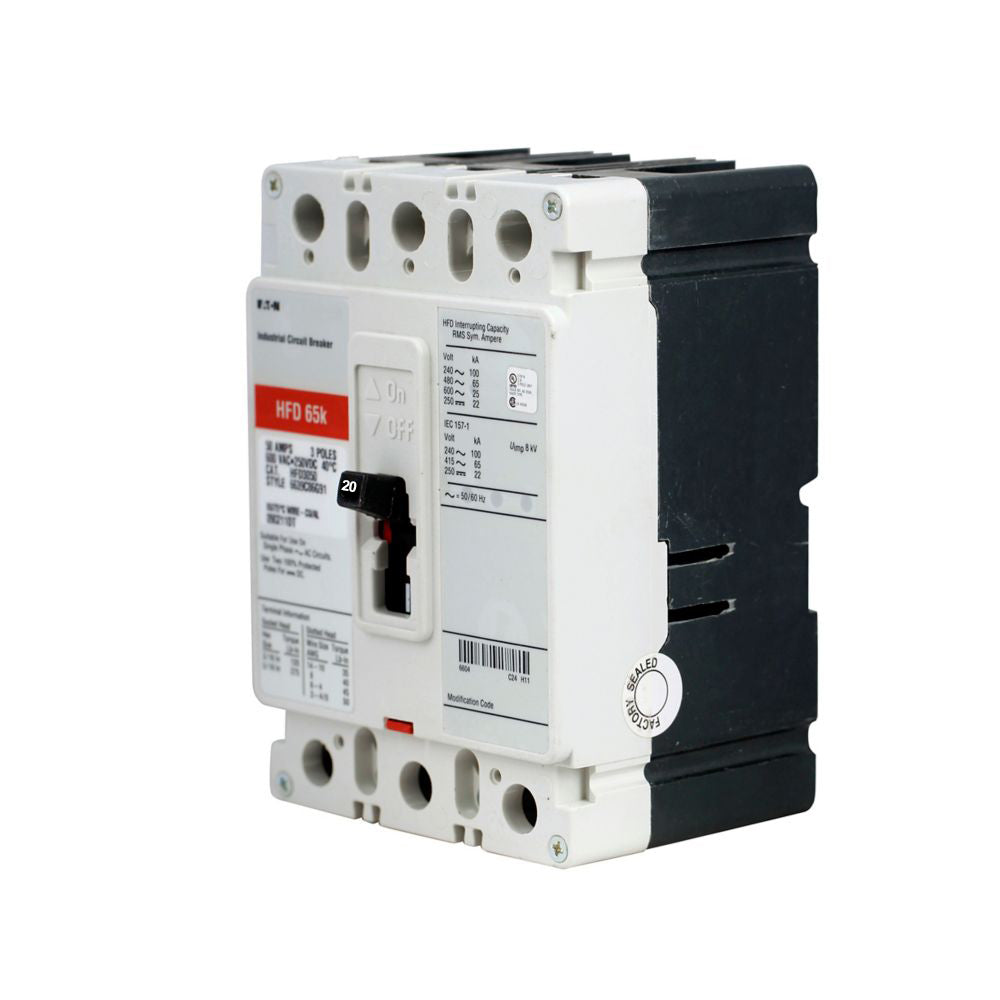

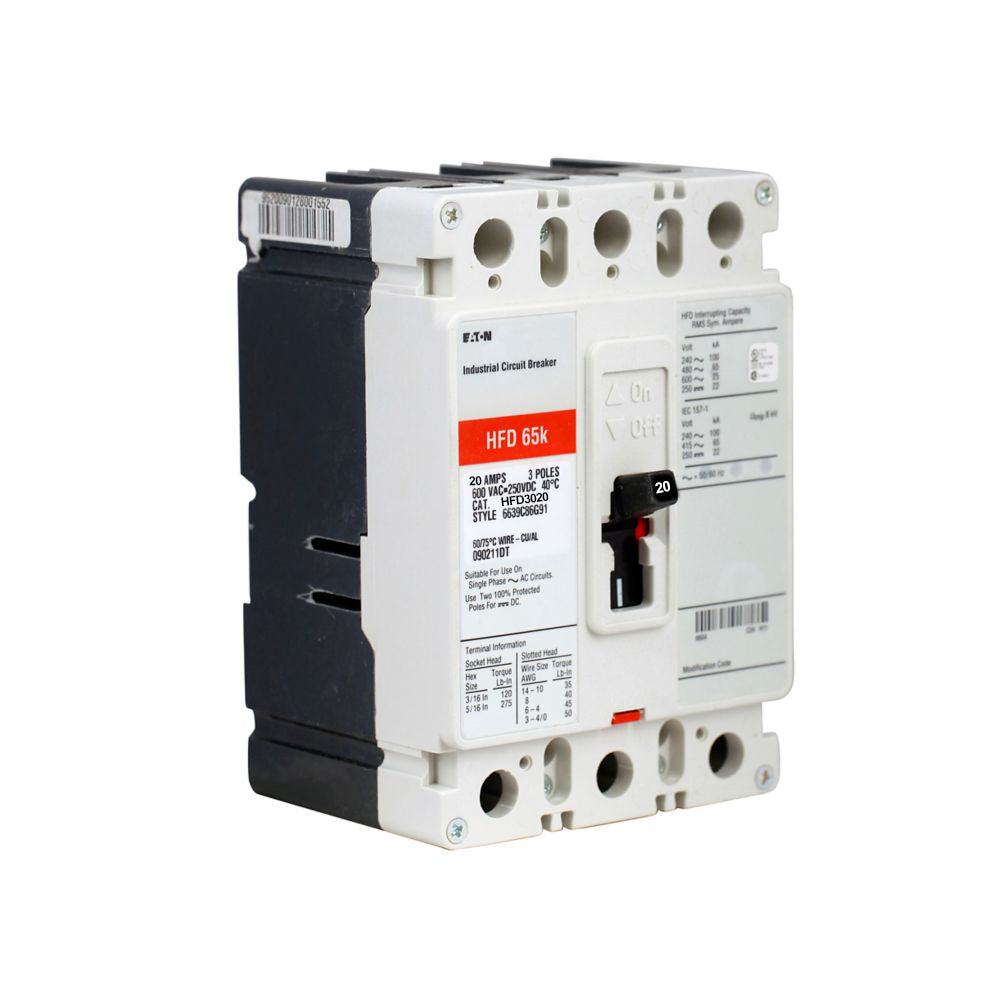

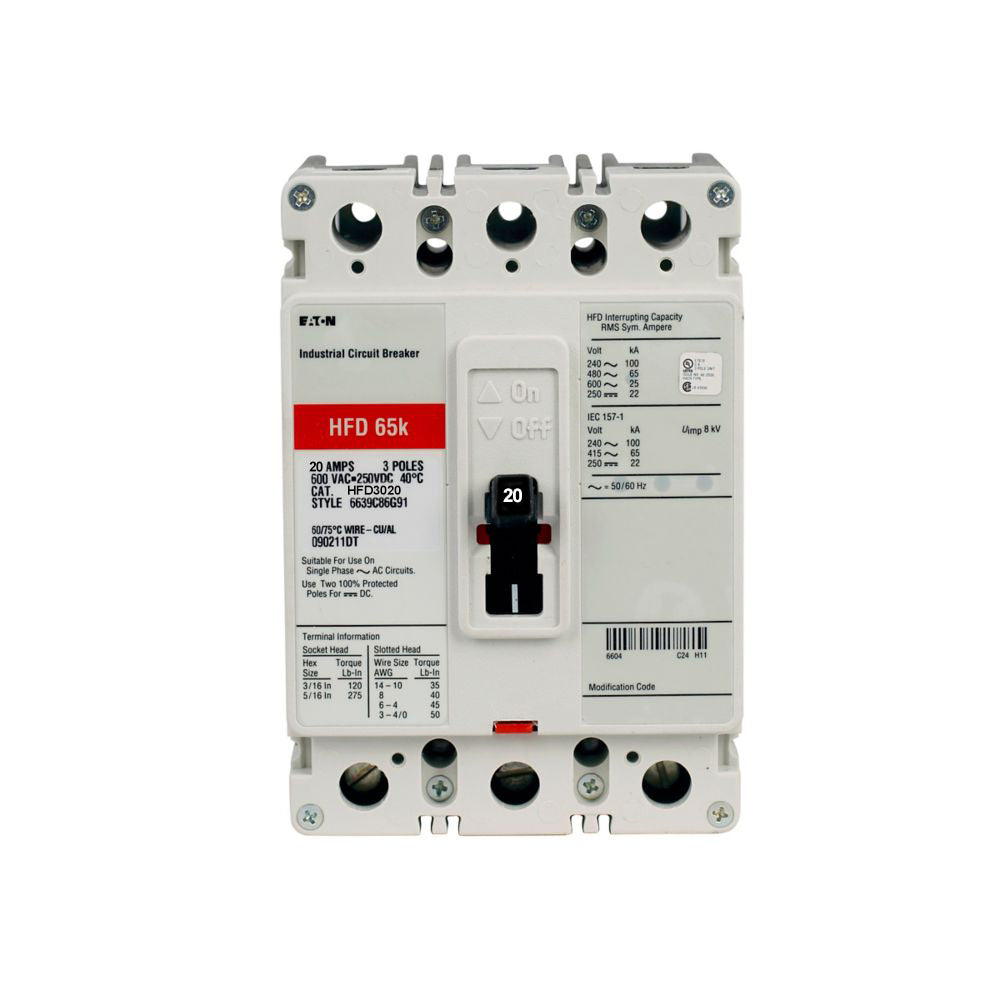

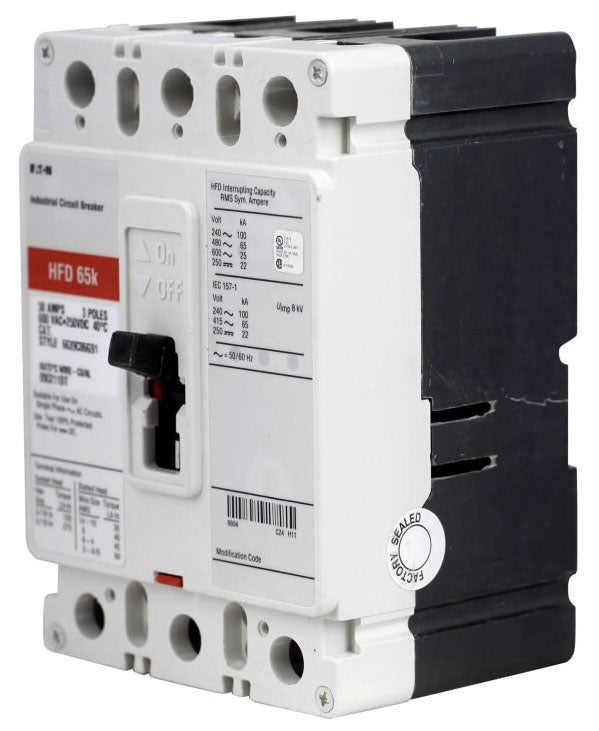

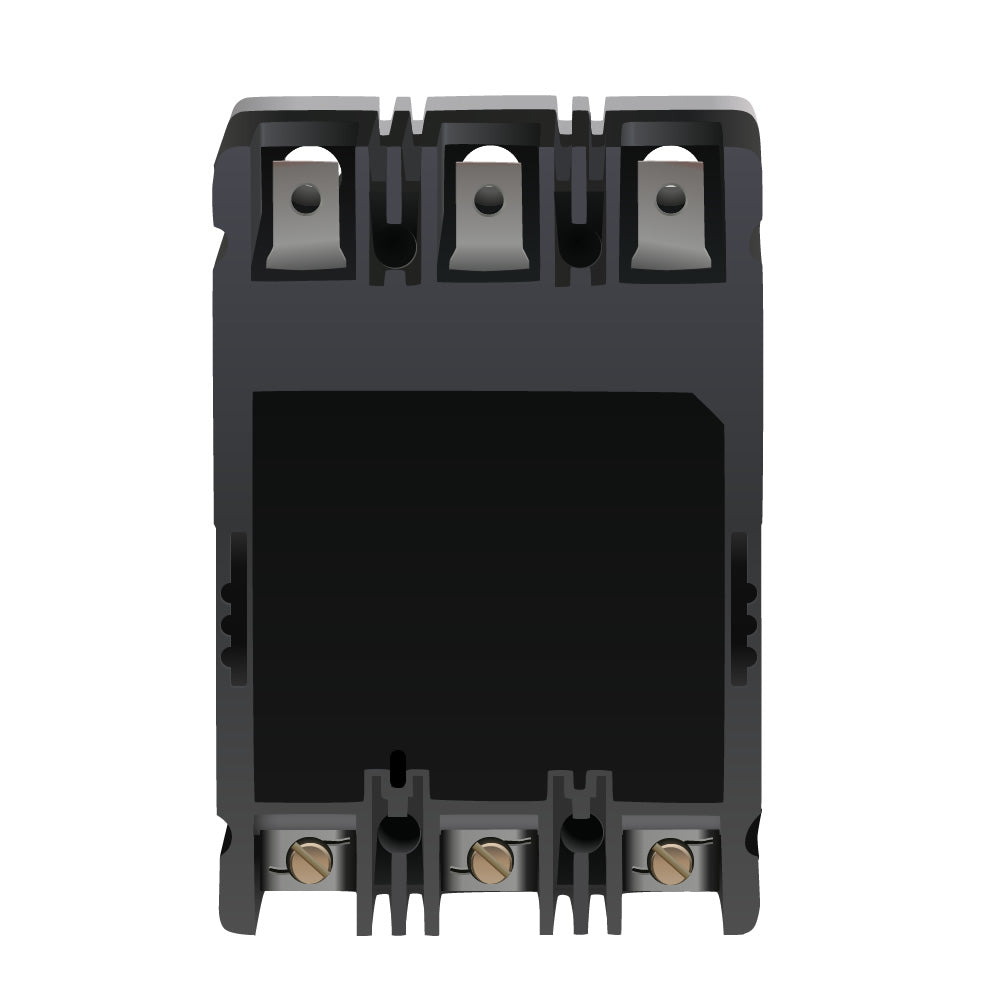

HFD3020 - Cutler Hammer 20A 600V 3-Pole Molded Case Circuit Breaker Type HFD Frame

HFD3020

Key Specifications
• Amperage: 20 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: HFD (Series C)
• Mounting Type: Bolt-On
• Interrupt Rating: 65 kA at 480V
• Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
• Phase: 3-Phase
• Terminal Type: Load Side Lug Terminals
• Trip Type: Non-Interchangeable
• Temperature Rating: 40¡C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HFD3020
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 786679175811
• GTIN : 00786679175811
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.35 lb
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
