Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HFD2090BP10

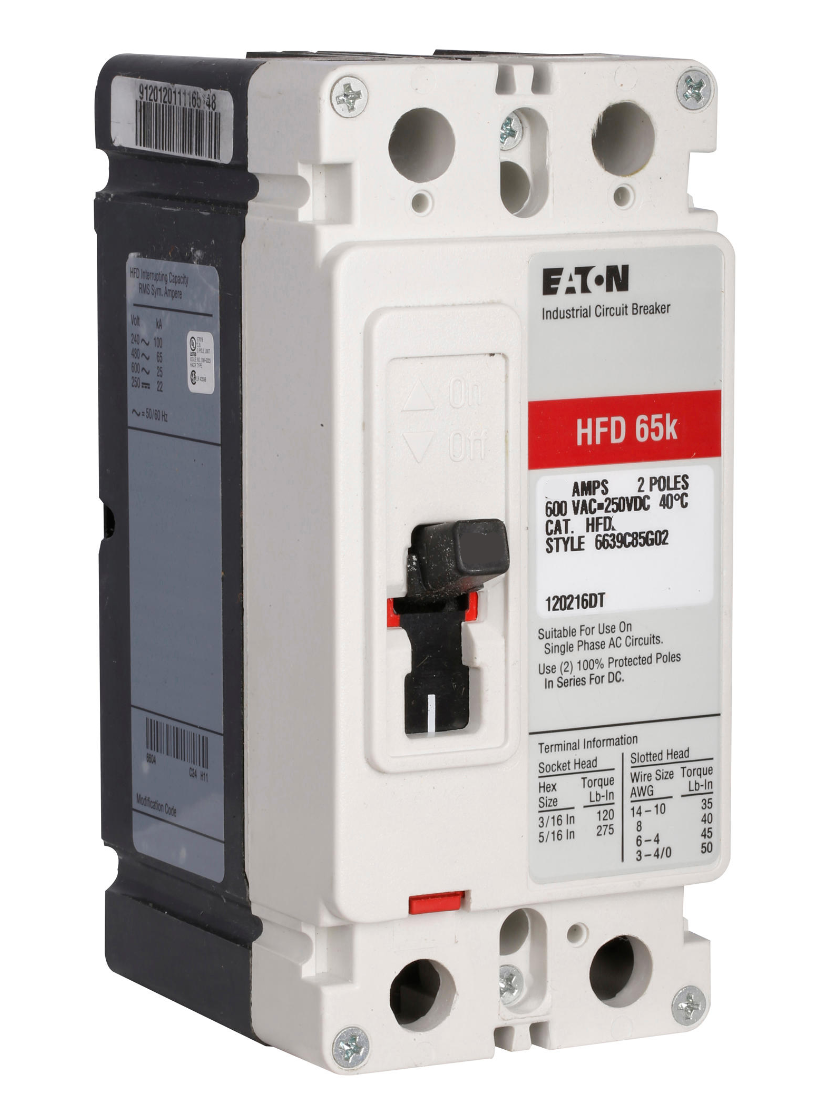

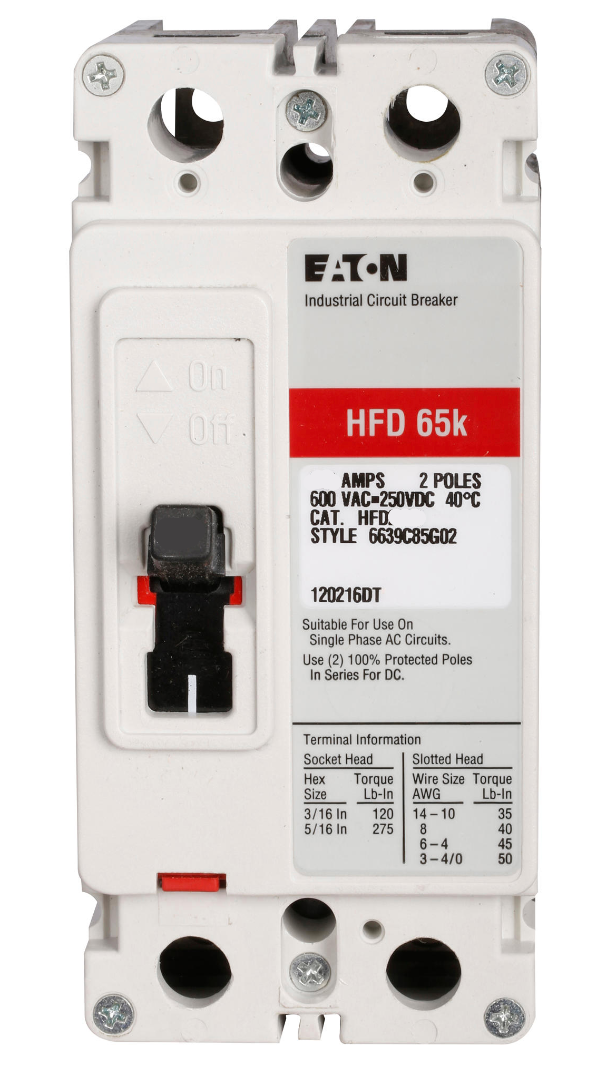

HFD2090BP10 is a 90 Amp, 600 Volt, 2-pole Series C molded case circuit breaker from Eaton designed for reliable circuit protection.This Eaton Series C circuit breaker features a thermal-magnetic trip unit (T186) and is rated for 600 Vac and 250 Vdc operation. It is a two-pole breaker suitable for single-phase applications, providing robust protection with a frame size classified as F-frame. The breaker is designed for load side connections and offers a fixed thermal and magnetic trip type for dependable performance.
- Key Specifications
- Amperage: 90 A
- Voltage Rating: 600 Vac, 250 Vdc
- Number of Poles: 2
- Series/Frame: Series C, F-frame
- Trip Unit: Thermal-magnetic (T186)
- Connection Type: Load side
- Phase: Single-phase
- Mounting Type: Standard molded case
- Part Number: HFD2090BP10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 600 AC
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
- Weight : 3
