Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HFD2025BP10

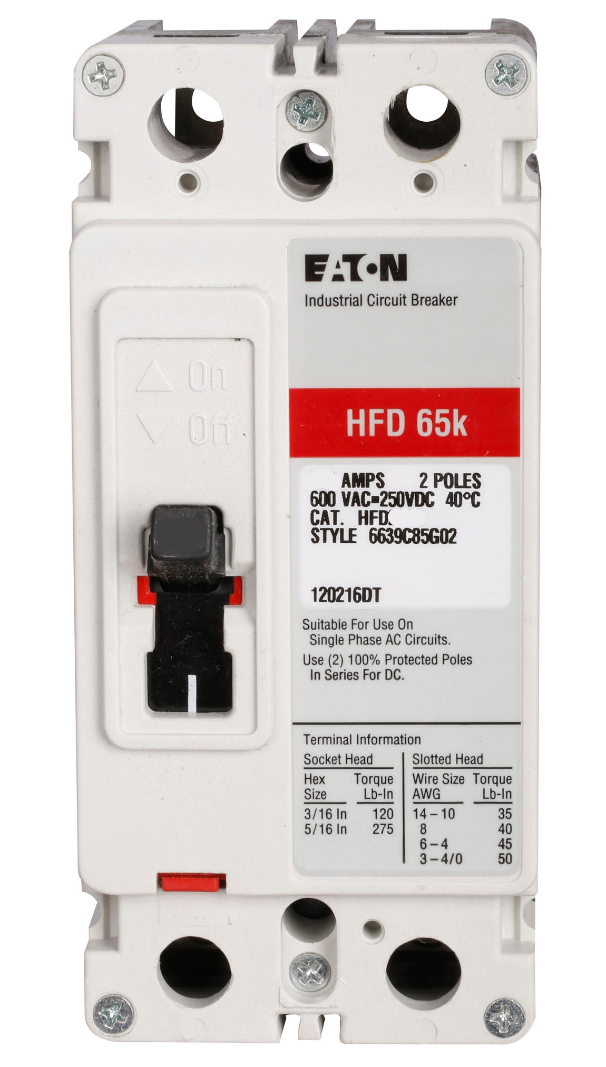

HFD2025BP10 is a 2-pole, 25 amp, 600V AC molded case circuit breaker from Eaton's Series C F-Frame line, designed for reliable protection in commercial and industrial applications. This breaker features a fixed thermal and magnetic trip unit, providing dependable overload and short-circuit protection. It is suitable for use in panelboards and switchgear where high interrupting capacity and compact size are required.
- 25A amperage rating
- 600V AC voltage rating
- 2-pole configuration
- Series C F-Frame construction
- 65kA interrupting rating at 480V AC
- Fixed thermal and magnetic trip unit
- Front-connected mounting
- HACR rated
- UL listed
- Suitable for HID lighting circuits
- Reverse feed capable
- Current limiting design
Specifications
- Part Number: HFD2025BP10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 600 AC
- Amperage : 25
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 3
