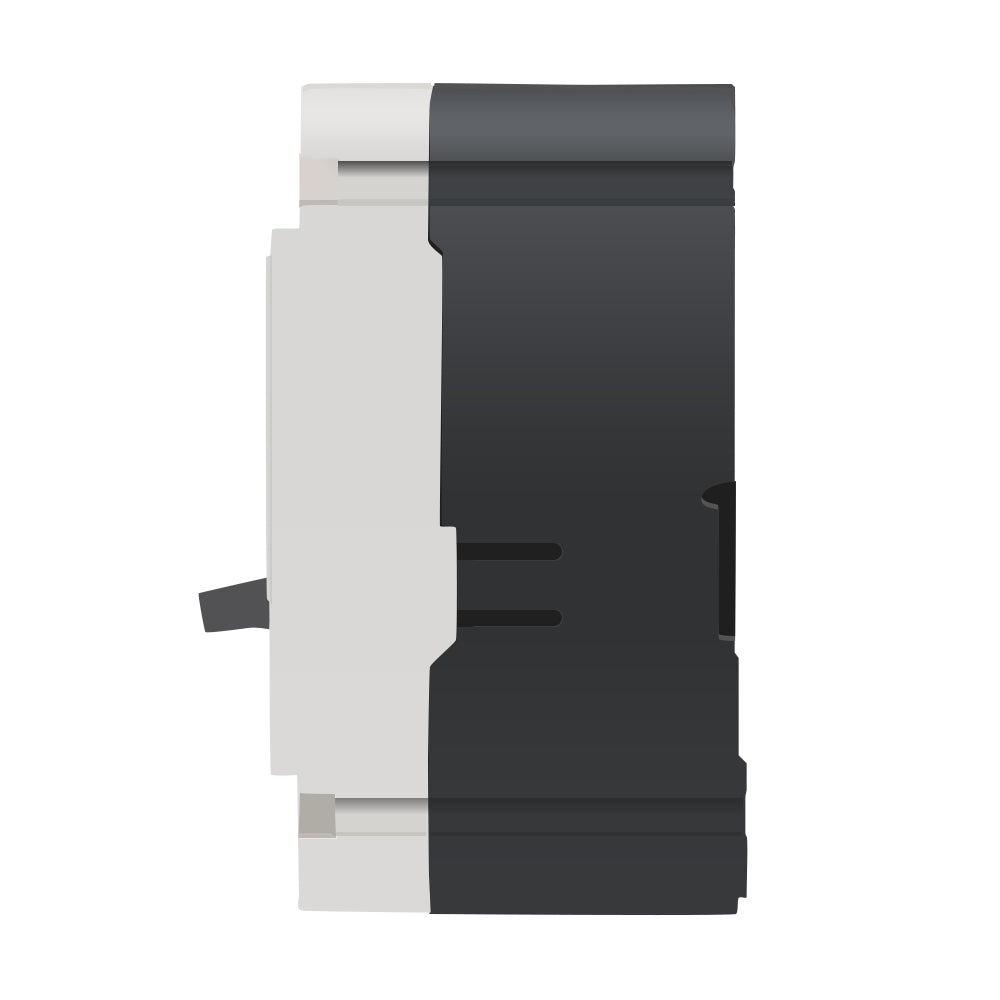

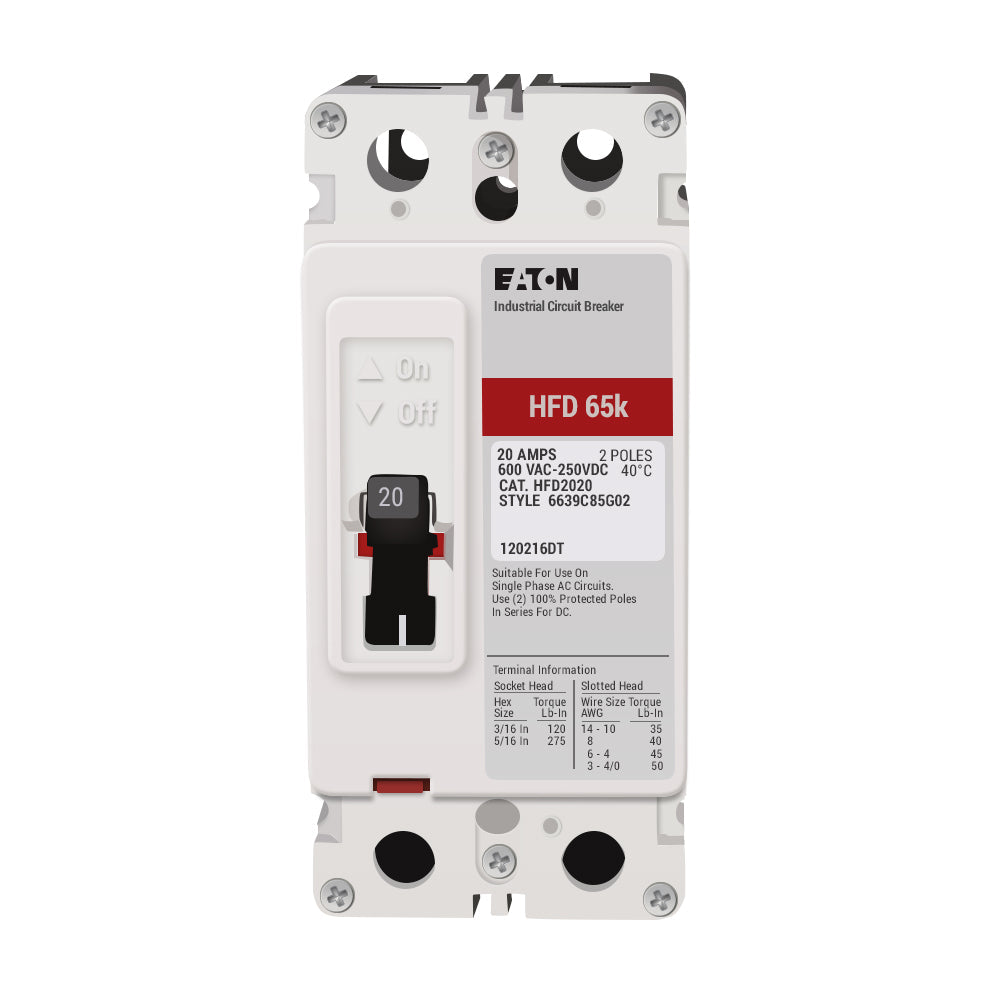

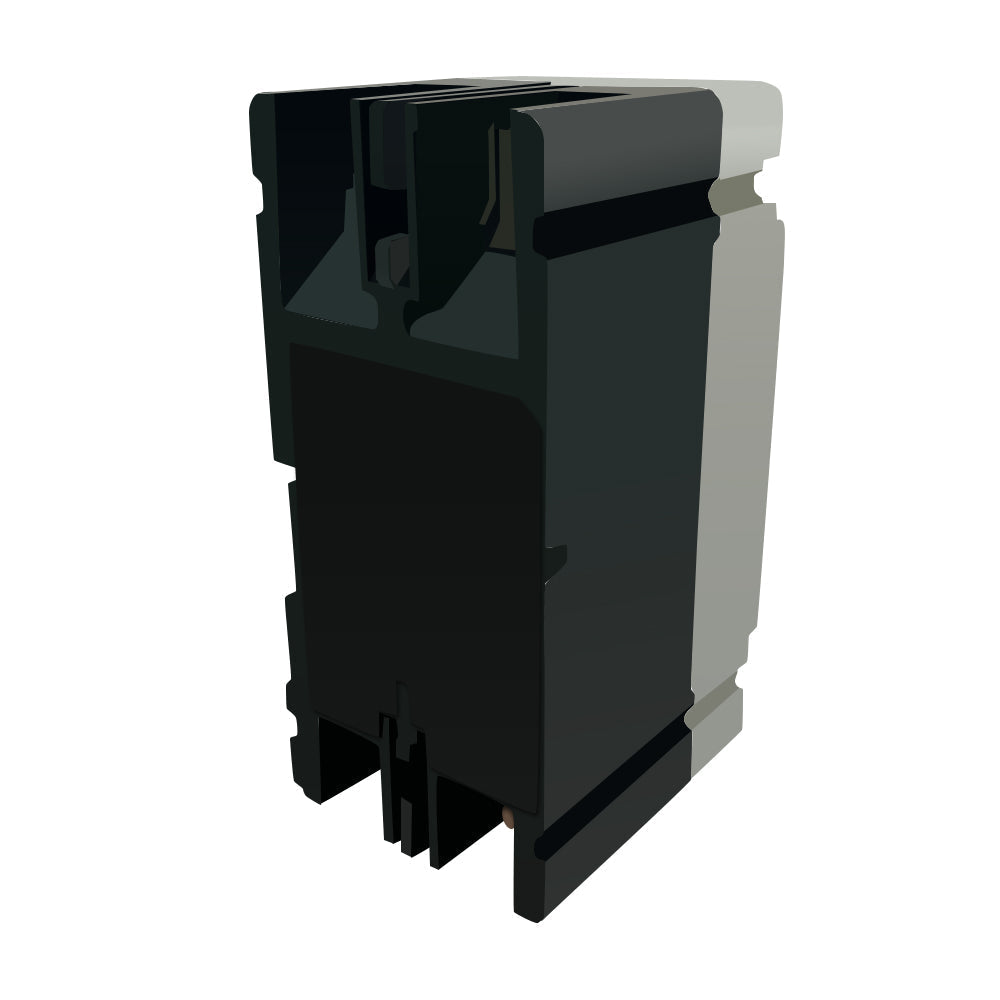

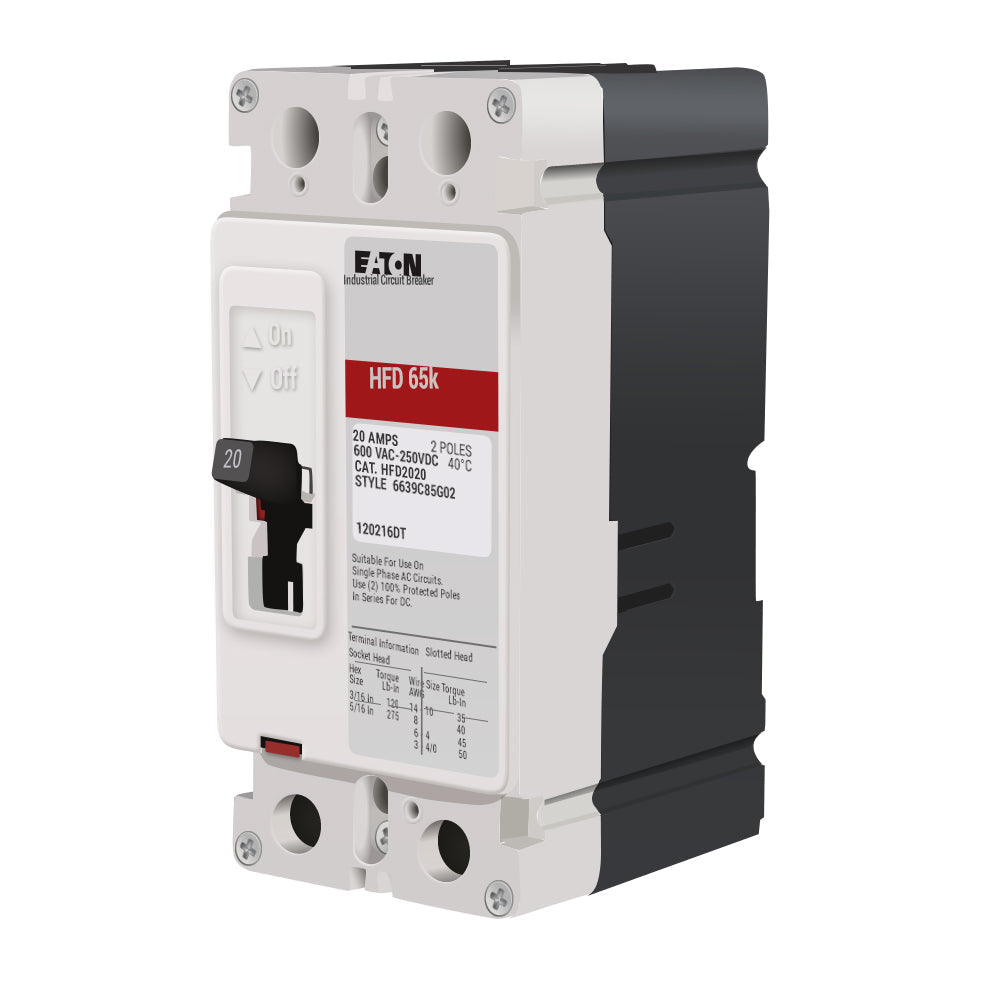

HFD2020 - Cutler Hammer 20A 600V 2-Pole Series C F-Frame Molded Case Circuit Breaker

HFD2020

HFD2020 is a 20 amp, 600 volt, 2-pole Series C F-frame molded case circuit breaker from Cutler Hammer designed for reliable circuit protection.HFD2020 features a thermal magnetic trip unit with a 65kA interrupting rating at 480V, suitable for industrial and commercial applications. It supports feed-thru wiring and complies with UL listing standards.

• Amperage Rating: 20A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: 2
• Frame Size: F-frame
• Series: Series C
• Trip Type: Thermal magnetic (T186)
• Interrupting Rating: 65kA at 480V
• Mounting Type: Molded case
• Certifications: UL Listed
• Feed-thru capable
• Dimensions: 3.38" L x 2.75" W x 6" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD2020
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 786679175378
• GTIN : 00786679175378
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 3.05
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
