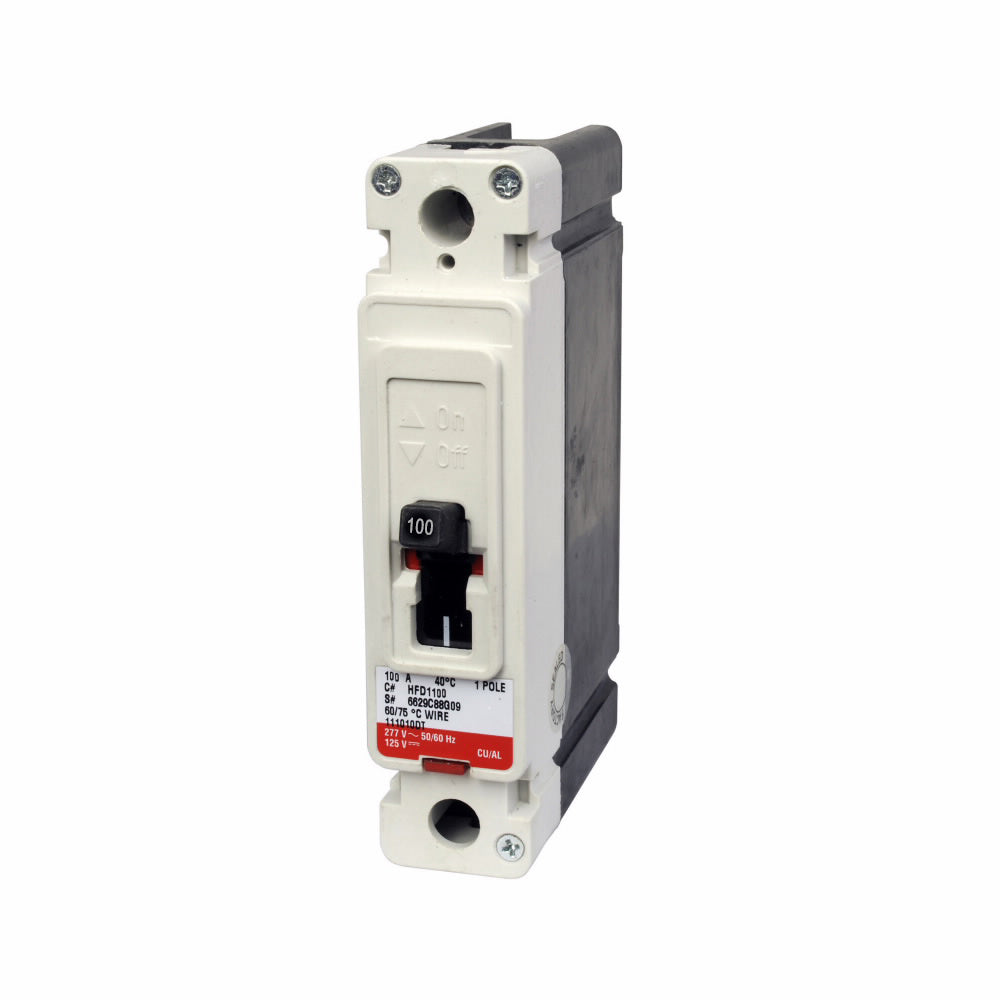

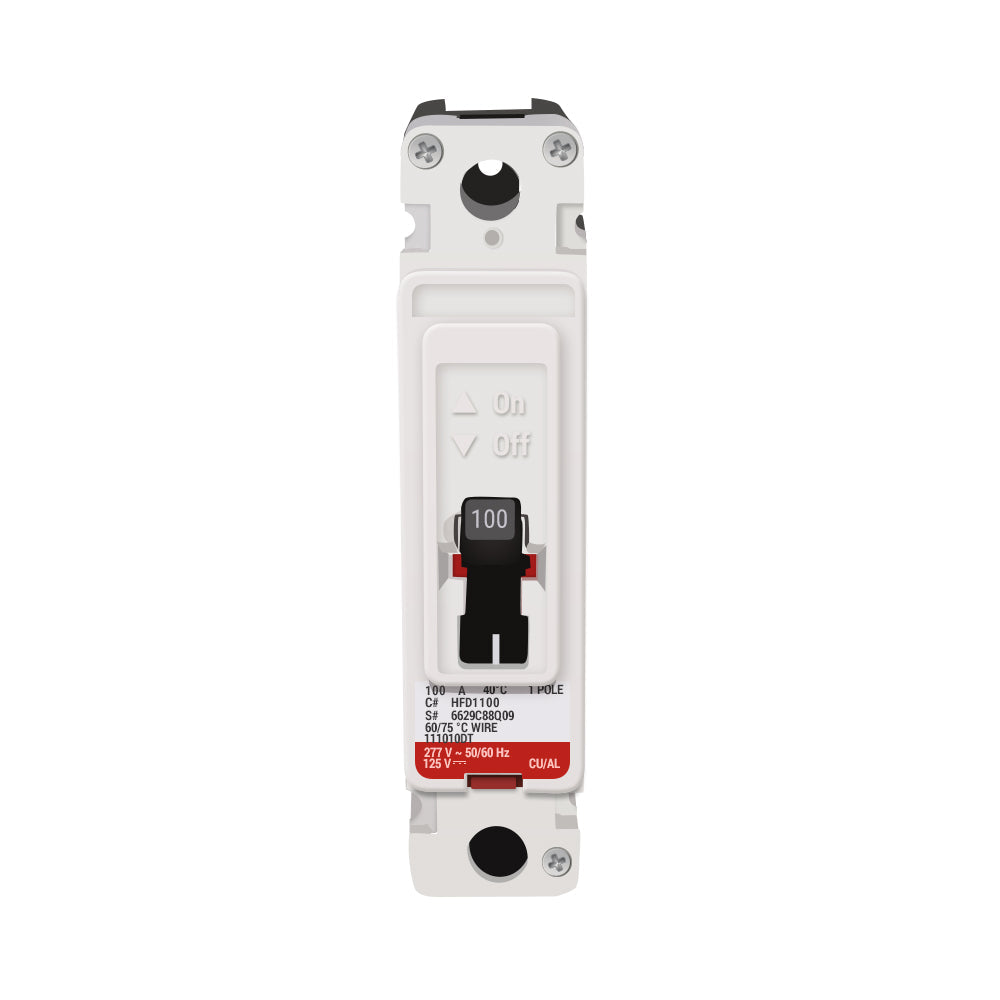

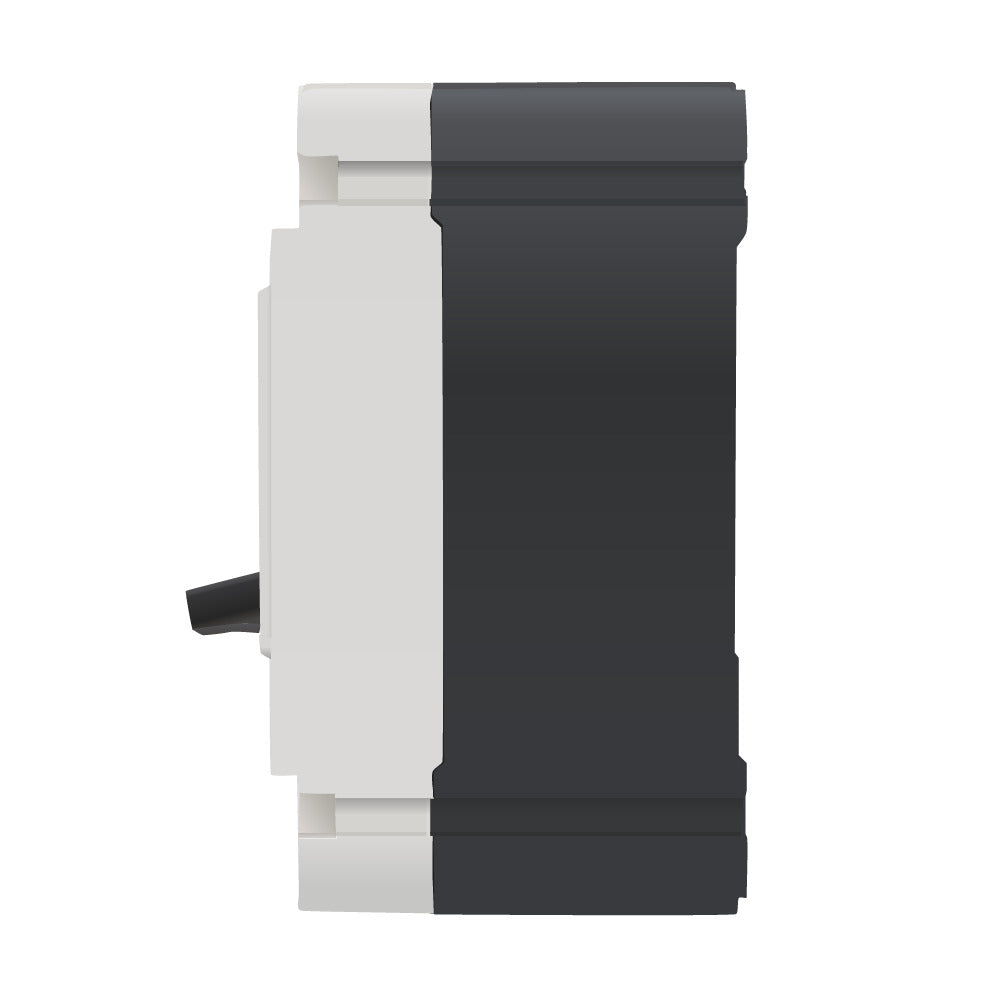

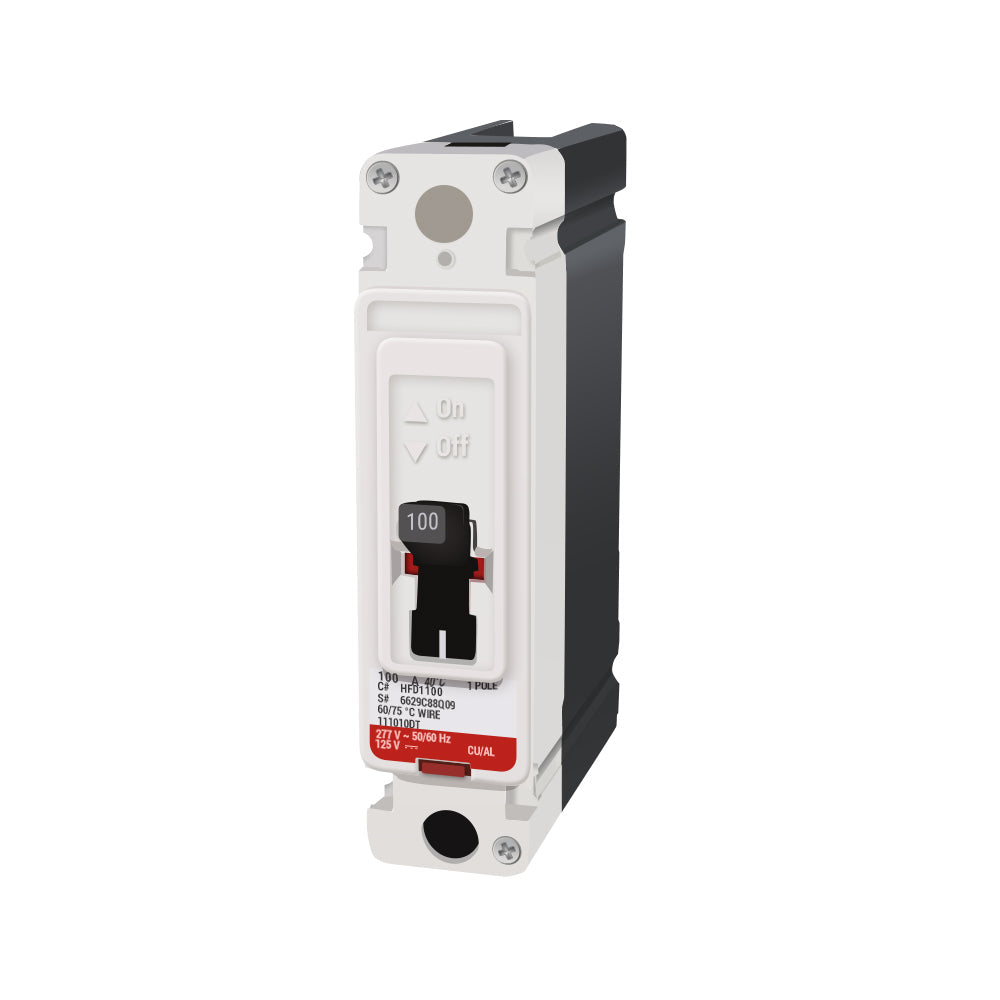

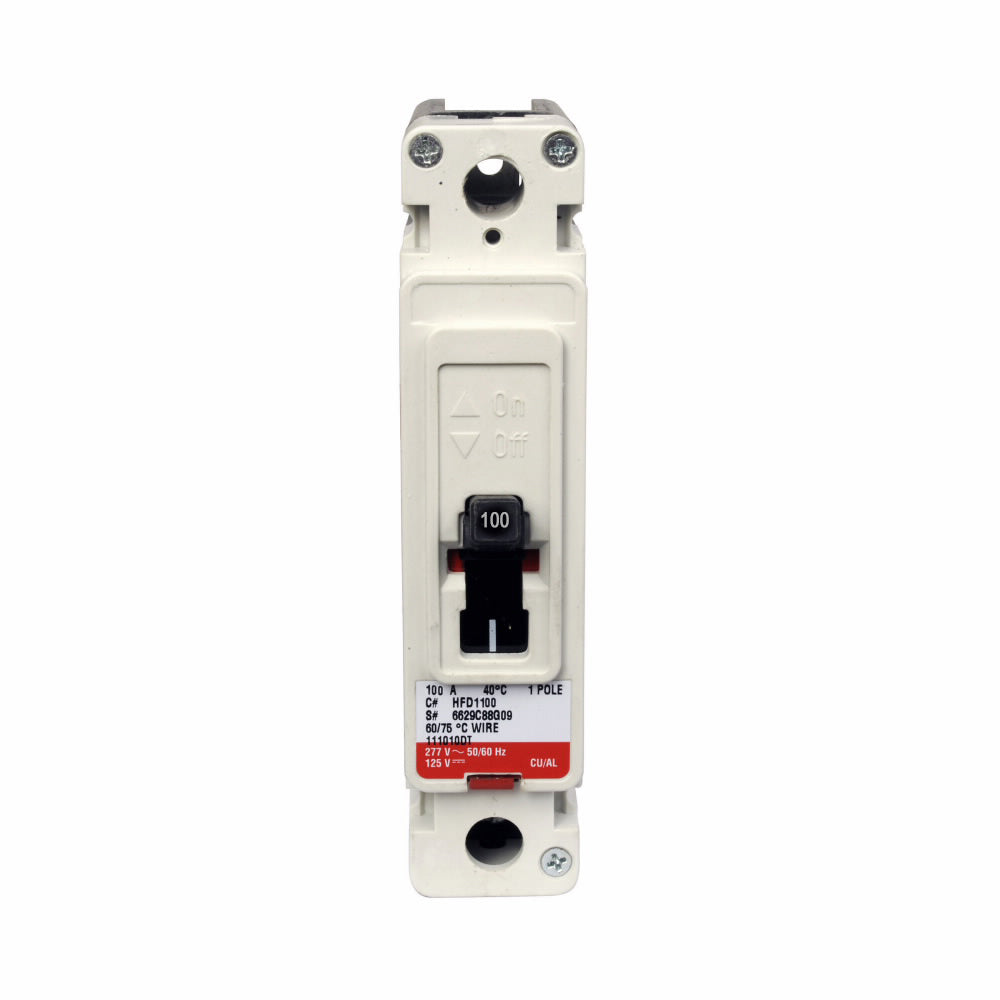

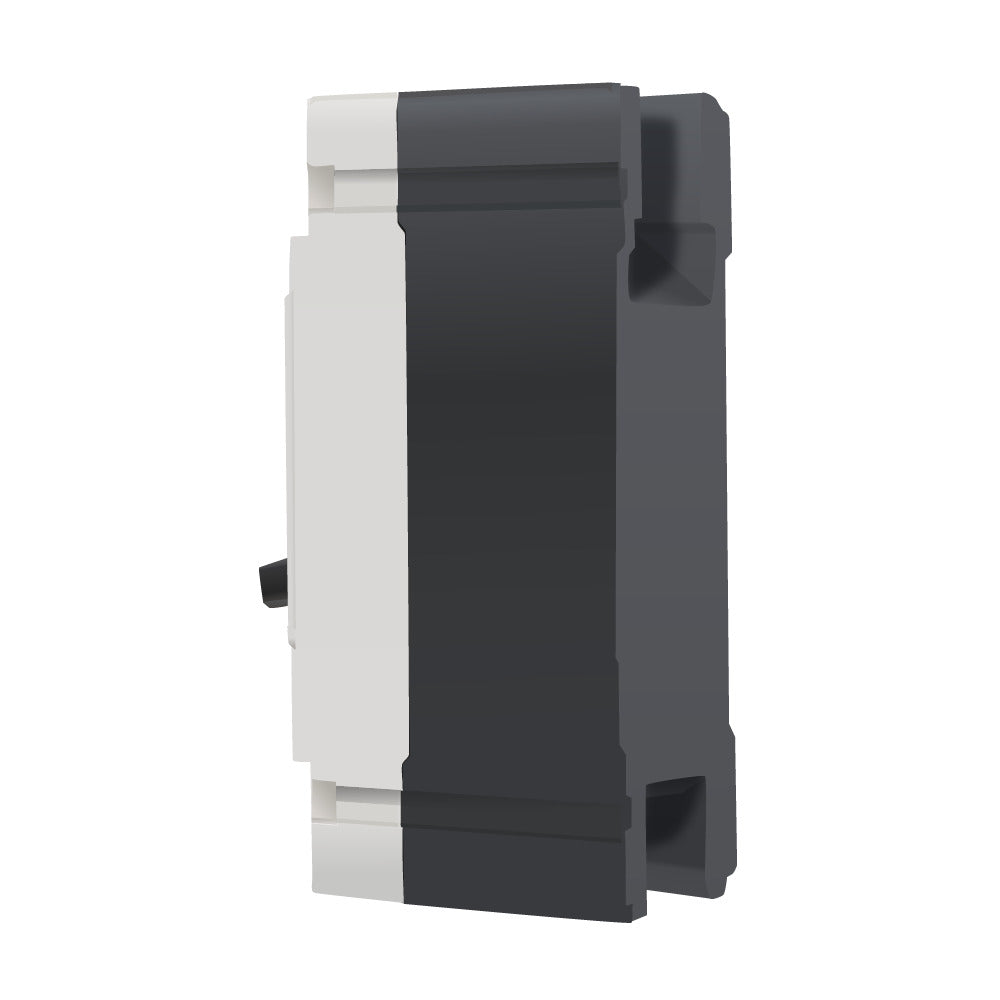

HFD1100 - Westinghouse 100A 277V 1-Pole Molded Case Circuit Breaker F-Frame

HFD1100

HFD1100 is a Westinghouse molded case circuit breaker designed for reliable circuit protection in low voltage distribution systems.This 100 amp, 1-pole breaker operates at 277 volts AC with a 65kA interrupting rating at 277VAC. It features a Series C, F-frame design with bolt-on mounting and long-time and instantaneous trip functions for enhanced protection. The breaker is UL listed and suitable for commercial and industrial applications.

• Amperage: 100A
• Voltage: 277V AC
• Poles: 1
• Interrupt Rating: 65kA at 277VAC
• Series/Frame: Series C, F-frame
• Mounting Type: Bolt-on
• Trip Unit: Long-time and instantaneous
• Frequency: 50-60 Hz
• Type: HFD
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD1100
• Manufacturer : Westinghouse
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 277 AC
• Amperage : 100
• Phase : 1
• Poles : 1
• AIC rating : 65kA@277V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679175354
• GTIN : 00786679175354
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 1.38 in (Length/Depth x Height x Width)
• Weight : 4.5
• Certification : UL Listed
