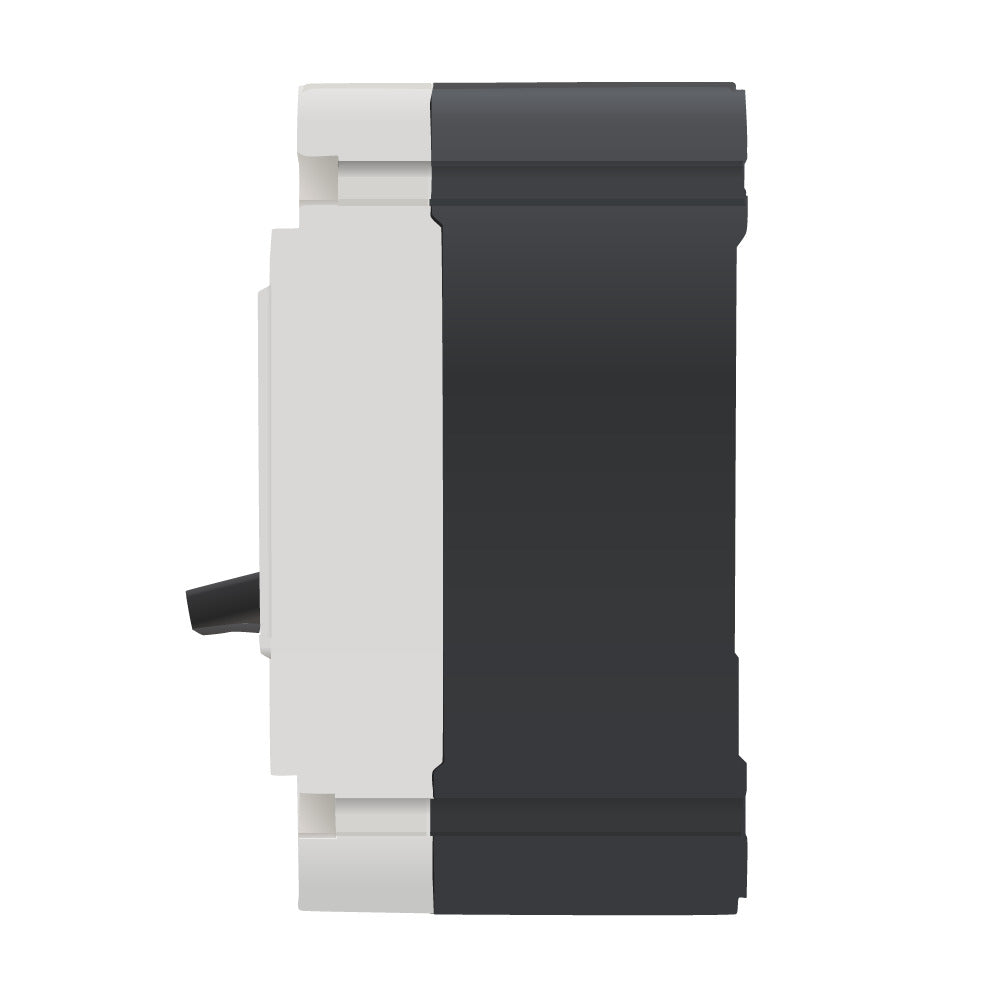

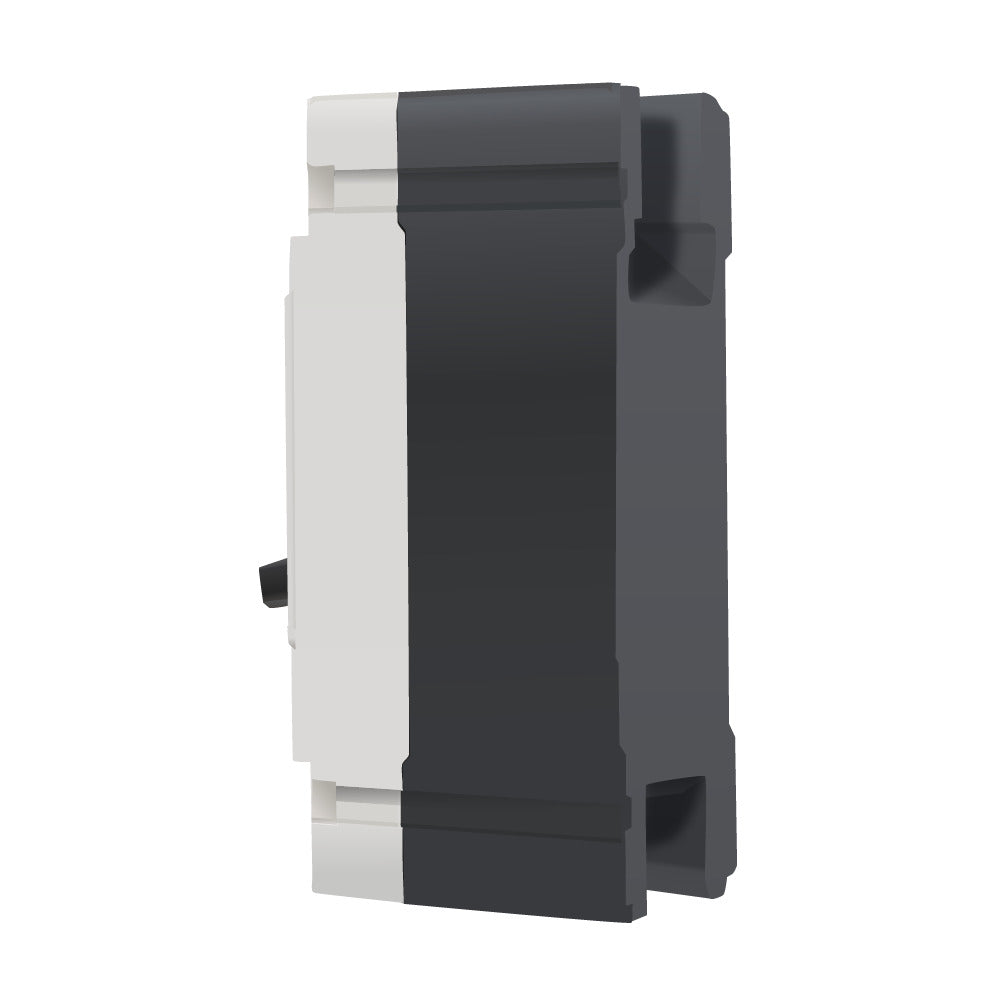

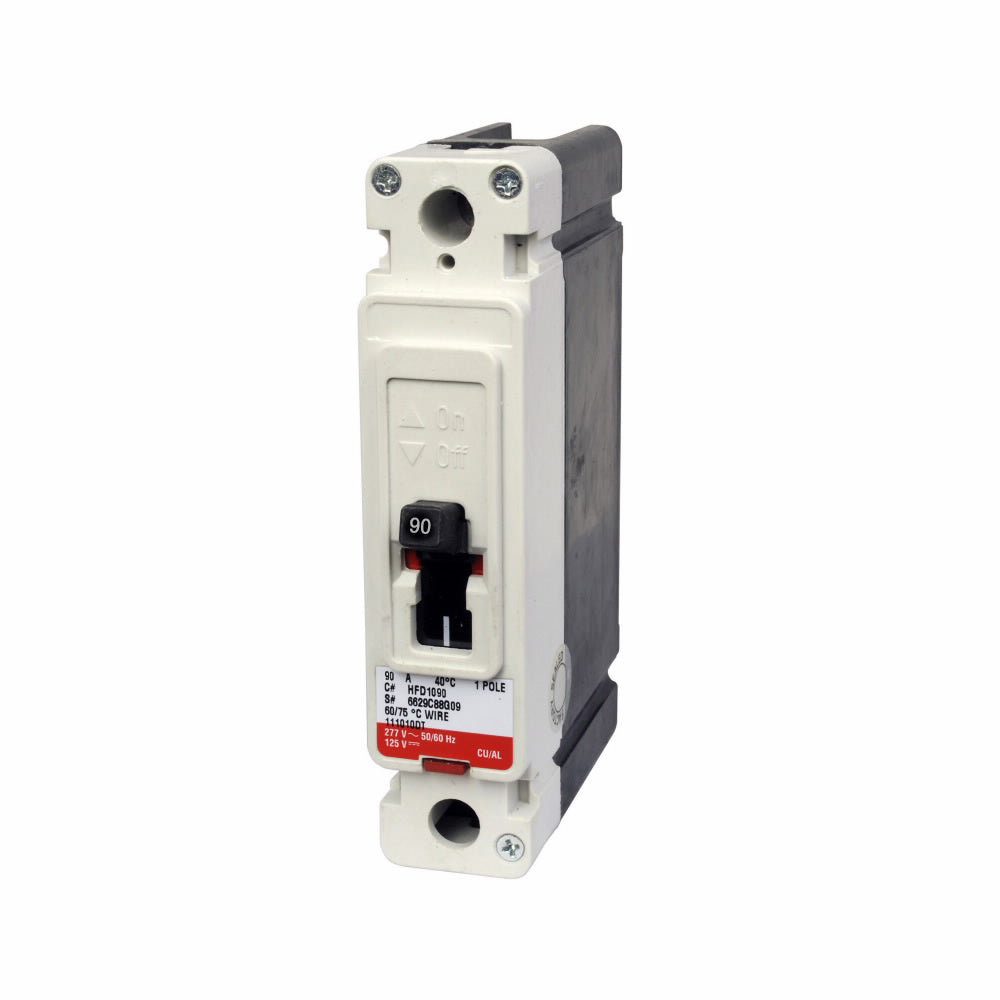

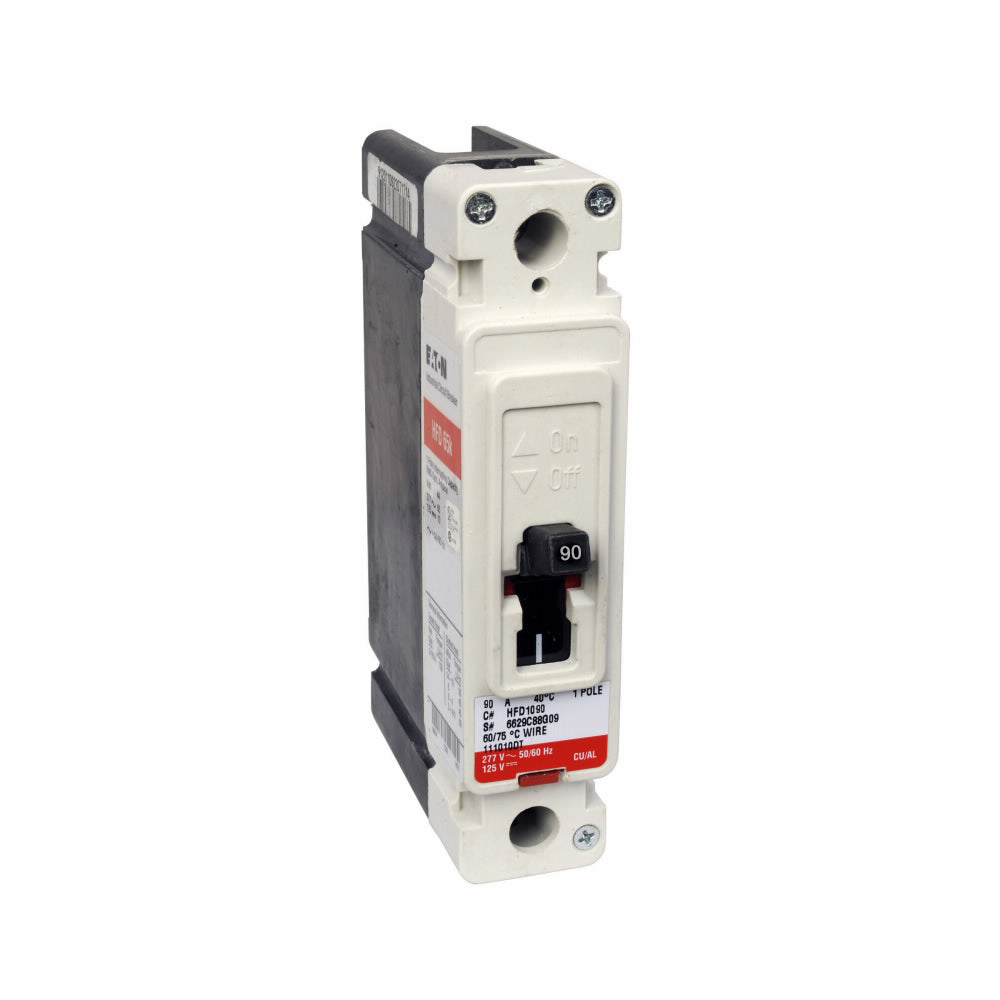

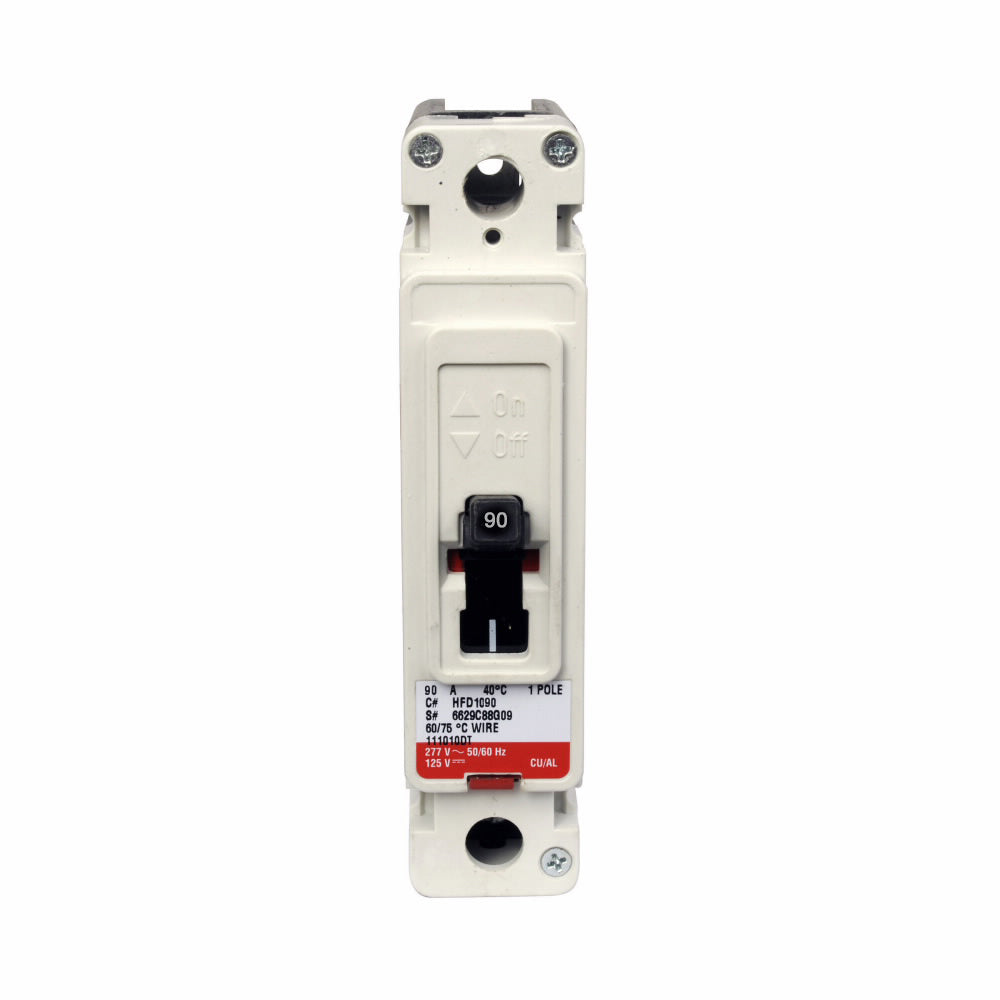

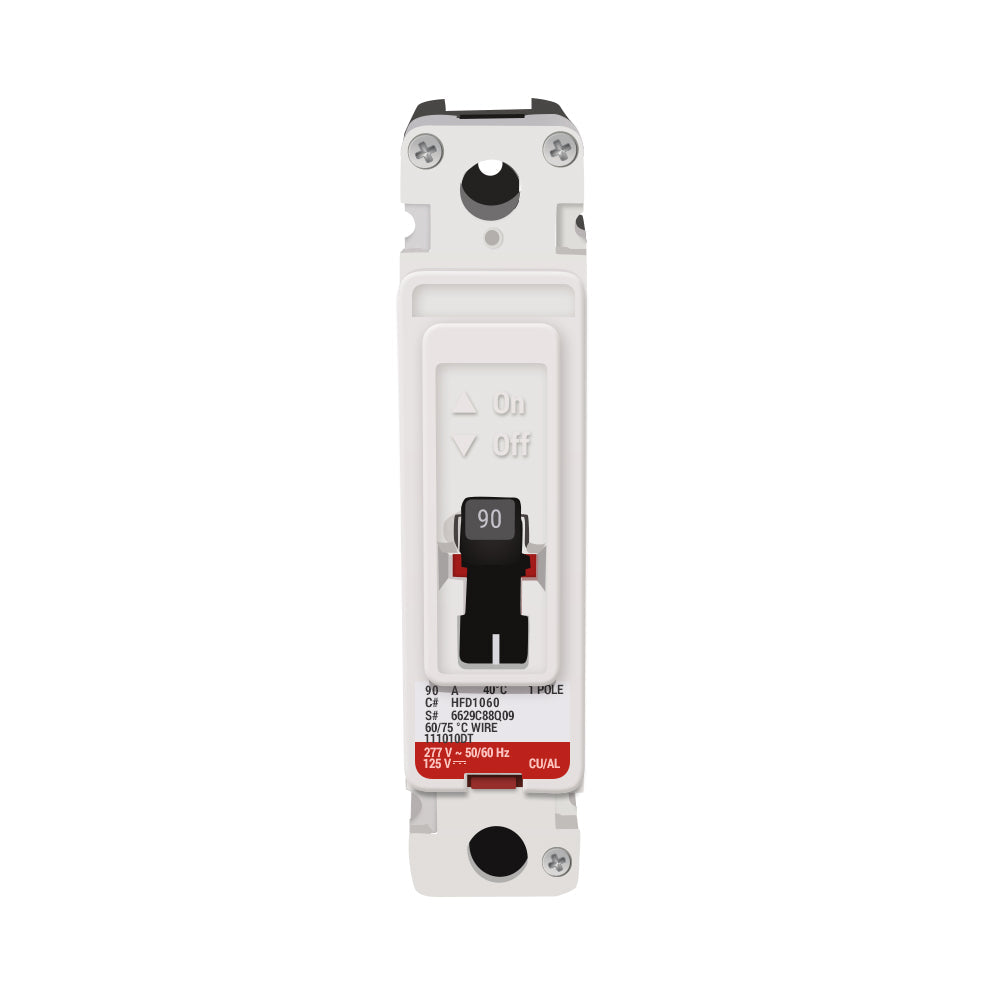

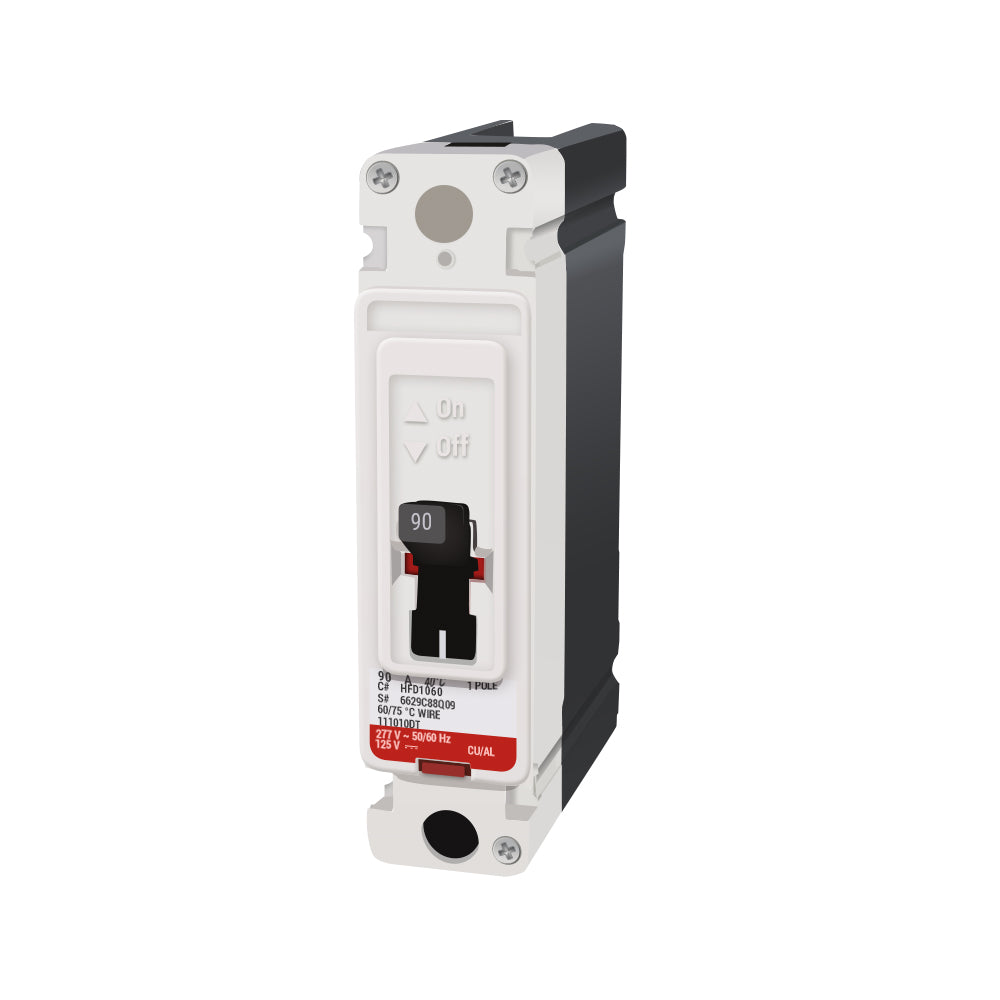

HFD1090 - Cutler Hammer 90A 277V 1-Pole Molded Case Circuit Breaker Thermal Magnetic Frame 2

HFD1090

HFD1090 is a Cutler Hammer molded case circuit breaker with a 90 amp rating, 277 volts, and 1 pole designed for reliable circuit protection.This thermal magnetic circuit breaker features a Frame 2 design with a 65kA interrupting rating at 277V, bolt-on mounting, and load side lug terminals. It provides long time and instantaneous trip functions with a non-interchangeable trip unit, suitable for single-phase applications requiring high interrupting capacity and robust protection.

• Amperage: 90A
• Voltage: 277V AC
• Poles: 1
• Frame: 2 (FD)
• Interrupt Rating: 65kA at 277V
• Trip Unit: Thermal Magnetic (T-M)
• Mounting Type: Bolt-On
• Connection: Load Side Lug Terminals
• Phase: Single Phase
• Non-Interchangeable Trip
• High Interrupting Capacity
• Certifications: Eaton Standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD1090
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 277 AC
• Amperage : 90
• Phase : 1
• Poles : 1
• AIC rating : 65kA@277V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786689319397
• GTIN : 00786689319397
• Dimensions : 3.4 in x 1.4 in x 6 in (Length/Depth x Height x Width)
• Weight : 2
