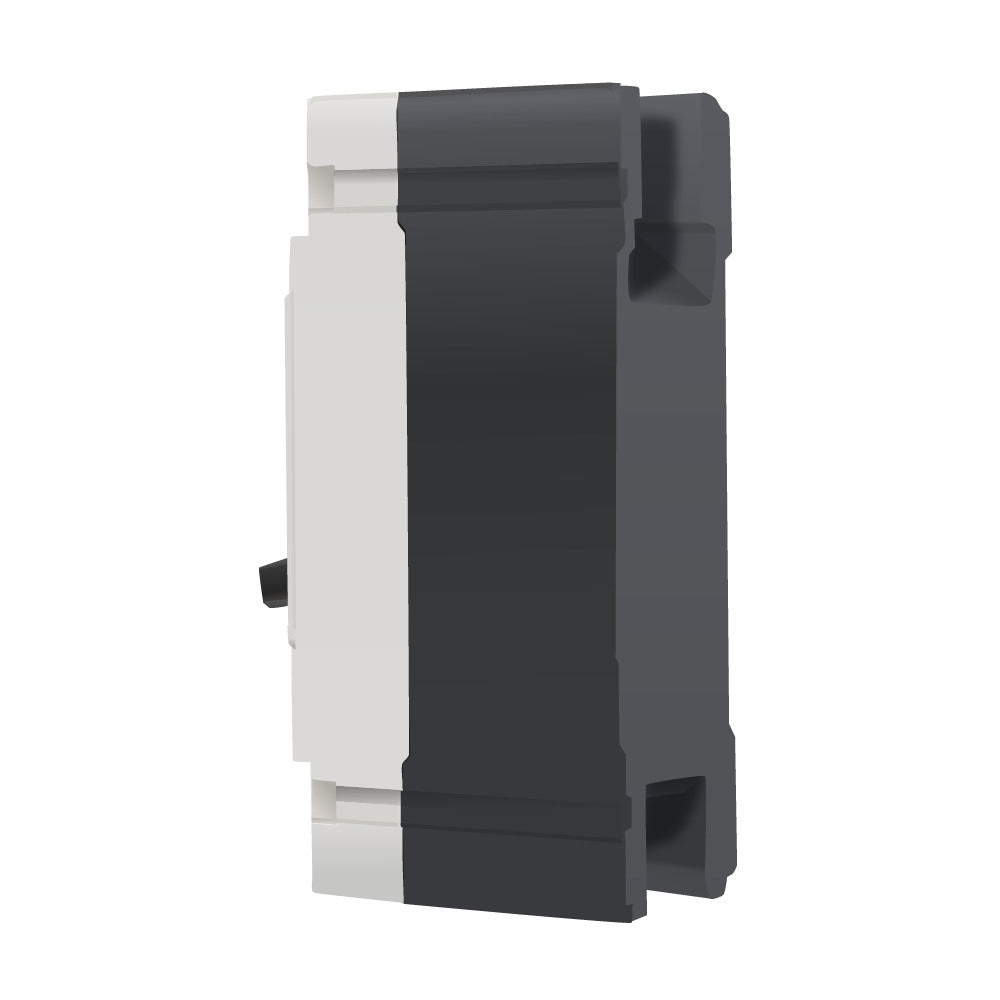

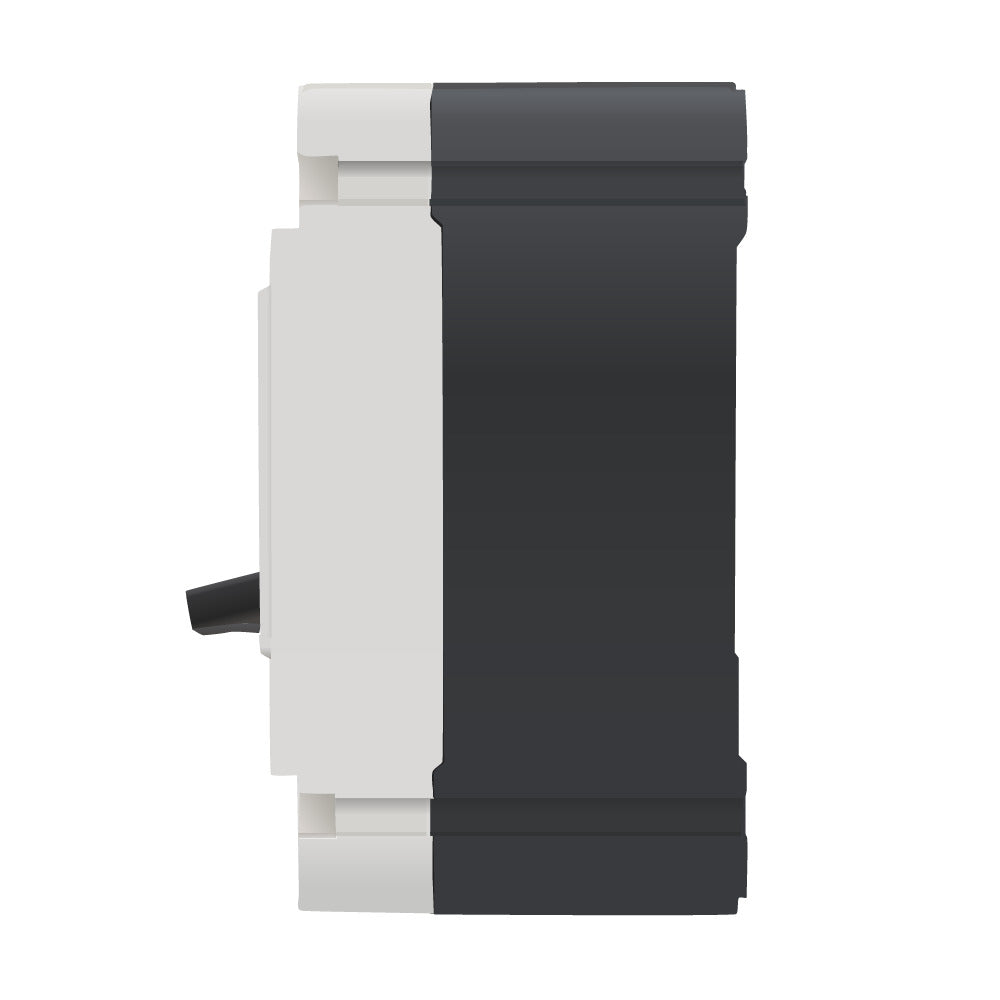

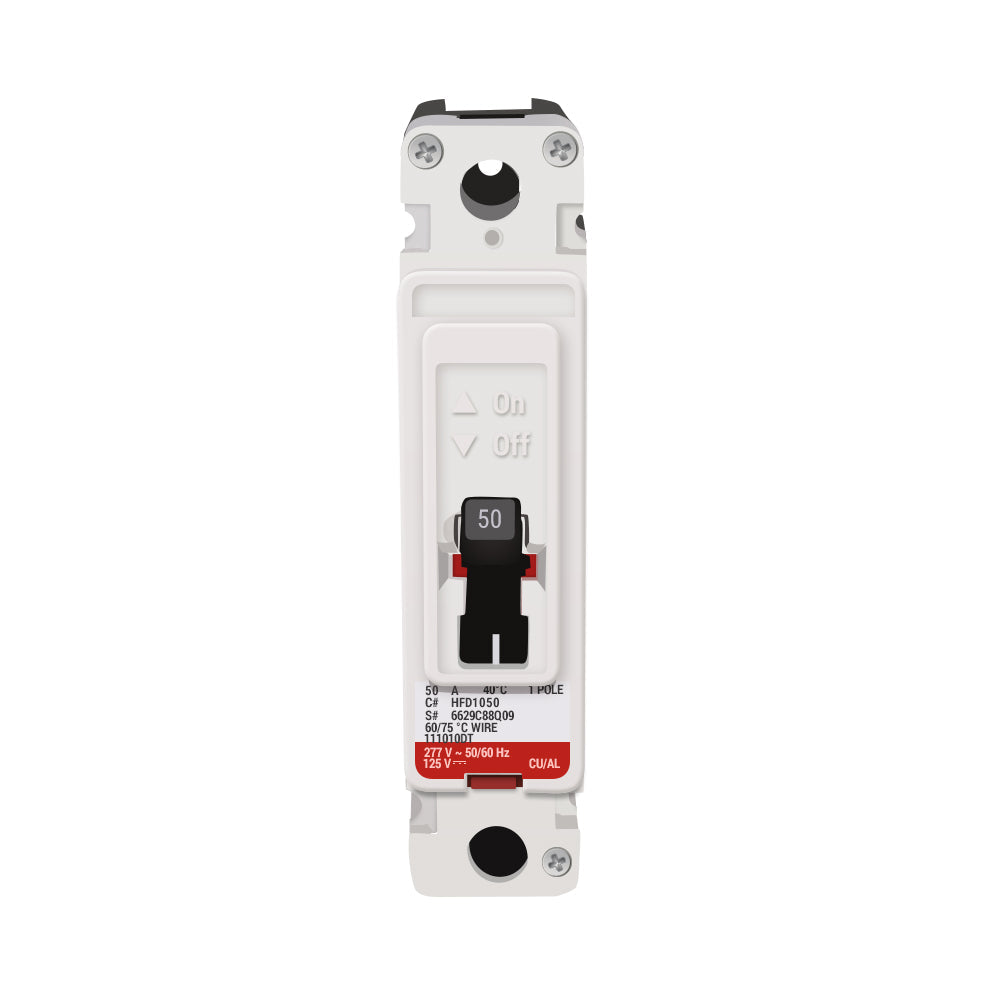

HFD1050 - Eaton Series C F-Frame Molded Case Circuit Breaker 1P 50A 347VAC 125VDC Fixed Thermal Magnetic Trip

HFD1050

HFD1050 is a single-pole, 50A molded case circuit breaker from Eaton's Series C F-Frame lineup, designed for reliable protection in commercial and industrial applications. This breaker features a fixed thermal and fixed magnetic trip unit, rated for 347VAC and 125VDC, with a 65kAIC interrupt rating at 277VAC and 100kAIC at 240VAC. It is suitable for panel mounting and load-side connections, operating at 50/60 Hz.

• Part Number: HFD1050
• Manufacturer: Eaton
• Series/Frame: Series C, F-Frame
• Poles: 1
• Amperage: 50A
• Voltage Rating: 347VAC, 125VDC
• Interrupt Rating: 65kAIC @ 277VAC, 100kAIC @ 240VAC
• Mounting Type: Panel
• Connection: Load Side
• Trip Unit: Fixed Thermal, Fixed Magnetic
• Frequency: 50/60 Hz
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD1050
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 277 AC
• Amperage : 50
• Phase : 1
• Poles : 1
• AIC rating : 65kA@277V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679175316
• GTIN : 00786679175316
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 1.38 in (Length/Depth x Height x Width)
• Weight : 4
• Certification : UL Listed
