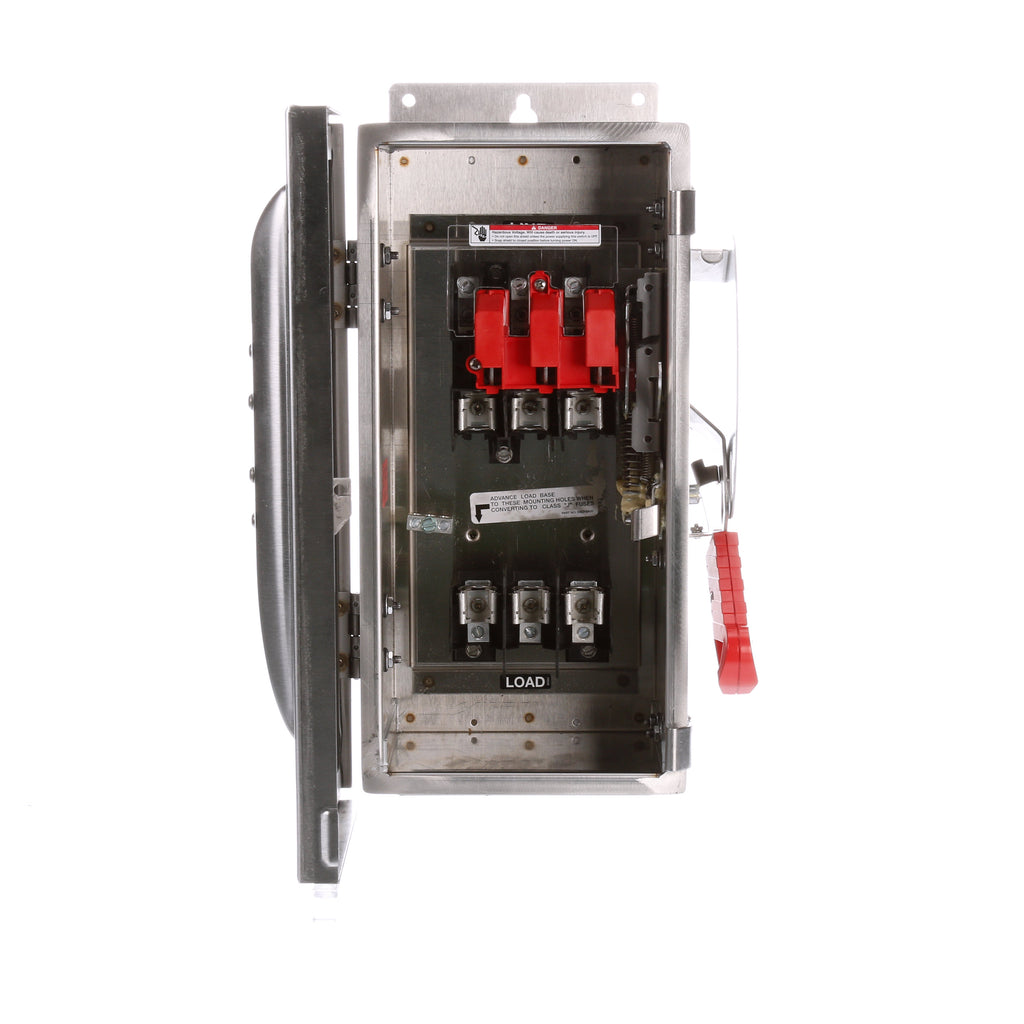

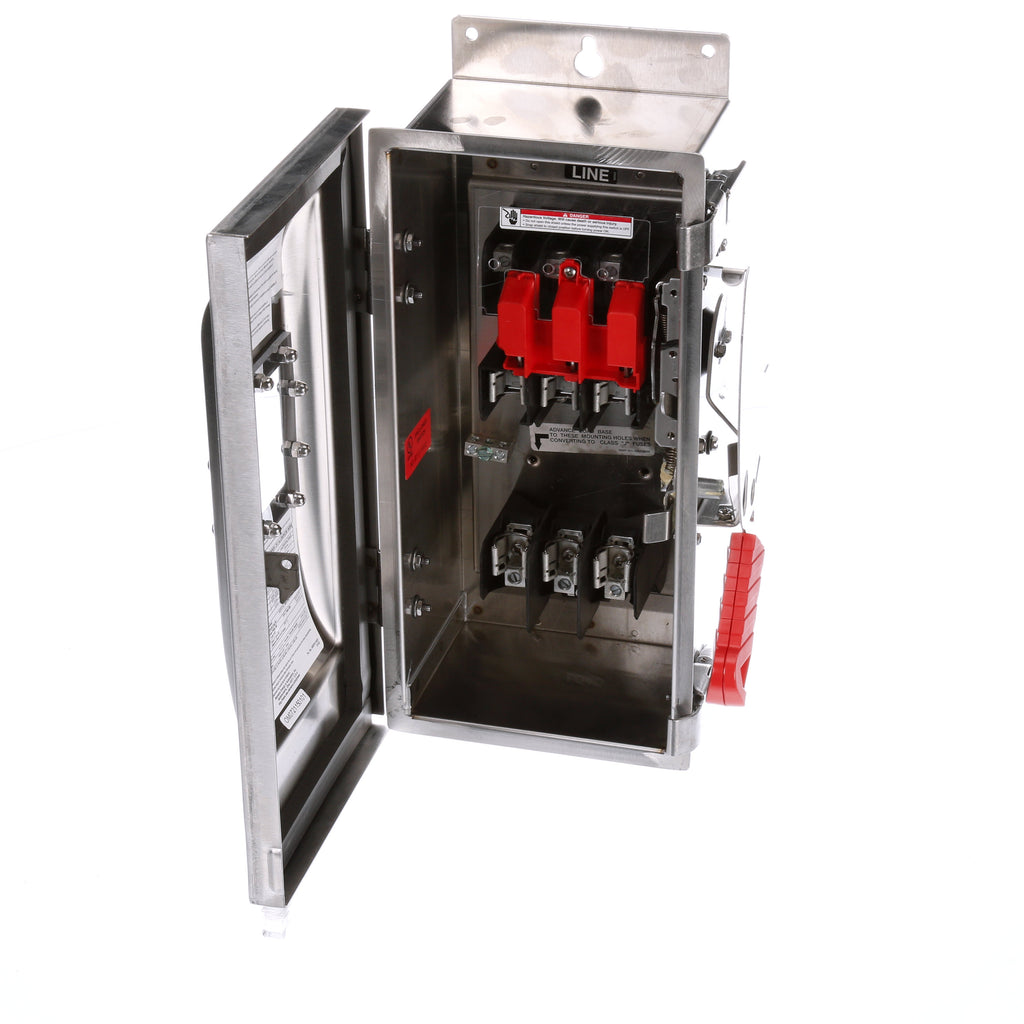

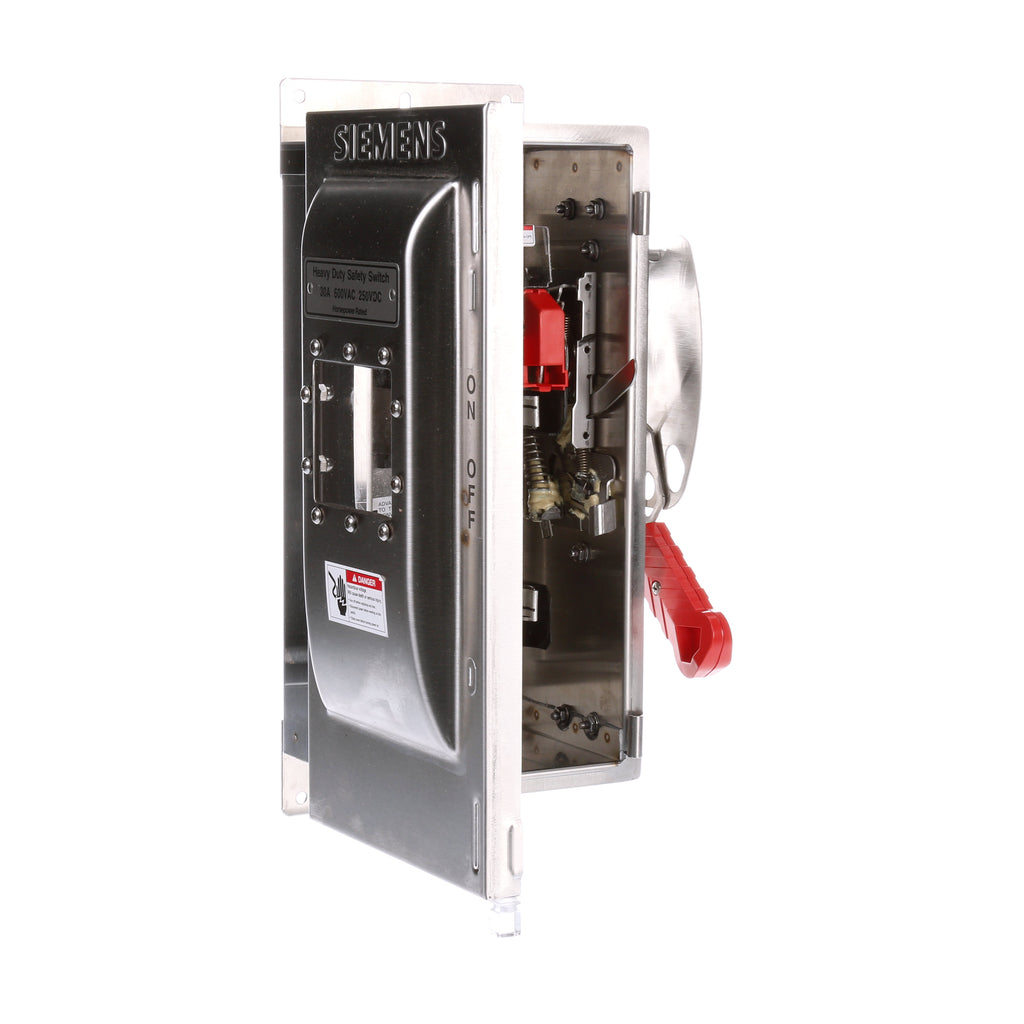

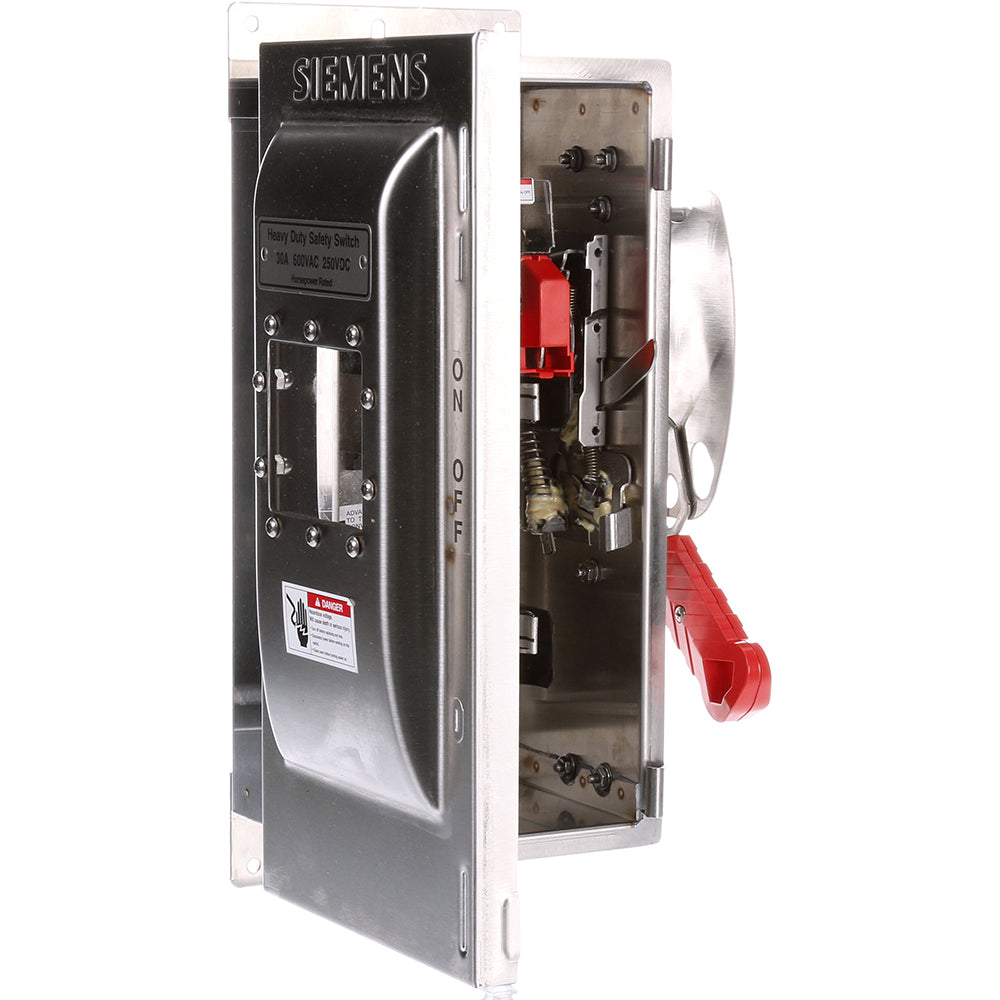

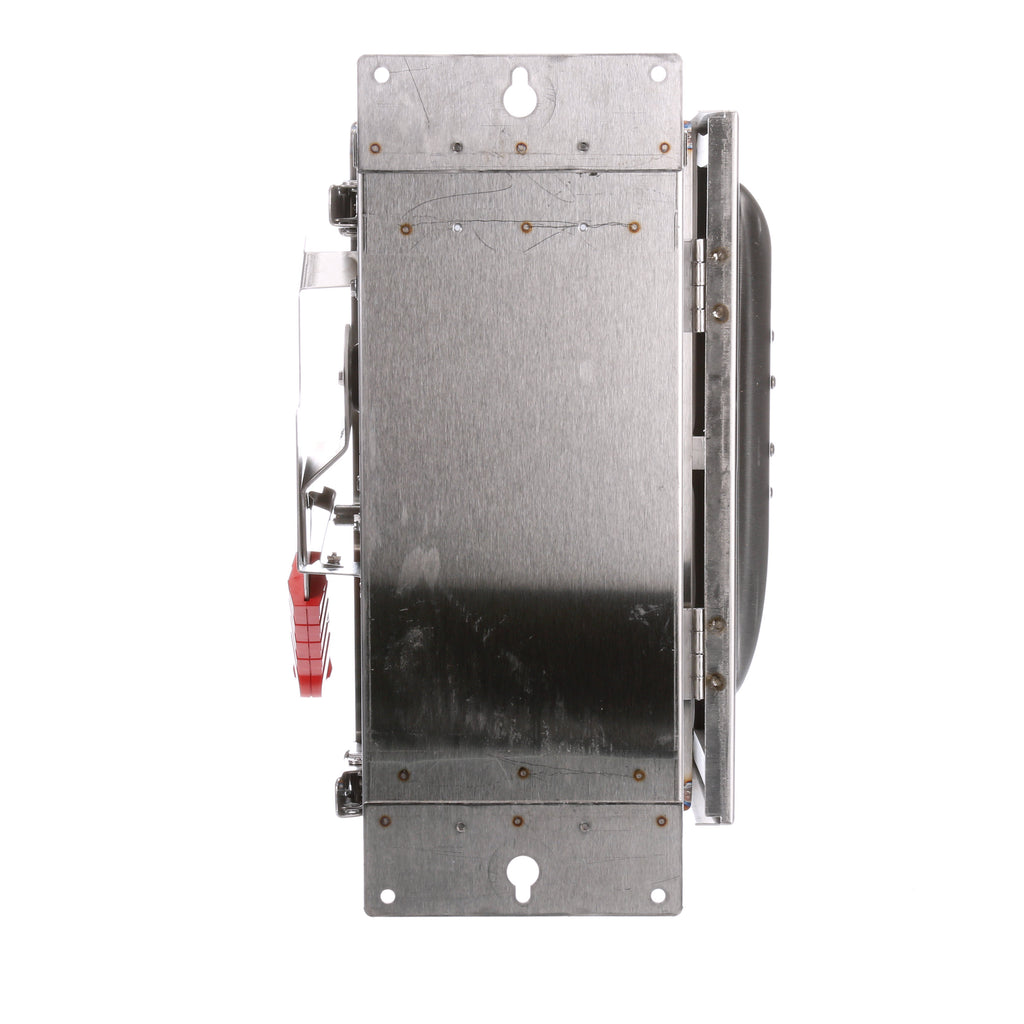

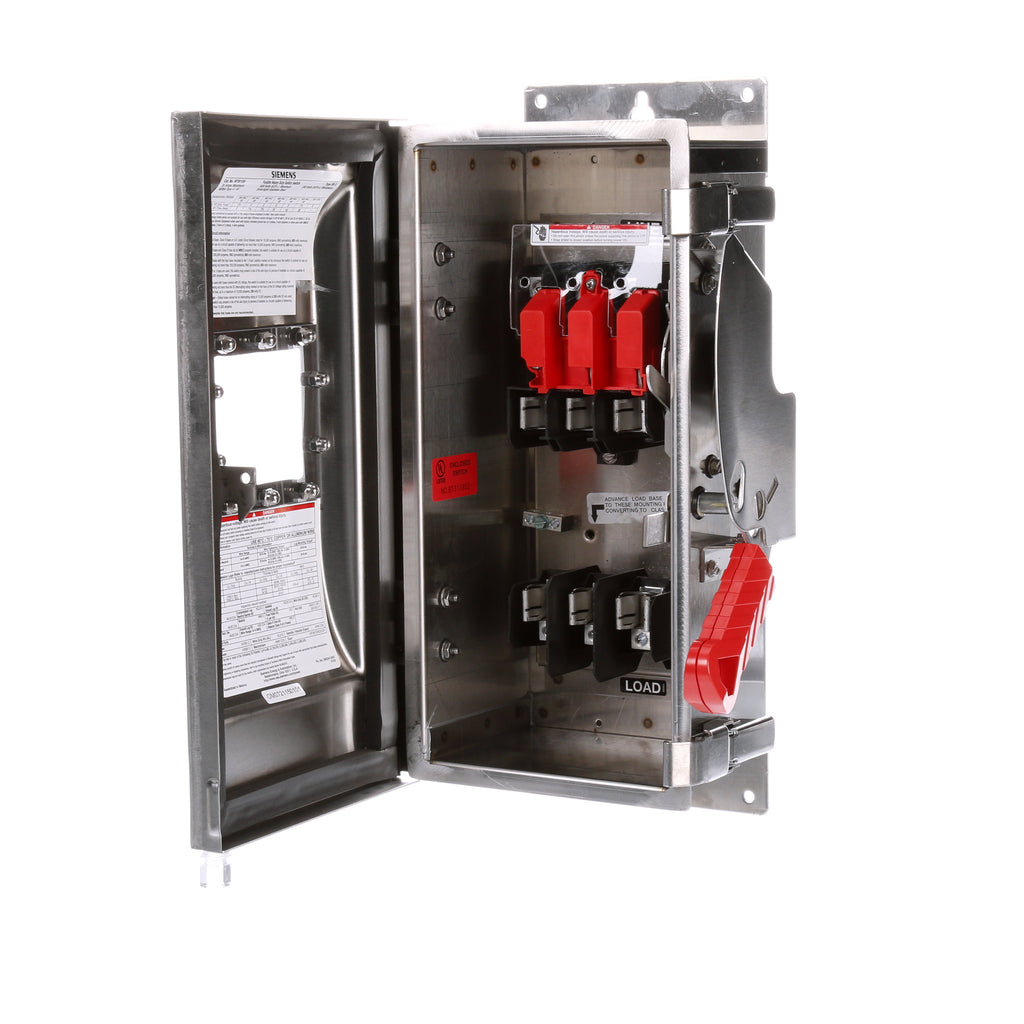

HF361SW - Siemens 30 Amp 600 VAC 3-Pole Fusible Heavy Duty Safety Switch NEMA 4X Stainless Steel

HF361SW

HF361SW is a Siemens 30 Amp, 600 VAC, 3-pole fusible heavy duty safety switch with a NEMA 4X stainless steel enclosure.This Type VBII enclosed single throw safety switch features a 7-1/2 hp rating, TPST contact form, and is designed for surface mounting with lug terminals. It offers a 200 kA short circuit rating and operates within a temperature range of -29 to 85 degrees Celsius. The enclosure is made of 304 grade stainless steel, providing durability for indoor or outdoor use.

Key Specifications
• Amperage: 30 A
• Voltage: 600 VAC
• Poles: 3
• Type: VBII Enclosed Fusible Heavy Duty
• Horsepower: 7-1/2 hp
• Contact Form: TPST (Triple Pole Single Throw)
• Enclosure: NEMA 4X, 304 Stainless Steel
• Mounting: Surface Mount
• Interrupt Rating: 200 kA
• Temperature Range: -29 to 85 ÁC
• Dimensions: 17.31 in H x 7.42 in W x 10.46 in D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HF361SW
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X
• Compatible Frames : PAF



Product Data

• UPC : 078364322181
• GTIN : 00783643221819
• Country of Origin : Mexico
• Dimensions : 10.63 x 7.874 x 18.898 inch
• Weight : 17.483
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Certification : UL listed
