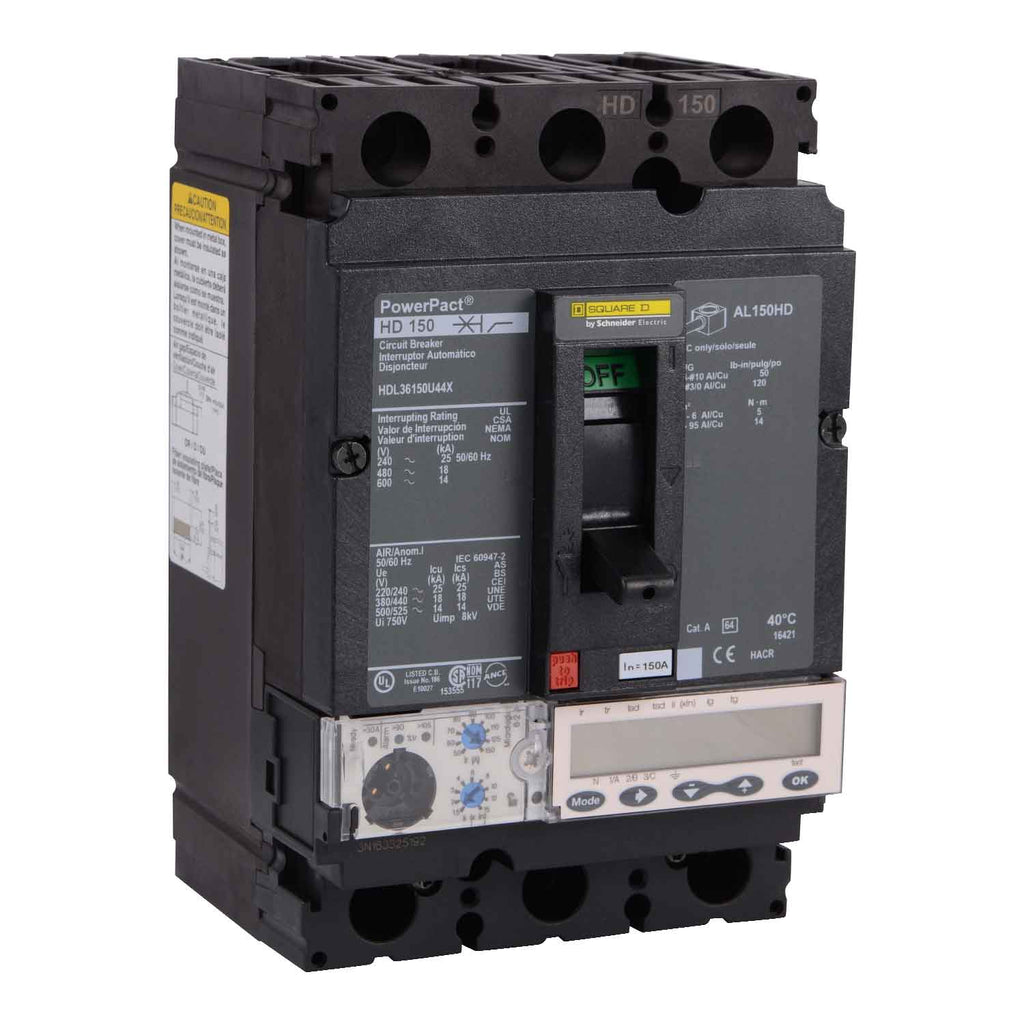

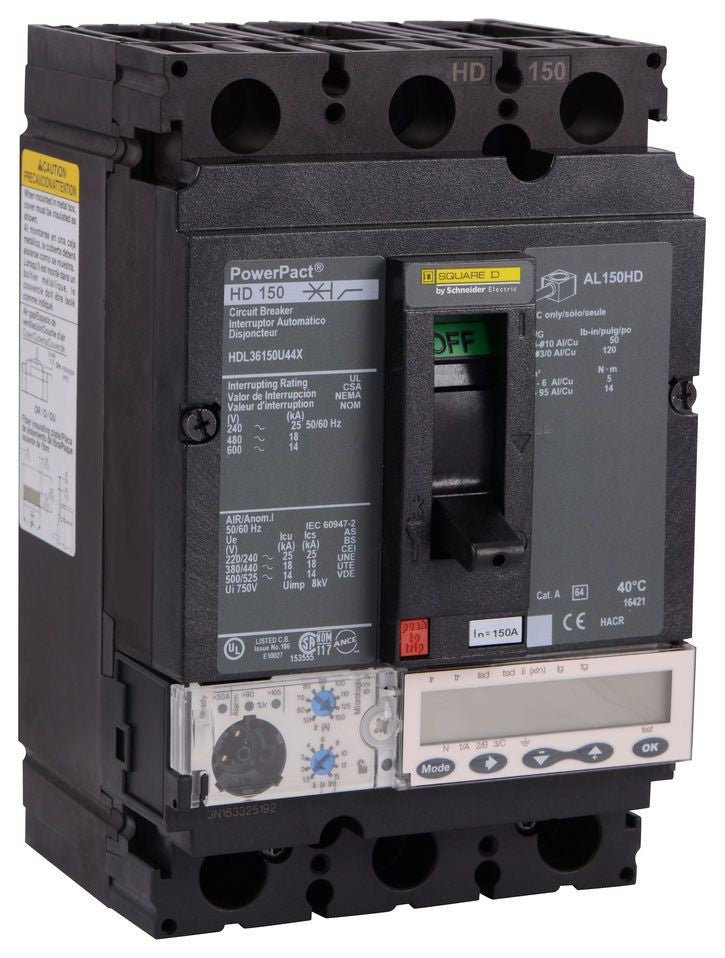

HDL36150U44X - Square D 150A 600VAC 3 Pole Powerpact H Molded Case Circuit Breaker Electronic Trip D Frame 14kA

HDL36150U44X

HDL36150U44X is a Square D Powerpact H Molded Case Circuit Breaker designed for reliable circuit protection.This 3-pole breaker features a 150 ampere rating, 600 VAC voltage rating, and a 14 kA interrupt rating. It uses an electronic trip unit with ammeter and Micrologic technology for advanced protection including LSIG (Long-Time, Short-Time, Instantaneous, and Ground Fault) trip functions. The breaker has a D frame size and toggle actuator, with line/load lug connections supporting 14 to 3/0 AWG wire. It is UL 489 listed and suitable for unit mount applications.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Interrupt Rating: 14 kA
• Frame: D
• Trip Unit: Electronic/Ammeter/Micrologic
• Actuator Type: Toggle
• Mounting Type: Unit Mount
• Wire Size: 14 to 3/0 AWG
• Connection Type: Line/Load Lug
• Certifications: UL 489 Listed
• Country of Origin: US
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HDL36150U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State



Product Data

• UPC : 785901085478
• GTIN : 00785901085478
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
