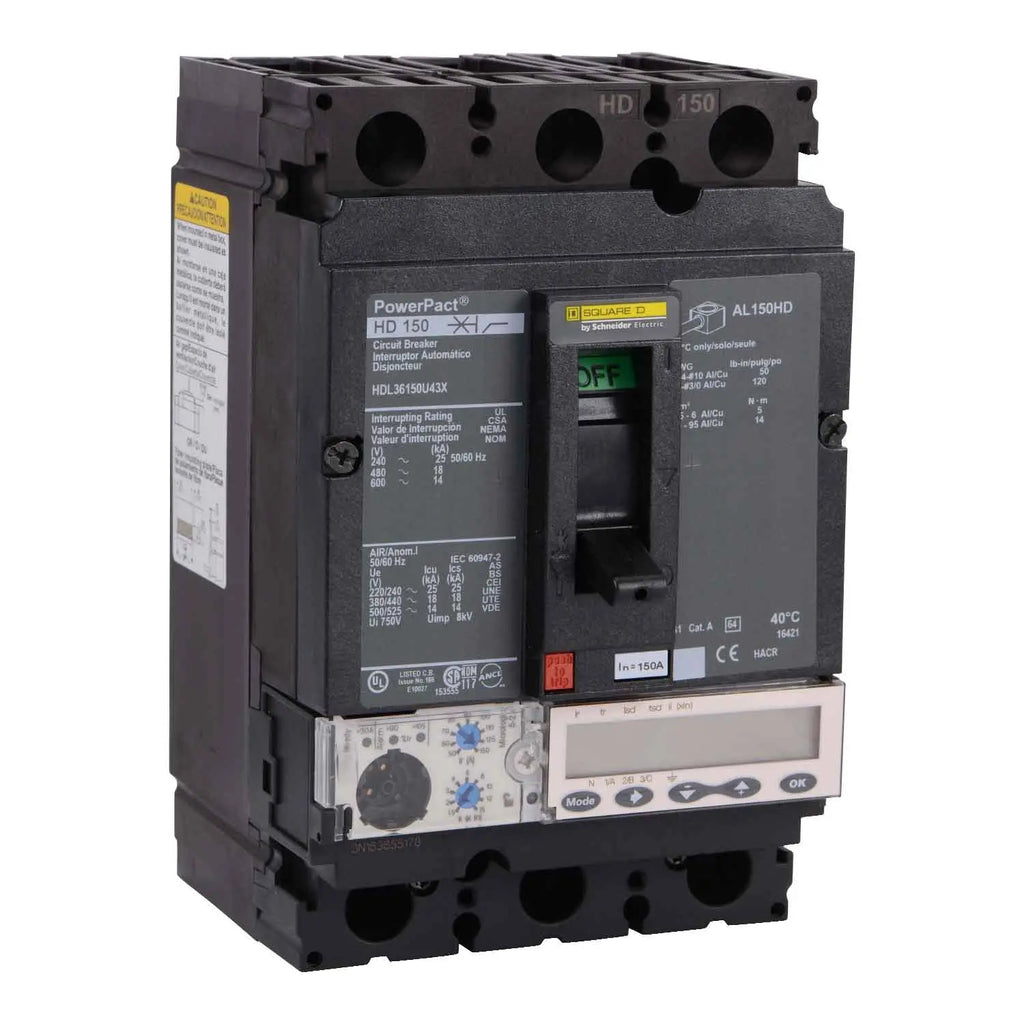

HDL36150U43X - Square D PowerPact H 150A 3-Pole 600V Molded Case Circuit Breaker

HDL36150U43X

HDL36150U43X is a 150 amp, 3-pole, 600 volt molded case circuit breaker manufactured by Square D in the PowerPact H series. This unit mount breaker features electronic trip protection with Micrologic 5.2A technology and current limiting capability for reliable overcurrent protection in industrial and commercial applications. Key Specifications

• Amperage Rating: 150 Amp
• Voltage Rating: 600 VAC
• Poles: 3-Pole
• Frame Type: H Frame
• Series: PowerPact
• Trip Unit: Micrologic 5.2A Electronic with LSI
• Mounting: Unit Mount with Lugs
• Interrupt Rating: 25 kA at 240V AC
• Current Limiting: Yes
• Certifications: UL 489, CSA, NEMA, VDE, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36150U43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : A@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901012122
• GTIN : 00785901012122
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
