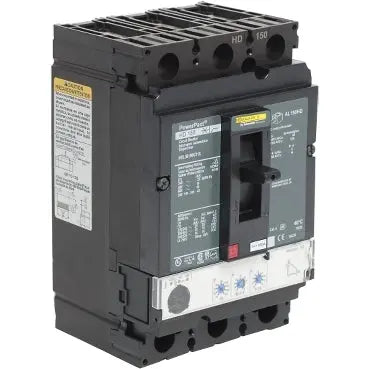

HDL36150SN - Square D 150A 600V 3P H-Frame Molded Case Circuit Breaker, 18kA Interrupt Rating, Thermal-Magnetic Trip, UL Listed, CSA Certified, IEC Rated

HDL36150SN

HDL36150SN is a Square D molded case circuit breaker designed for reliable power distribution and protection.

This thermal-magnetic trip unit breaker is part of the PowerPact H-Frame series, offering a 150A continuous current rating, 600V AC/250V DC voltage rating, and a robust 18kA interrupt rating at 480V. It features unit mounting, is UL Listed, CSA Certified, and IEC Rated for compliance and safety in commercial and industrial applications.

Key Specifications

• Part Number: HDL36150SN
• Manufacturer: Square D
• Amperage: 150A
• Voltage: 600V AC / 250V DC
• Poles: 3P
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA @ 480V AC (14kA @ 600V AC, 25kA @ 240V AC, 20kA @ 250V DC)
• Series/Frame: PowerPact H-Frame
• Trip Unit: Thermal-Magnetic
• Certifications: UL Listed, CSA Certified, IEC Rated
• Wire Range: AWG 14 to 3/0 (aluminum/copper)
• Dimensions: 6.4" H x 4.12" W x 4.36" D
• Weight: 1.91 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 12Vdc shunt trip

Specifications

• Part Number: HDL36150SN
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590157598
• GTIN : 00785901575986
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
