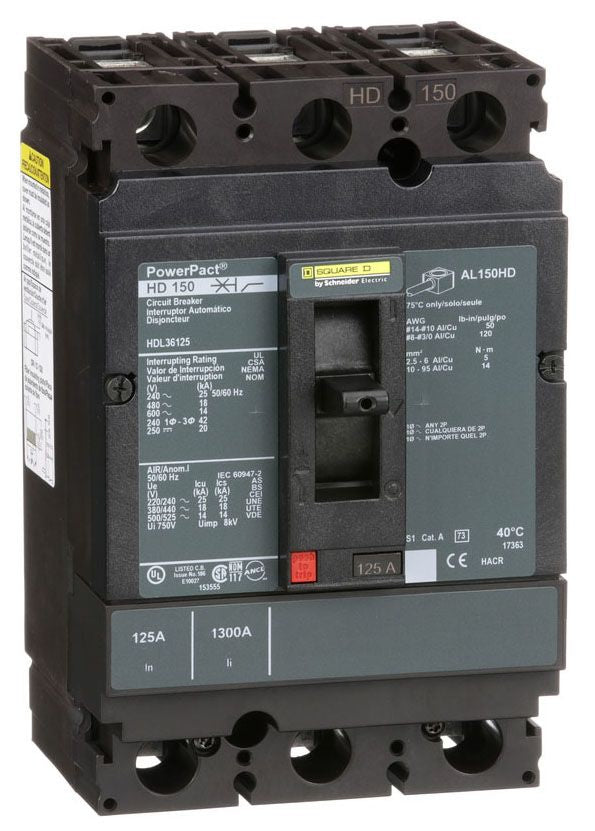

HDL36125AA - Square D 125A 600V 3-Pole Thermal Magnetic Molded Case Circuit Breaker Powerpact H-Frame

HDL36125AA

HDL36125AA is a 125 Amp, 600 Volt, 3-pole thermal magnetic molded case circuit breaker from Square D's Powerpact H-Frame series.This circuit breaker features a thermal-magnetic trip unit with long-time and instantaneous protection, an 18kA interrupting rating at 480V, and feed-thru lug connections for line and load. It is UL listed and suitable for reverse fed applications, designed for unit mount lug installation with a toggle control type.

• Amperage: 125 A
• Voltage Rating: 600 V AC
• Poles: 3
• Interrupt Rating: 18kA at 480 V
• Frame Type: Powerpact H-Frame
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Mounting Type: Unit mount lug
• Connection: Feed-thru lugs (line and load)
• Control Type: Toggle
• AWG Range: 14 to 3/0 aluminum/copper terminals
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36125AA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901553304
• GTIN : 00785901553304
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
