HDL36100U31X - Square D 100A 600VAC 3-Pole Molded Case Circuit Breaker, Unit Mount, 14kA Interrupt Rating, Micrologic 3.2 Trip Unit

HDL36100U31X

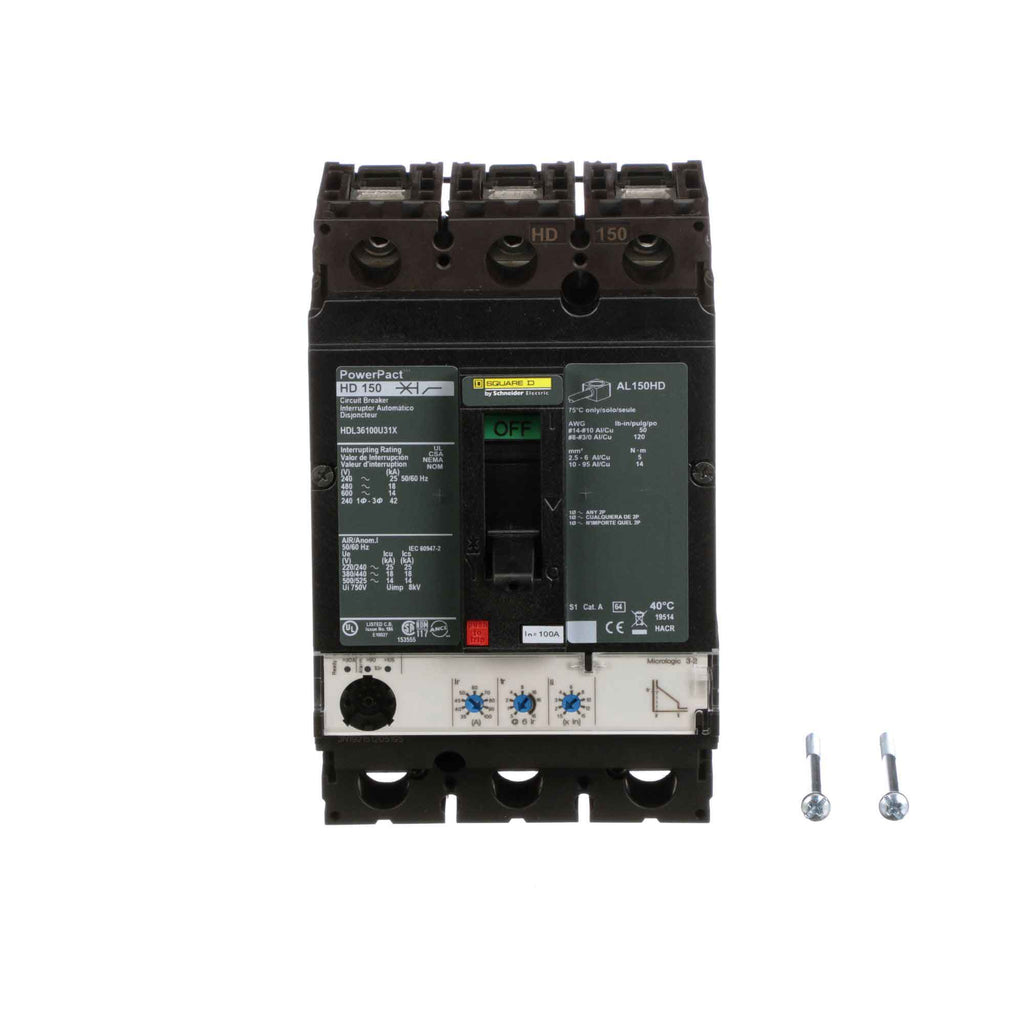

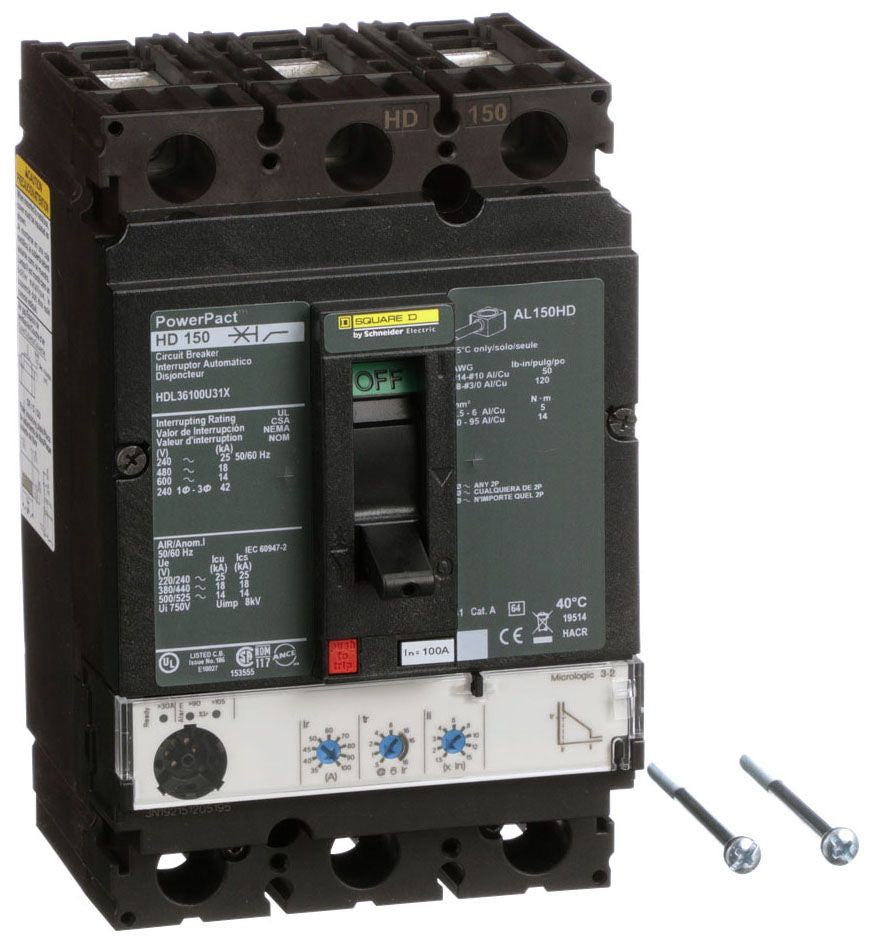

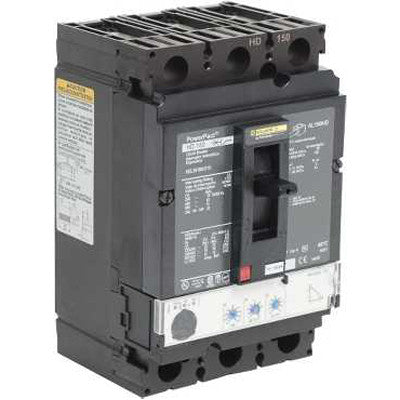

HDL36100U31X is a Square D 3-pole molded case circuit breaker rated for 100 amps and 600 volts AC with a 14kA interrupt rating.This unit mount breaker features a solid state protection system with long time and instantaneous trip functions, equipped with a Micrologic 3.2 electronic trip unit. It supports line and load side lug connections compatible with AWG 14 to AWG 3/0 aluminum or copper wire. The breaker meets UL, CSA, NEMA, IEC, CE, NOM, and RoHS certifications, ensuring reliable and safe operation in industrial and commercial applications.

Key Specifications
• Amperage: 100A
• Voltage Rating: 600VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 14kA
• Series/Frame: HDL
• Trip Unit: Micrologic 3.2 Electronic
• Connection Type: Feed-Thru with Line and Load Lugs
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper
• Standards: UL, CSA, NEMA, IEC, CE, NOM, RoHS
• Actuator Type: Toggle
• Color: Black

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36100U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901548324
• GTIN : 00785901548324
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.28
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
