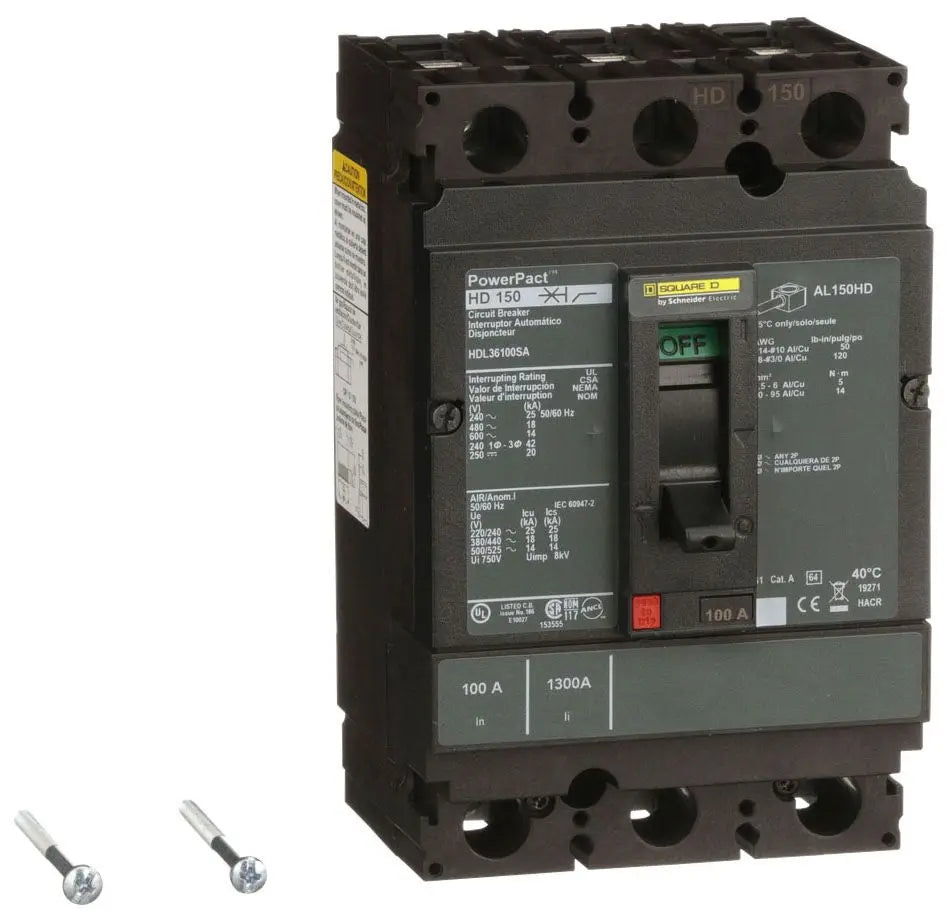

HDL36100SA - Square D 100A 600V 3-Pole PowerPact H Circuit Breaker Thermal-Magnetic Shunt Trip

HDL36100SA

HDL36100SA is a Square D PowerPact H series 3-pole circuit breaker with a 100 amp rating and thermal-magnetic trip unit featuring a shunt trip option.This molded case circuit breaker supports up to 600 V AC and 250 V DC system voltages with interrupt ratings of 18 kA at 480 V AC, 25 kA at 240 V AC, 14 kA at 600 V AC, and 20 kA at 250 V DC. It is designed for unit mount installation with line and load lug connections and supports wire gauges from AWG 14 to AWG 3/0 for aluminum or copper conductors. The breaker has a magnetic hold current of 900 A and a magnetic tripping current of 1700 A, with UL, CSA, and CE certifications.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 V AC / 250 V DC
• Number of Poles: 3
• Interrupt Rating: 18 kA @ 480 V AC, 25 kA @ 240 V AC, 14 kA @ 600 V AC, 20 kA @ 250 V DC
• Series/Frame: PowerPact H (HDL Frame)
• Trip Unit: Thermal-Magnetic with Shunt Trip 120 V AC
• Mounting Type: Unit Mount
• Electrical Connection: Line and Load Lugs
• Wire Gauge Range: AWG 14 to AWG 3/0 (Aluminum/Copper)
• Certifications: UL, CSA, CE
• Dimensions (HxWxD): 6.4 in x 4.12 in x 4.36 in
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

complete with 110/130Vac shunt trip




Specifications

• Part Number: HDL36100SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901525578
• GTIN : 00785901525578
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.189
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
