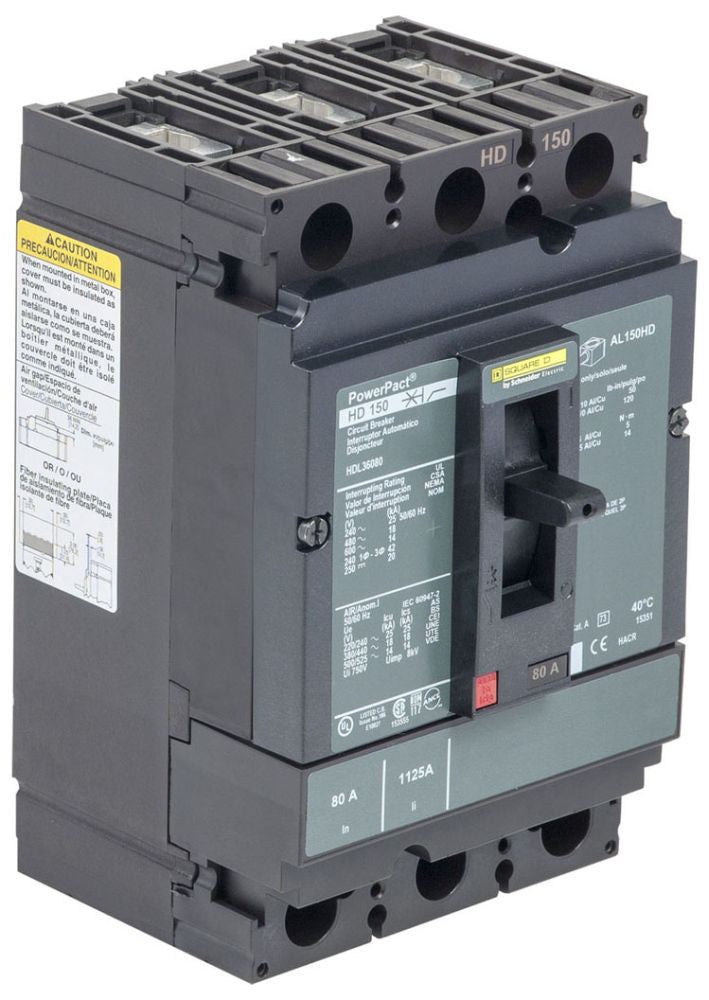

HDL36080C - Square D 600V 80A 3 Pole Molded Case Circuit Breaker Thermal Magnetic

HDL36080C

HDL36080C is a 3 pole, 600V, 80A molded case circuit breaker from Square D, designed for reliable protection in commercial and industrial applications. This breaker features a thermal magnetic trip unit and is part of the PowerPact H series, offering robust performance and safety. Engineered for durability, the HDL36080C provides a frame current rating of 150A and a short circuit breaking capacity of 18kA at 480VAC. It is UL 489 listed and features bolt-on mounting for secure installation. The breaker is current limiting and designed for use in a wide range of electrical distribution systems.

• Part Number: HDL36080C
• Manufacturer: Square D
• Series/Frame: PowerPact H
• Amperage: 80A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA @ 480VAC
• Frame Current Rating: 150A
• Trip Unit: Thermal Magnetic
• Certifications: UL 489 Listed
• Current Limiting: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36080C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901682530
• GTIN : 00785901682530
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
