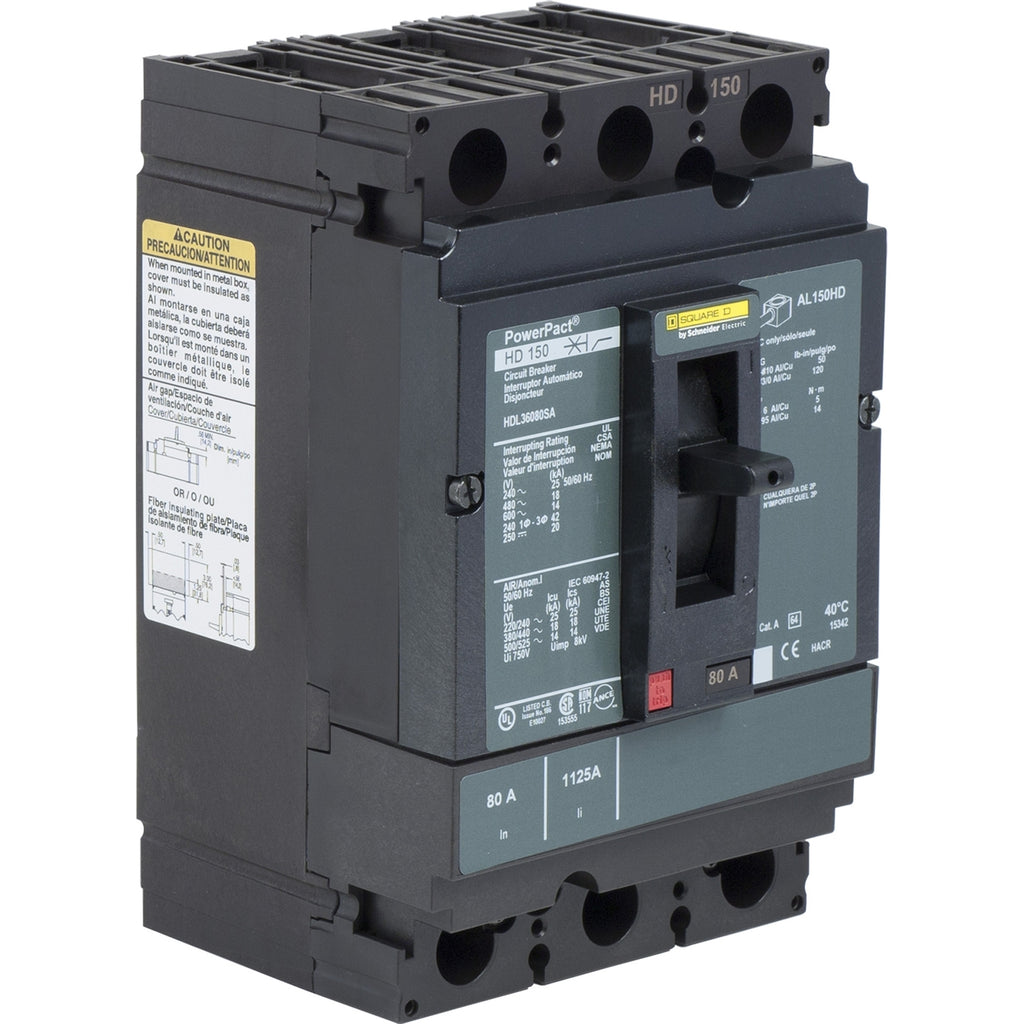

HDL36080AASA - Square D PowerPact H 3-Pole 80A 600V Molded Case Circuit Breaker Thermal Magnetic

HDL36080AASA

HDL36080AASA is a Square D PowerPact H molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3-pole, 80A, 600V circuit breaker features a thermal-magnetic trip unit, lugs on both line and load sides, and is suitable for unit mount applications. The HDL36080AASA offers a continuous current rating of 80%, magnetic hold current of 800A, and magnetic tripping current of 1450A. It is UL listed, suitable for reverse fed applications, and complies with UL, CSA, NOM, and IEC standards. The breaker is designed for easy installation and dependable performance in demanding environments.

• Part Number: HDL36080AASA
• Manufacturer: Square D (Schneider Electric)
• Series/Frame: PowerPact H
• Number of Poles: 3
• Rated Current: 80A
• Rated Voltage: 600V AC
• Interrupt Rating: 14kA @ 600V AC, 18kA @ 480V AC, 25kA @ 240V AC
• Mounting Type: Unit Mount
• Electrical Connection: Lugs Line / Lugs Load
• Wire Gauge: AWG 14 to AWG 3/0 (Aluminum/Copper)
• Trip Unit: Thermal-Magnetic
• Certifications: UL, CSA, NOM, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36080AASA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
