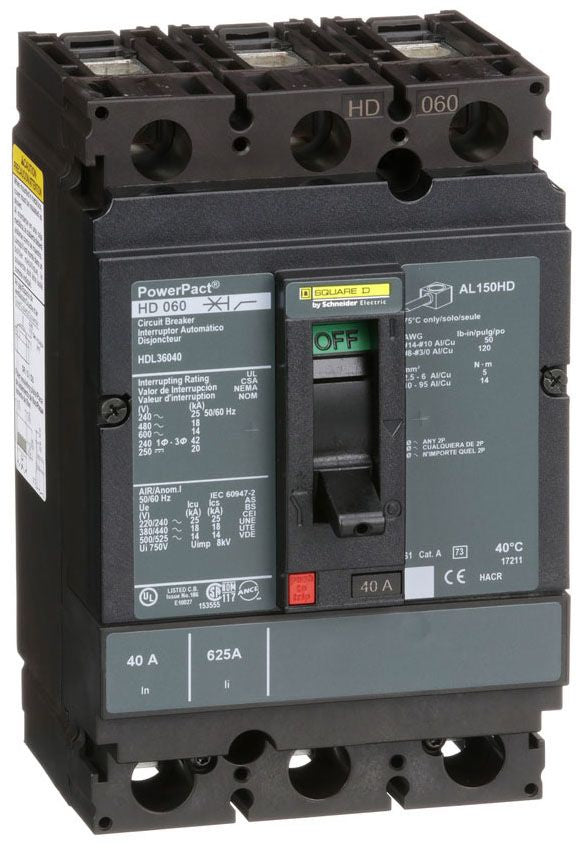

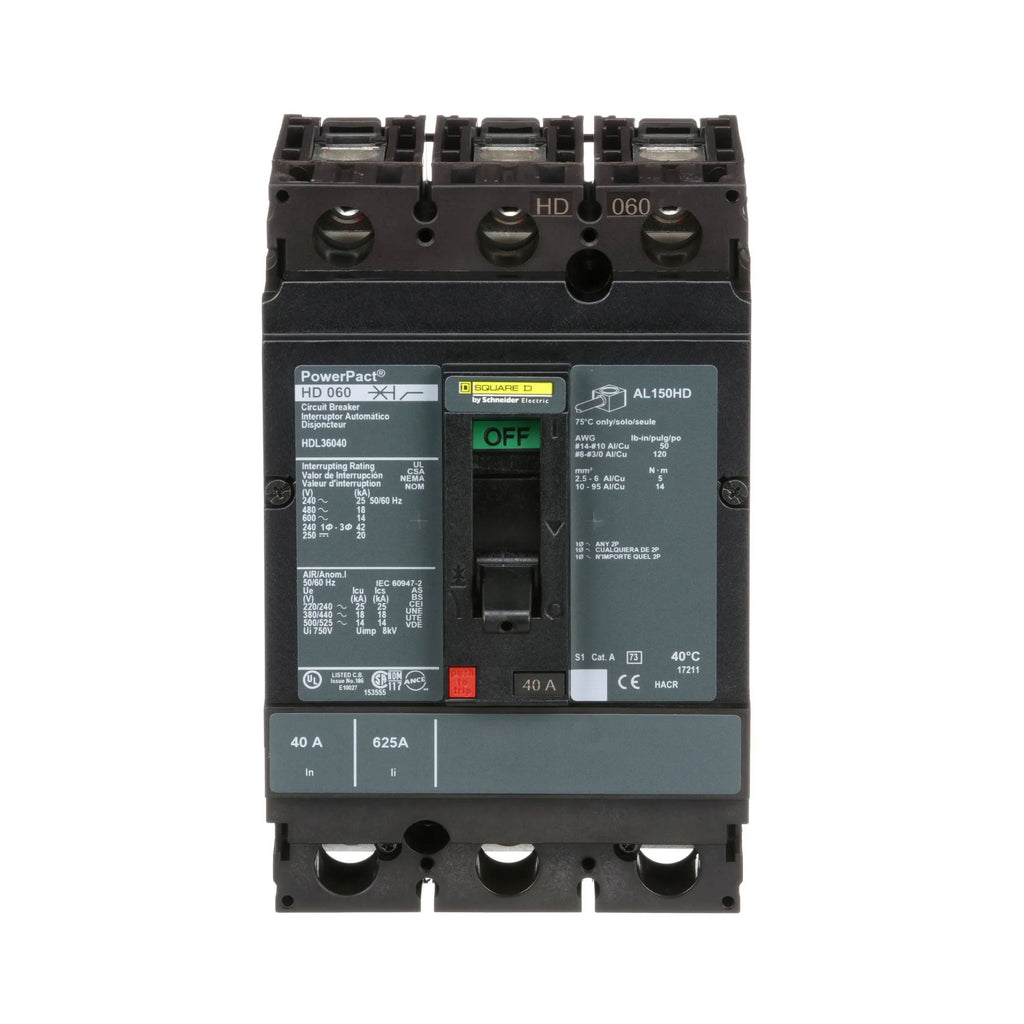

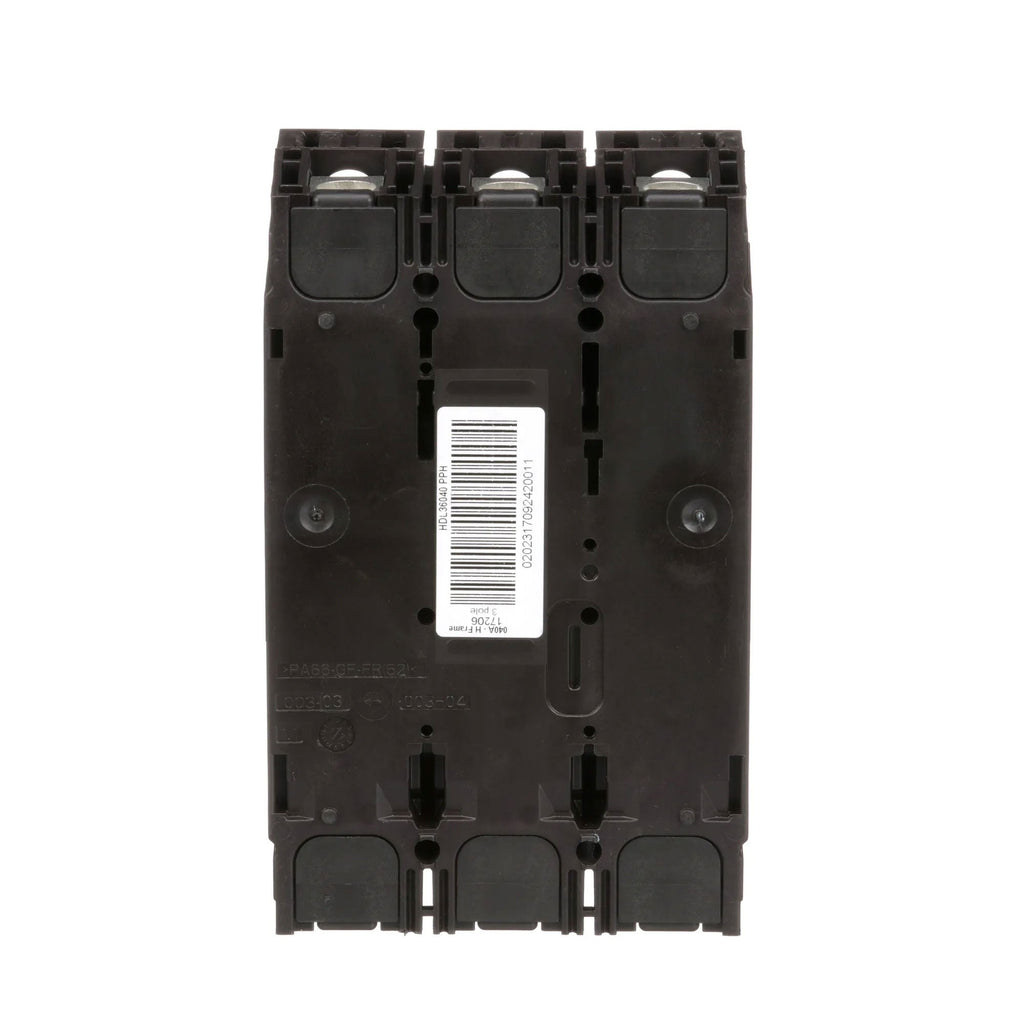

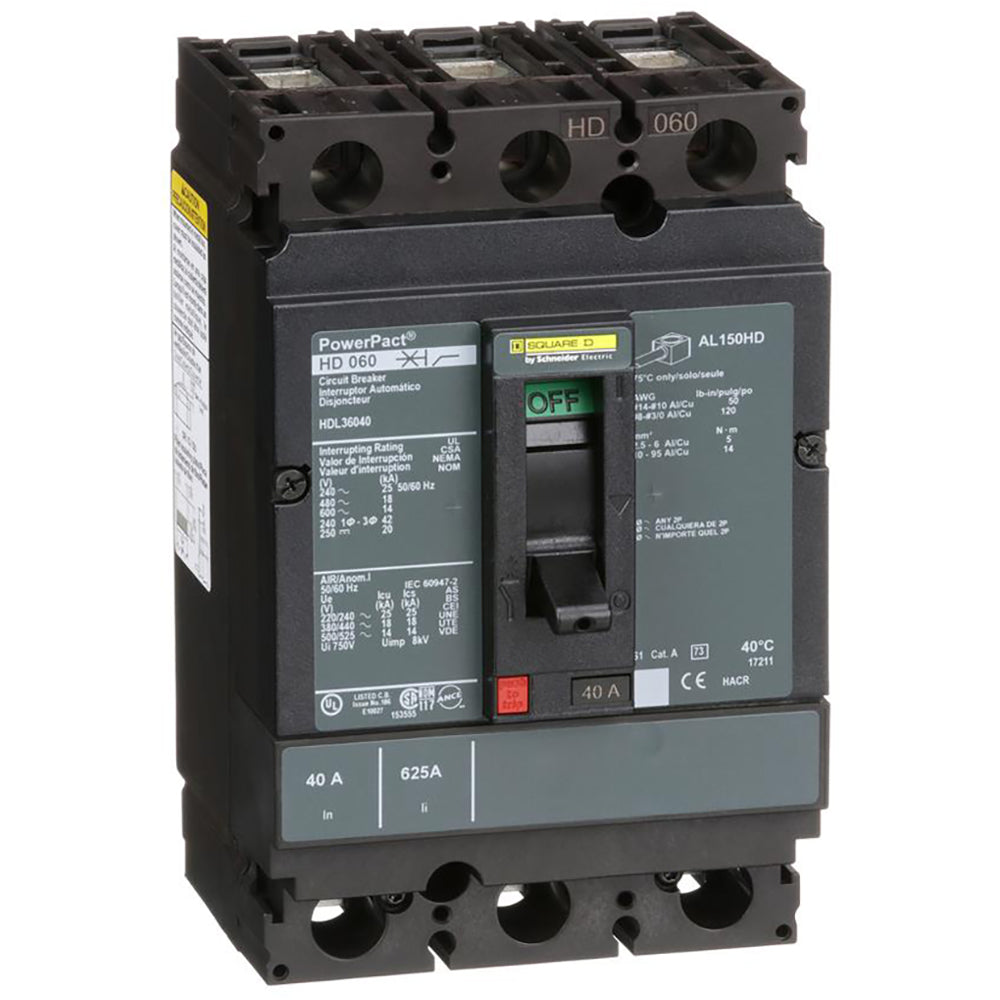

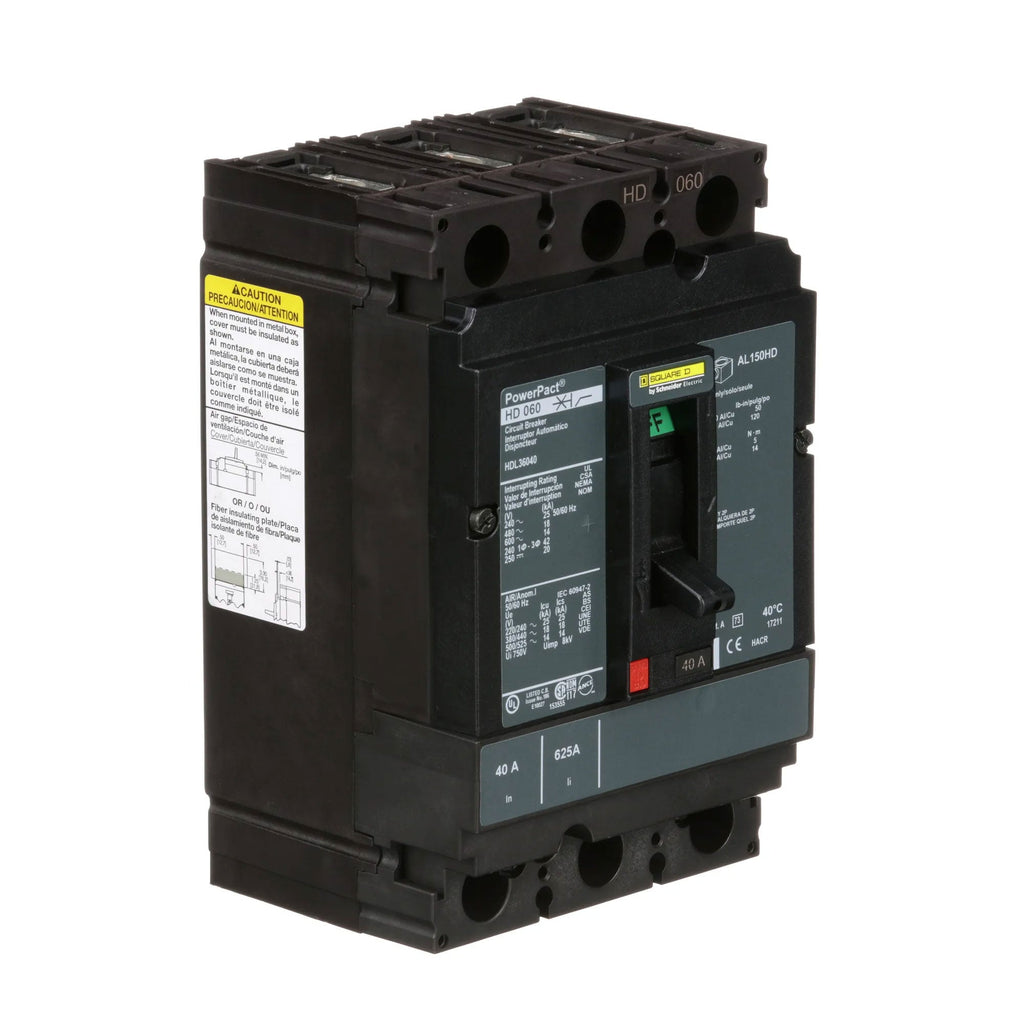

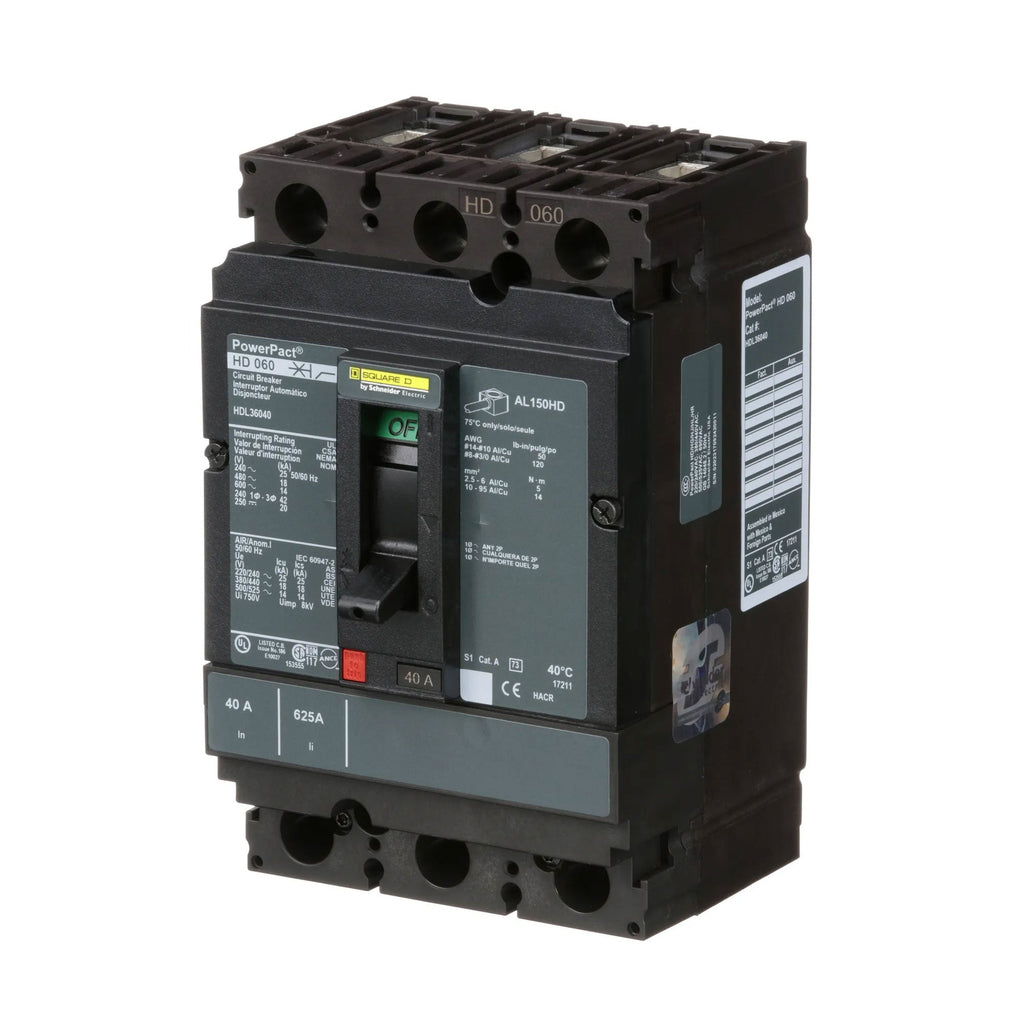

HDL36040 - Square D 40 Amp 600 Volt 3 Pole Thermal Magnetic Molded Case Circuit Breaker H Frame

HDL36040

HDL36040 is a 40 Amp, 600 Volt, 3 Pole thermal magnetic molded case circuit breaker from Square D's PowerPact H frame series.This circuit breaker features a bolt-on mounting type and provides reliable overload and short circuit protection with an interrupt rating of up to 25 kA at 240 VAC and 14 kA at 600 VAC. It is UL listed, CSA certified, IEC rated, and CE marked, ensuring compliance with multiple international standards. The breaker includes line and load lug terminals and supports continuous current rating of 80%.

Key Specifications
• Amperage: 40A
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC
• Frame: H Frame (PowerPact)
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified, IEC Rated, CE Marked
• Terminal Type: Line and Load Lug
• Continuous Current Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901577928
• GTIN : 00785901577928
• Country of Origin : Mexico

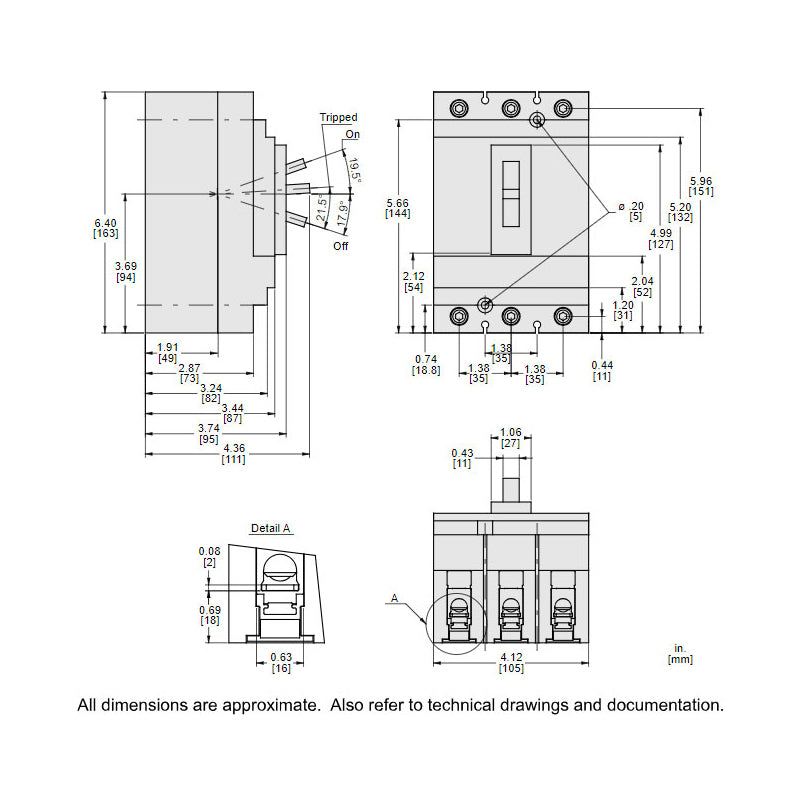

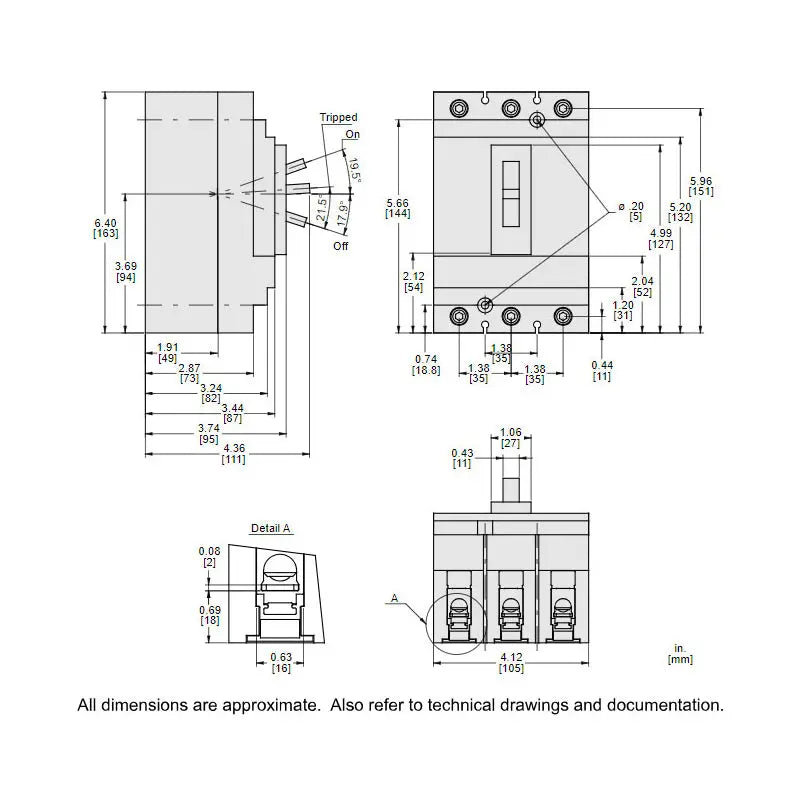

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.101
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
