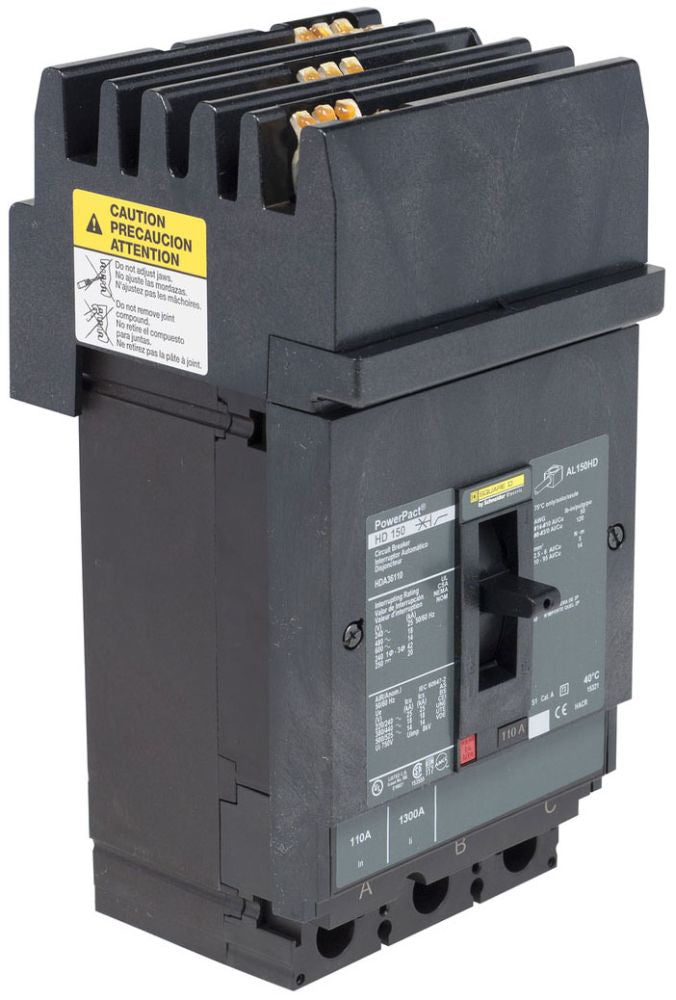

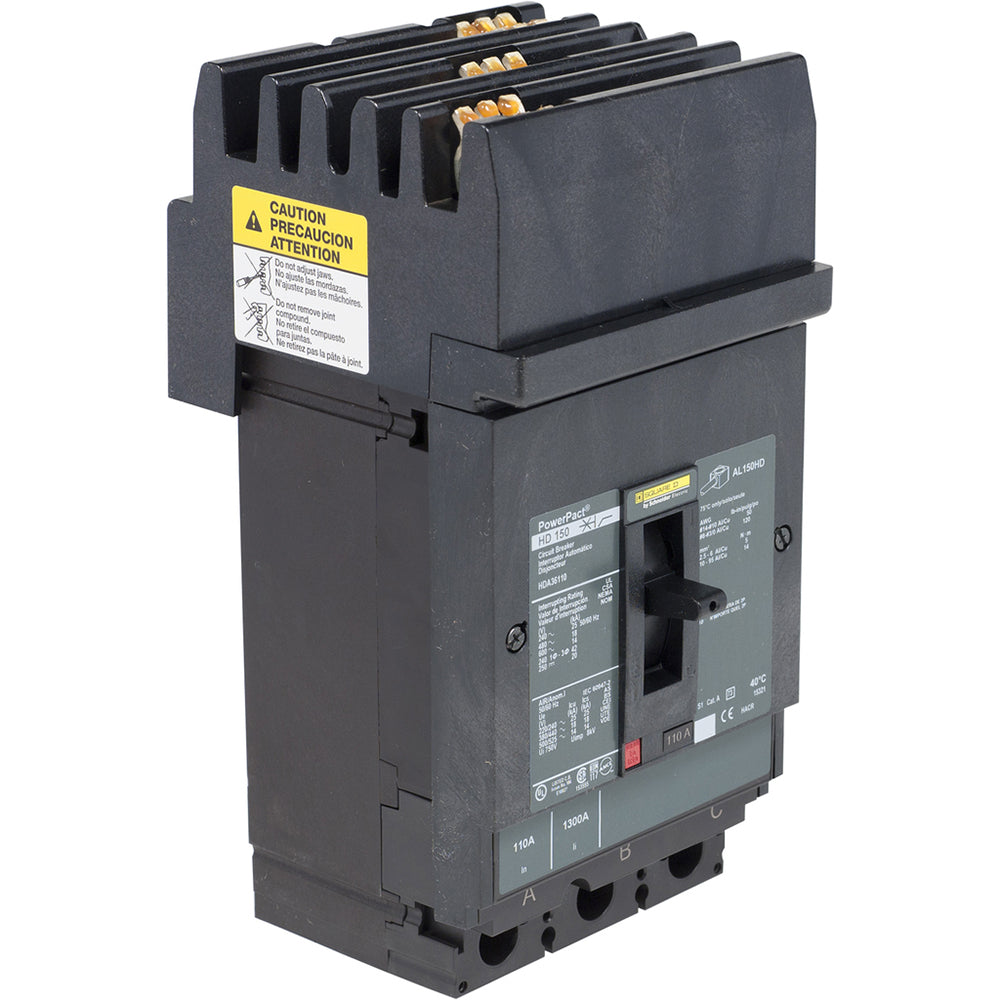

HDA36150U31X - Square D 150A 600VAC 3-Pole Molded Case Circuit Breaker I-Line Plug-In

HDA36150U31X

HDA36150U31X is a 3-pole molded case circuit breaker from Square D designed for reliable power distribution protection.This circuit breaker features a 150 ampere current rating, 600VAC and 250VDC voltage ratings, and an I-Line style plug-in connection. It offers a 14kA interrupting rating at 600VAC and 20kA at 250VDC, with solid state protection including long time and instantaneous trip functions. The breaker supports line and load side lug connections and is compatible with wire gauges from AWG 14 to AWG 3/0 aluminum or copper. It meets UL, CSA, NEMA, NOM, IEC, CE, and RoHS standards.

Key Specifications
• Manufacturer: Square D
• Part Number: HDA36150U31X
• Amperage: 150A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Interrupt Rating: 14kA at 600VAC, 20kA at 250VDC
• Connection Type: I-Line Style Plug-In
• Trip Functions: Long Time and Instantaneous
• Terminal Connection: Line and Load Side Lug
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper
• Certifications: UL, CSA, NEMA, NOM, IEC, CE, RoHS
• Frame Type: HDA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HDA36150U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC



Product Data

• UPC : 785901324409
• GTIN : 00785901324409
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.404 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
